Lush Rack
1 / 5
| Usage | Tool Rack, Beverage, Clothing, Tools, Supermarket, Food, Industrial, Warehouse Rack |
| Material | Steel |
| Structure | Rack |
| Type | Pallet Racking |
| Mobility | Adjustable |
| Height | 5-15m |
| Weight | 1000-2000kg |
| Closed | Open |
| Development | Conventional |
| Serviceability | Common Use |
| Surface Treatment | Powder Coating & Galvanized |
| Color | Blue/Orange/Grey/Yellow or Customized |
| Certificates | AS4084, FEM, ISO9001, CE |
| Thickness | 1.8-3.0mm |
| Transport Package | Standard Export Package |
| Specification | As needed |
| Origin | China |
| HS Code | 73089000 |
| Production Capacity | 10000 ton/Year |

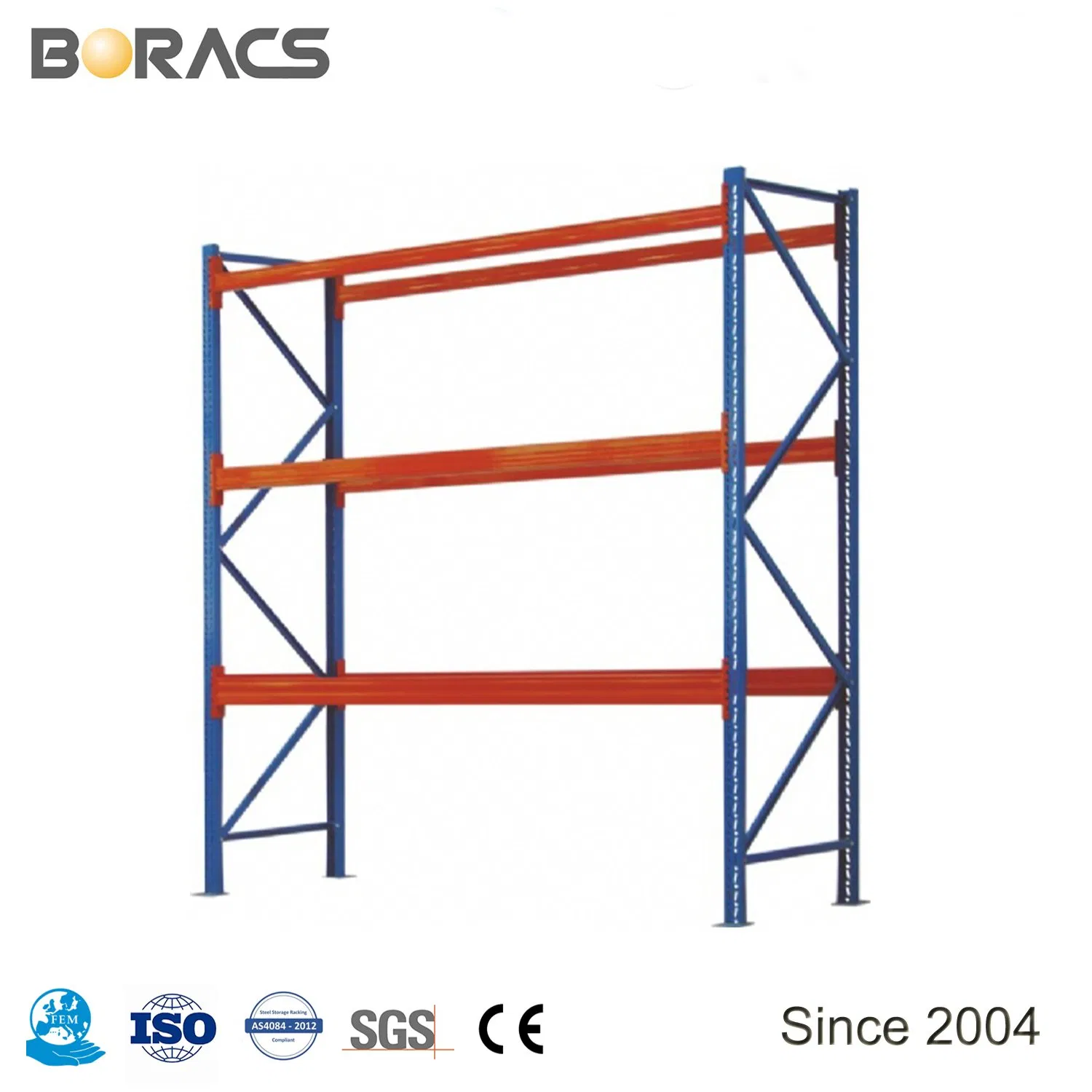

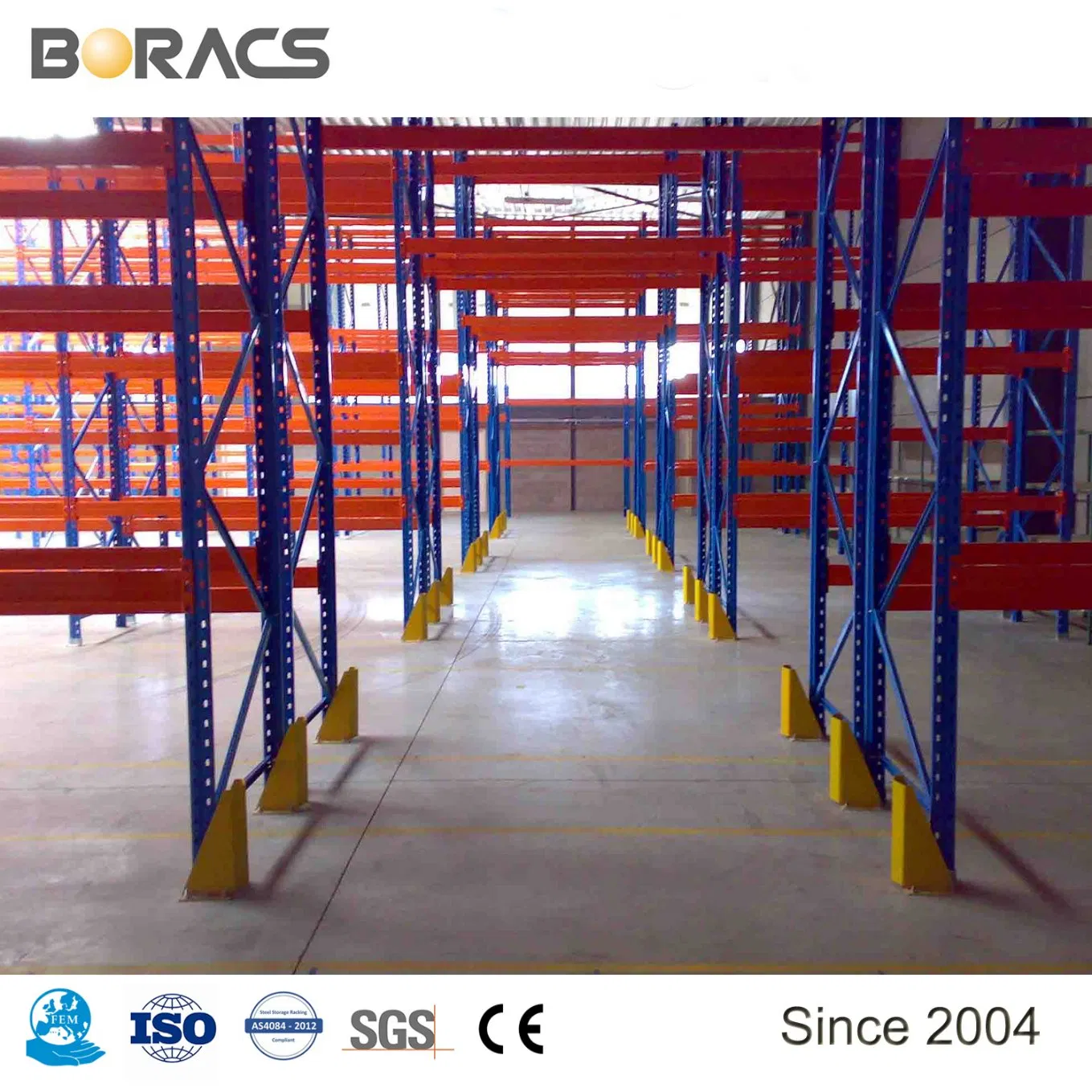

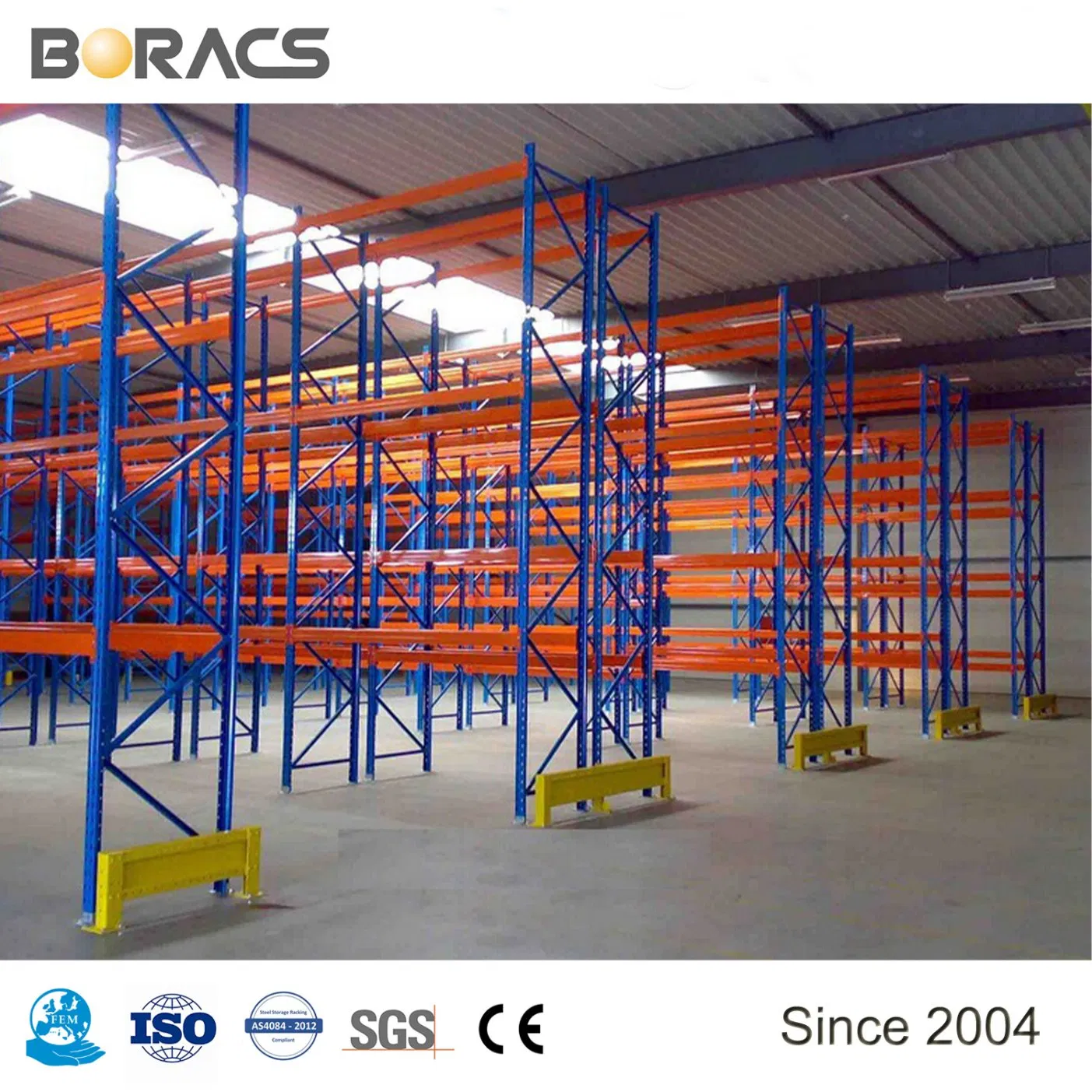

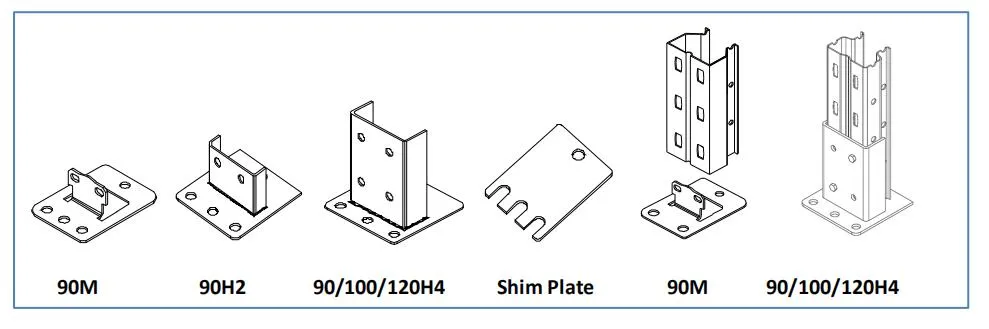

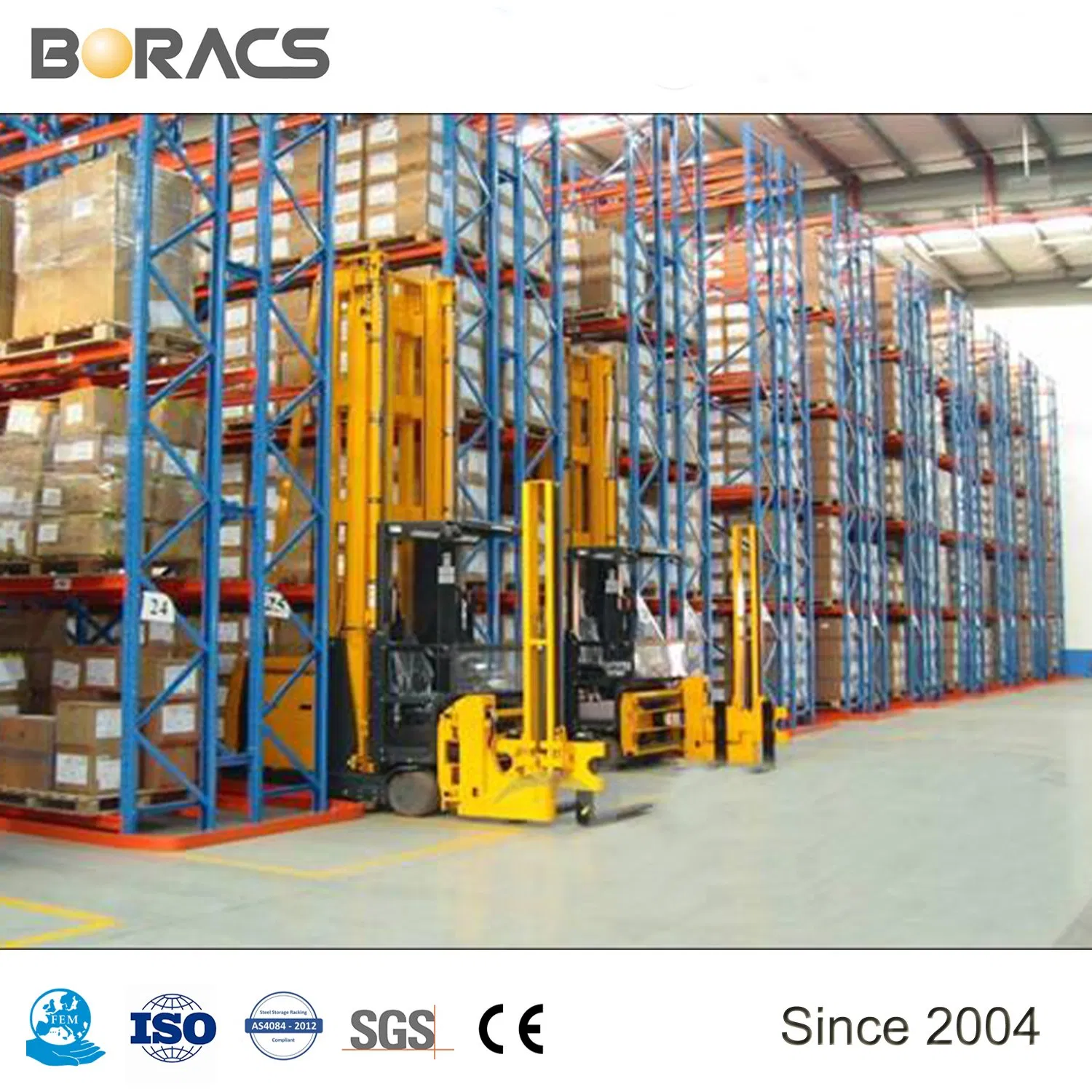

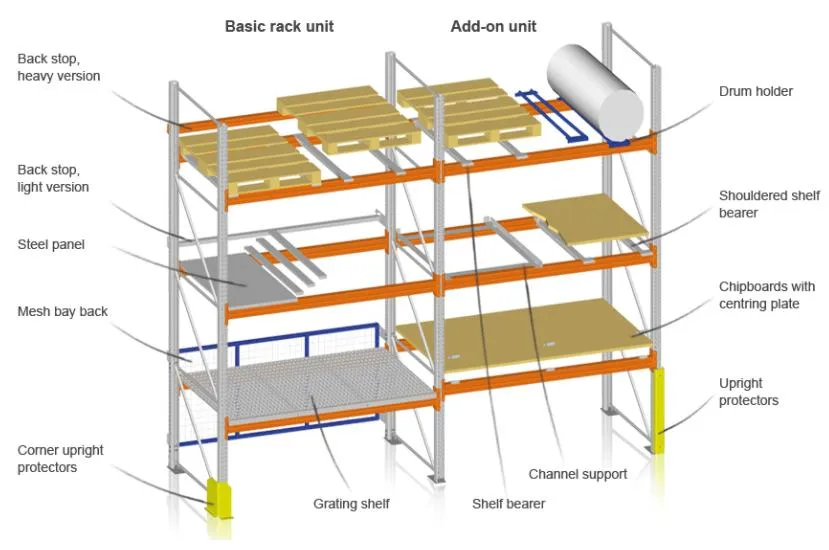

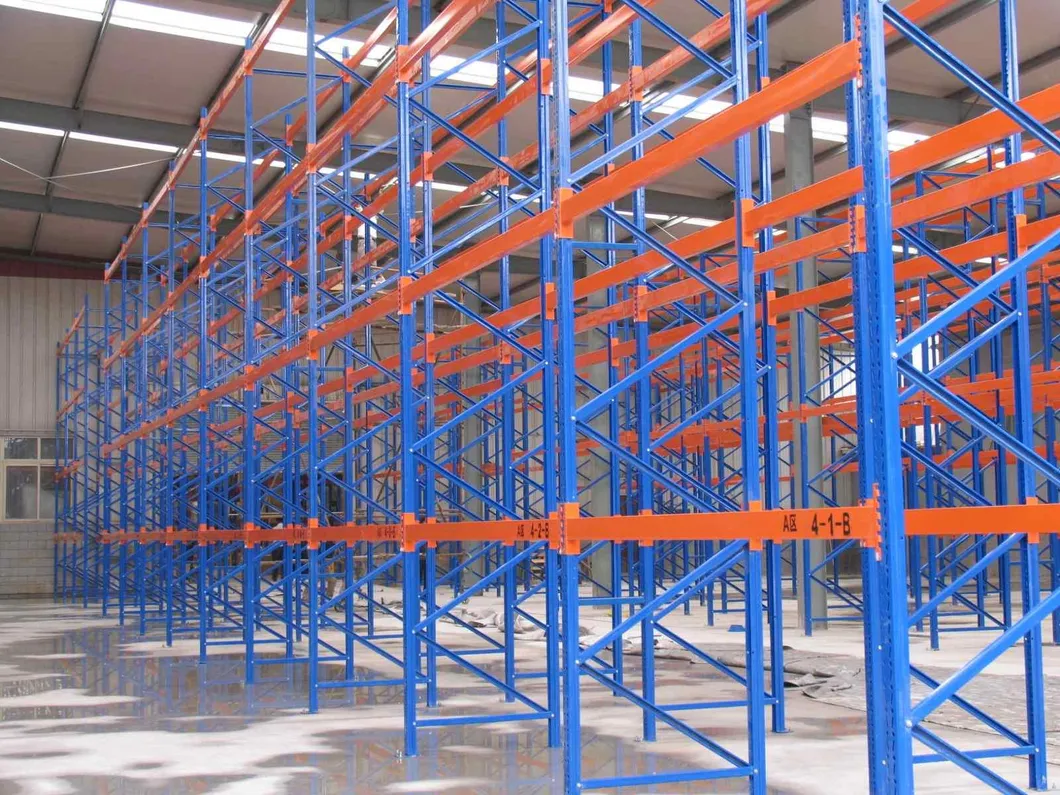

Pallet rack is the most popular racking type. As the best solution for warehouse systems with palletized products, they store a wide variety of goods. The major components of the pallet racking system are upright frames (standard frames consist of two posts, horizontal and diagonal bracings, and footplates) and beams. The pallet rack system is simple but reliable. According to the warehouse turnout situation and loading capacity, there are various specifications and sizes to be chosen.
| Component | Specifications & Details | |
|---|---|---|
| Frame | Height: 2-11.7m | Depth: 600-1,400mm |
| Upright section: 80*60; 90*68; 90*70; 100*75; 120*75mm | ||
| Thickness: 1.8 / 2.0 / 2.3 / 2.5 / 3.0mm | ||
| Beam | Length: 1200-4000mm (Popular sizes: 2300, 2500, 2700, 3200, 3600mm) | |
| Beam section: 80*50; 90*50; 100*50; 110*50; 120*50; 130*50; 140*50mm | ||
| Thickness: 1.5 - 1.8mm | ||
| Load capacity | 1 - 4 Tons/Layer | |
| Others |
Pitch: 75mm, 76.2mm Delivery time: 14-20 days Payment term: T/T or L/C at sight Necessary accessories: Free (bolts & nuts, base plate, etc) Packing: Stretch film & carton Surface treatment: Powder coated, galvanization Production capacity: 3000T/month Main market: Exported to more than 40 countries Available in various colors / specifications / sizes OEM and ODM are available |
|

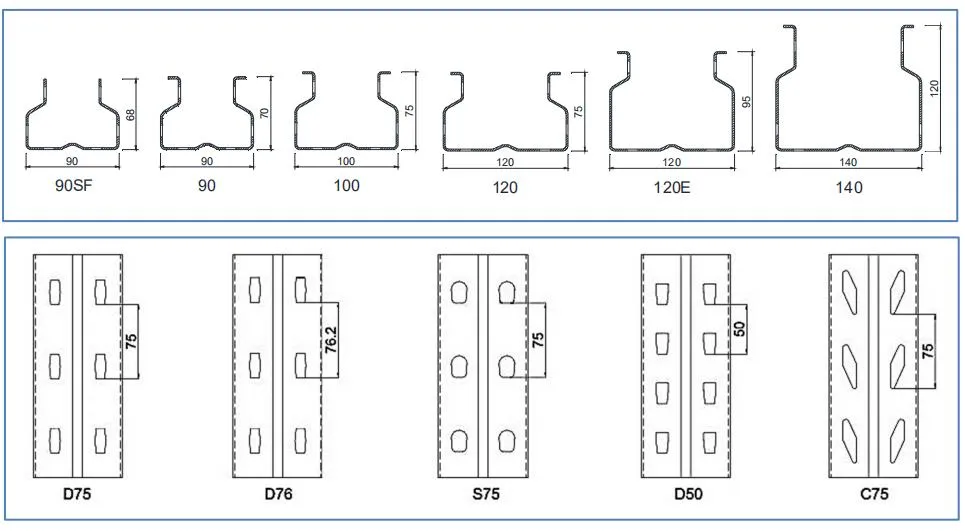

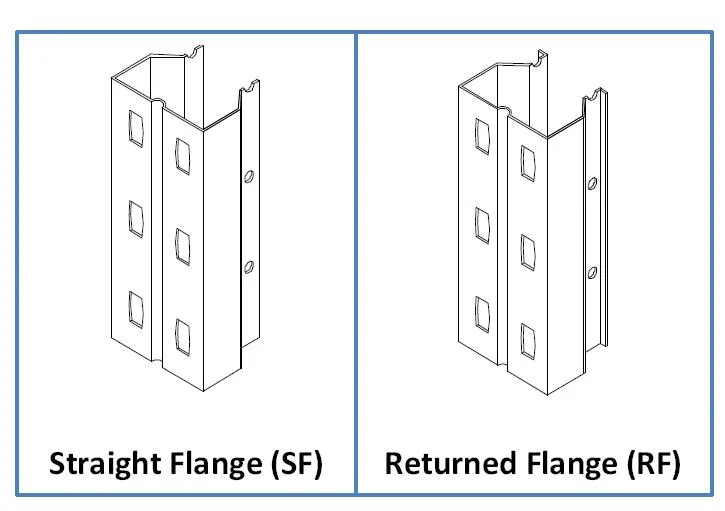

Upright profiles in different sizes, with both Straight Flange and Returned Flange, are roll-formed from high quality steel coils to cater for a wide range of frame load requirements. Hole patterns with Pitch Height 50mm, 75mm, and 76.2mm (3") are available.
Surface Finish: Pre-Galvanised (Pregal), or Powder coated RAL 5015

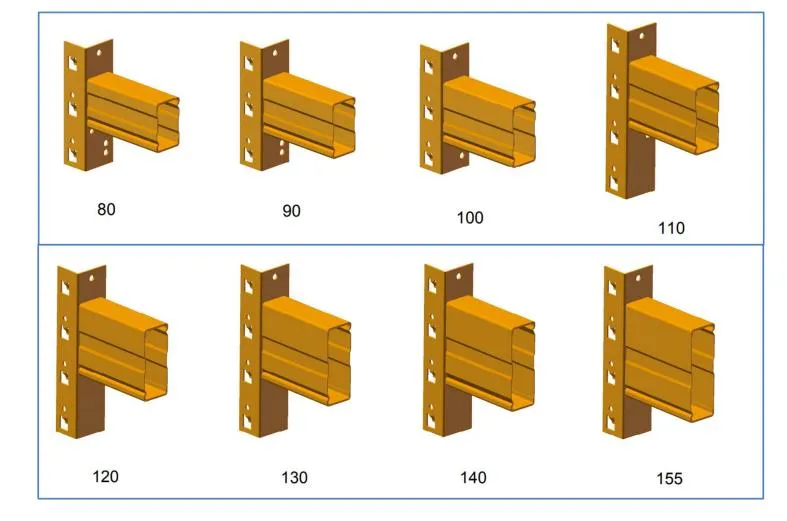

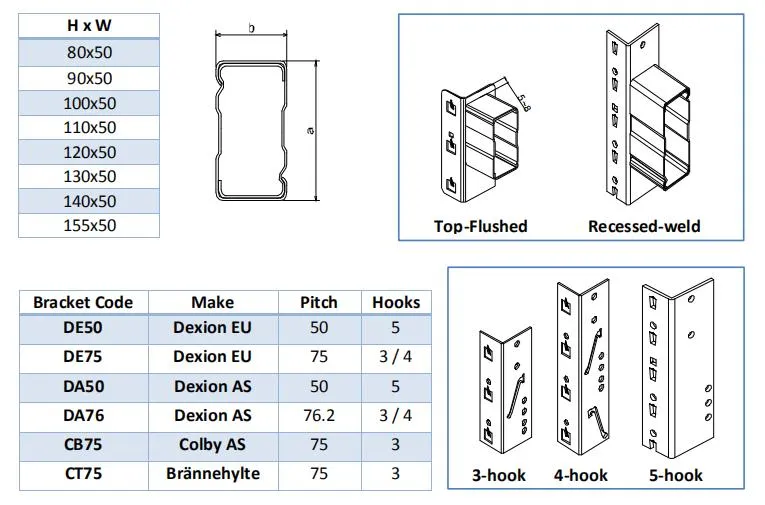

A wide range of Box Beam sizes are available with customized lengths to meet varied pallet sizes and load rating requirements. Several types of beam connector/bracket brands are also available to meet different market needs.

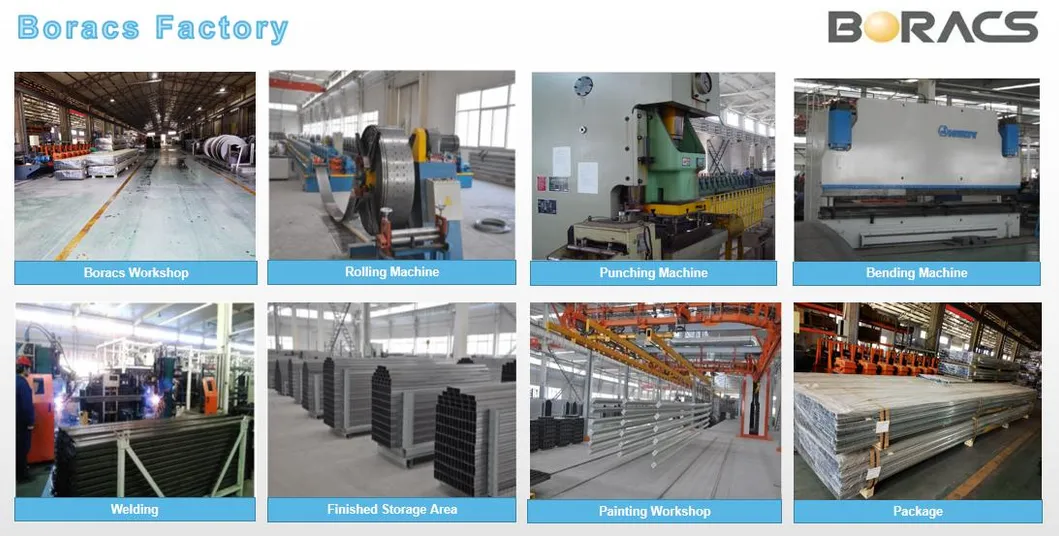

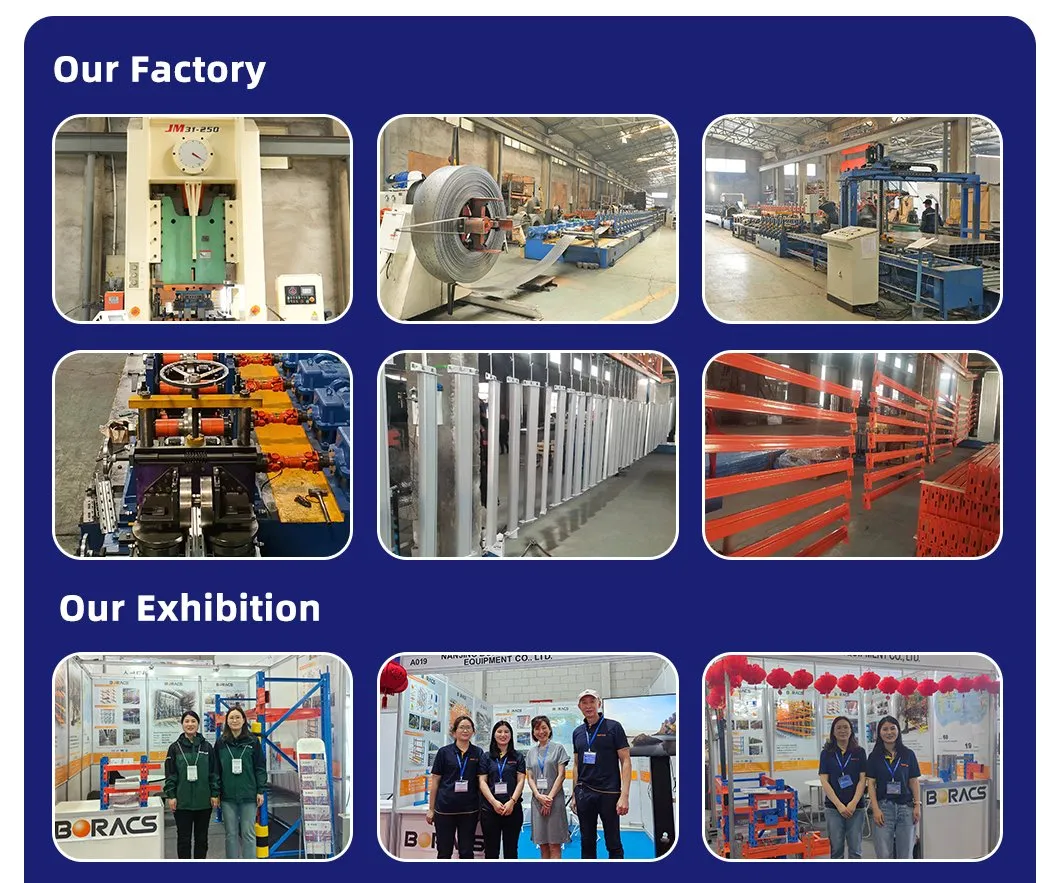

Our manufacturing facility specializes in producing international market racking systems. Over the years, we have achieved successful installations in over 30 countries.
We strive to serve our clients with quality products, competitive prices, and prompt services. Regular tensile and yield strength tests are conducted to ensure that only the best qualified materials are used. The racks are subjected to rigorous tests in compliance with FEM and Australian Standards. Mass production commences only after the First-Piece is checked and signed-off by the qualified person, which is repeated at every stage of production for every order.
| Design | Professional CAD drawing and 3D drawing design |
| Price | Direct factory price |
| Package | Standard export package |
| Payment | T/T, L/C at sight; terms in FOB, CNF, CIF |
| Shipment | FOB or CNF/CIF destination port |
| Quick Delivery | Within 25 days for ordinary order quantities |
| Certification | FEM, AS4084, ISO |
