Explore our premium selection of structural steel pipe storage racks, engineered for extreme durability and ultimate space utilization.
When handling long, bulky, and heavy materials like steel tubes, PVC pipes, timber, and structural panels, traditional storage racks fail to deliver the necessary accessibility and load safety. This is where Pipe Storage Cantilever Racks excel, eliminating front column obstacles to permit seamless loading and unloading by forklifts and overhead cranes.
As a leading industrial racking authority, Nanjing Lush Rack Co., Ltd. specializes in designing, engineering, and manufacturing robust cantilever racking systems tailored to the rigid safety requirements of global industrial warehouses. Whether you are dealing with high-capacity structural tube storage or light-duty plastic piping, our designs optimize volumetric space, control deflections, and protect inventory integrity.
A deep dive into our heavy-duty roll-formed and structural steel engineering specifications.
| Racking Component | Material Standard Options | Typical Profile Dimension | Load Capacity Range | Surface Treatment Options |
|---|---|---|---|---|
| Upright Columns | Q235B / Q355B Steel | 200×80 to 450×150 mm | Up to 15,000 kg / Column | Electrostatic Powder Coat / Galvanized |
| Cantilever Arms | C-Profile or I-Beam Steel | 80×50 to 180×100 mm | 500 kg to 3,500 kg / Arm | Powder Coated / Hot-Dip Galvanized |
| Heavy Duty Base | Structural Welded Steel | Sized to match column size | Equivalent to system load | Matches column finish |
| Bracing Systems | Angle & Tubular Steel | L50×50 to Tubular Φ32 | Wind & Seismic stability | Galvanized / Powder Coated |
Deflection & Stability Criteria: Our structural calculations strictly align with ANSI/RMI MH16.3 and FEM 10.2.09 codes. When computing deflection limit states for pipe storage systems, our structural engineers evaluate the critical L/d ratio (length of arm to deflection ratio). For safety, the maximum arm deflection under uniform loads is restricted to L/200. Additionally, vertical columns are calculated considering P-Delta effects, ensuring zero danger of buckling under unbalanced loading distributions (e.g., loading one side of a double-sided rack fully while the other side is empty).
Nanjing Lush Rack Co., Ltd. operates a vertically integrated production plant with state-of-the-art automated equipment to ensure precise tolerances and fast delivery.
High-precision automatic CNC saws cut raw structural profile beams to design lengths with tolerances within ±0.5mm.
Specialized alignment jigs and professional welders secure the structural connection plates to crossbeams with deep penetration welds.
Solid base plate welding guarantees vertical stability, creating a rigid connection to withstand heavy horizontal structural moments.
Precision robotic welding and structural inspections ensure column uprights maintain alignment for heavy-duty pins.
Electrostatic spray lines apply a durable protective coat that is cured at 200°C for exceptional impact, scratch, and corrosion resistance.
Strategic bundling with bubble wraps, cardboard edges, and steel strapping prevents surface damage during ocean transit.
Advanced automatic cutting machines accelerate cycle times and guarantee dimensional uniformity across large-scale batches.
Heavy-duty industrial shearing machinery optimizes raw steel sheet utilization and creates clean, burr-free edges.
High-efficiency automated submerged arc welding systems generate continuous, reliable, gas-bubble-free weld lines.
Certified welding specialists manually handle complex joints and customized bracket points to ensure robust bond strength.
Automated heavy stretch wrapping machinery prepares palletized uprights and arms for containerization and weatherproofing.
How our cantilever racking solutions solve specific materials storage pain points across industrial sectors.

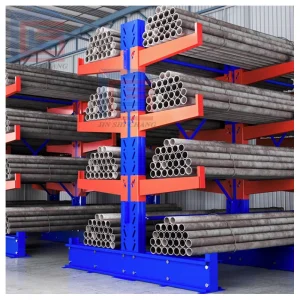

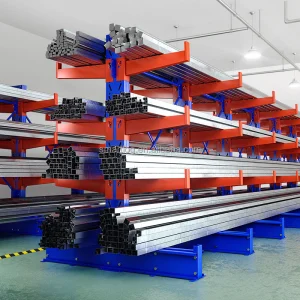

Heavy structural steel tubes, H-beams, solid bars, and flat metal plates require high capacity per linear meter. Our I-beam structural cantilever systems handle massive point loads without bending, ensuring rapid crane loading.
From lumber packs to PVC piping, inventory is highly dynamic. Adjustable arm locking configurations allow warehouse operators to rapidly modify spacing heights as inventory seasonal volumes swing.
Storing drill pipes, conduits, and heavy pipelines outdoors demands heavy weatherproofing. Our hot-dip galvanized coating processes guarantee decades of rust-free and structural service life even in marine or chemical environments.
For global procurement managers, the initial purchase price of racking is only one piece of the economic puzzle. True value lies in maximizing warehouse floor efficiency, minimizing installation labor, and avoiding catastrophic racking structural failures.
At Nanjing Lush Rack Co., Ltd., we design cantilever systems with a focus on structural longevity and fast assembly. By providing detailed structural calculation books, pre-engineered connection brackets, and precise floor anchor planning, we drastically reduce on-site installation timelines and contractor overheads.
Integrating Smart Technology, Automation, and Material Handling Logistics.

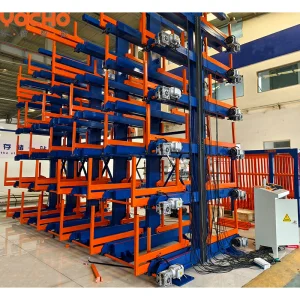

Future-proof warehouses are adopting motorized telescopic cantilever systems. At the press of a button, heavy arms slide out horizontally, enabling overhead hoists and bridge cranes to pick long steel tubes vertically, reducing forklift turning radius space constraints.
To avoid forklift impact damage or overloading, smart cantilever systems can be embedded with stress/strain gauges. These IoT nodes track load values in real time, alerting warehouse managers of unsafe deflection anomalies.
Our structures feature standardized structural tolerances designed to match Automated Guided Vehicles (AGV) laser guidance corridors. Highly accurate spacing parameters guarantee seamless retrieval by robotic reach stackers.
Deploying heavy-duty racking requires adhering to local safety building regulations. As an experienced exporter, Nanjing Lush Rack Co., Ltd. builds systems in strict compliance with the following international structural codes:
We work in tandem with regional engineering firms to supply stamped structural calculations and layout drawings, smoothing the pathway for building permitting processes.
Our engineering team is equipped with advanced structural modeling software to execute finite element analysis (FEA) on complex layouts. This guarantees that your cantilever racking configuration handles wind loads, seismic forces, and unbalanced material placement safely over decades of heavy service.
"Quality storage is the backbone of operational throughput. We build racks that protect your assets, your bottom line, and your personnel."

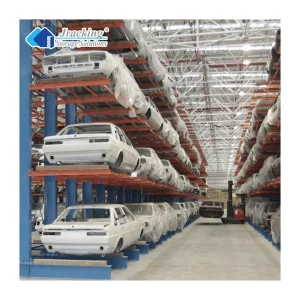

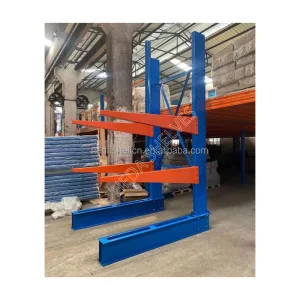

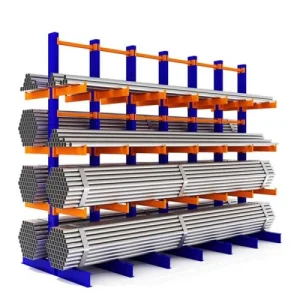

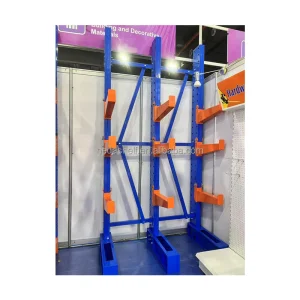

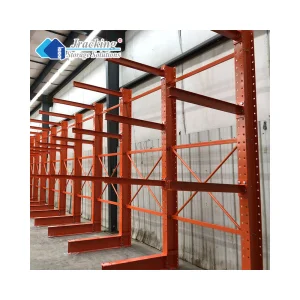

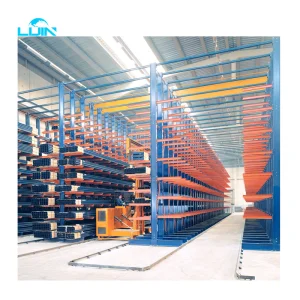

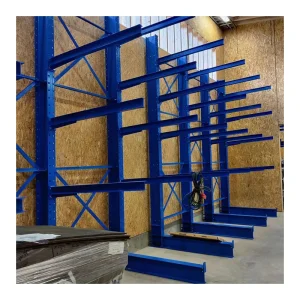

Discover customized light-duty and heavy-duty designs for lumber, tubing, sheeting, and outdoor industrial yards.
Get answers to critical technical questions regarding the structural design, compliance, and custom fabrication of pipe storage racks.
To calculate the load ratings, we require the total weight of the bundles, length of the pipe bundle, outer diameter of the pipes, the number of pipe tiers, and your forklift clearance constraints. Additionally, let us know if the racks will be located outdoors to incorporate wind and snow load parameters.
Structural steel (I-Beam profiles) offers vastly superior impact resistance and higher load capacities, making it perfect for heavy-duty, high-impact industrial operations. Roll-formed steel is more economical for light to medium-duty loads (e.g., plastic tubing or lightweight profiles) and can be adjusted quickly.
We weld or bolt vertical pipe stops (removable pins or fixed plates) at the tip of the cantilever arms. These protrude up to 150mm above the horizontal arm plane, completely containing tubular loads and eliminating roll-off hazard risks.
For outdoor installations exposed to rain, UV, and humidity, hot-dip galvanizing (HDG) per ASTM A123 is highly recommended. For indoor installations, a durable polyester electrostatic powder coating provides a cost-effective, scratch-resistant finish.
