Construction Wire Mesh, Protecting Mesh, Cages, Decorative Mesh
Color
Galvanized
Type
Wire Mesh
Certification
ISO9001
Condition
New
Wire Guage
5.0-6.0mm
Wire Grid
50*100, 50*50
Finish
Galvanized
Size
Tailor Made
Transport Package
Pallets
Specification
50*100 grid, 5-6mm Dia, tailor made
HS Code
73089000
Production Capacity
300,000 Pieces Per Year
Product Description

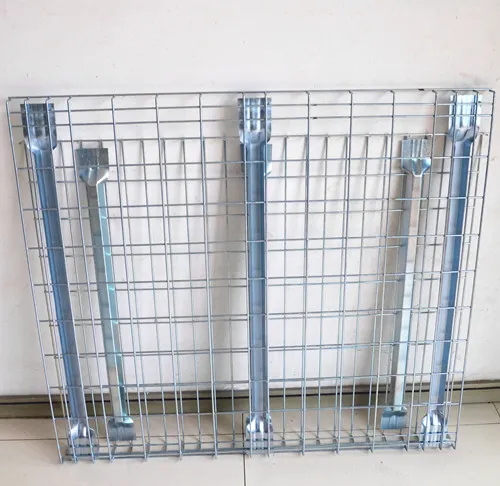

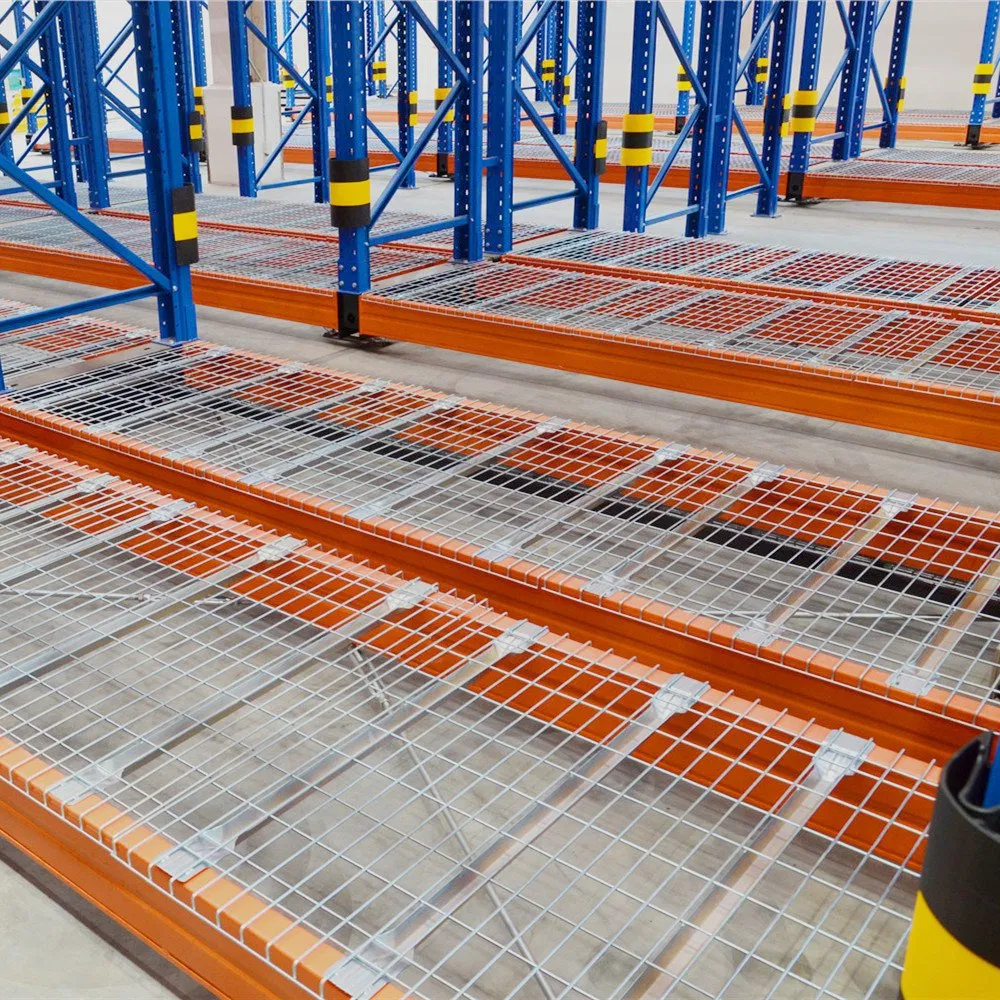

Storage Rack Heavy Duty Wire Mesh Deck is widely used in conventional pallet racking. The mesh size can be customized, with a typical wire gauge of 5.0mm to 6.0mm. The grid configurations can be selected in 50*50mm, 50*100mm, or 25*100mm. The underneath support bar features a 2mm thickness cold-formed steel plate.
Available finishes include hot-dip galvanized or powder coating. This wire mesh decking strictly conforms to fire regulations, ensuring that goods stored on the beams are secured safely while preventing items from falling off the racks.

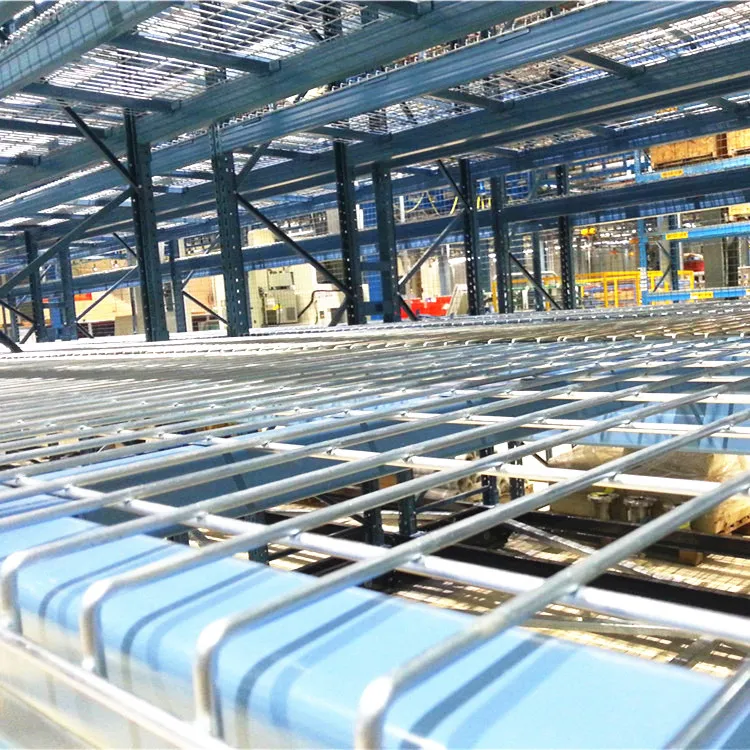

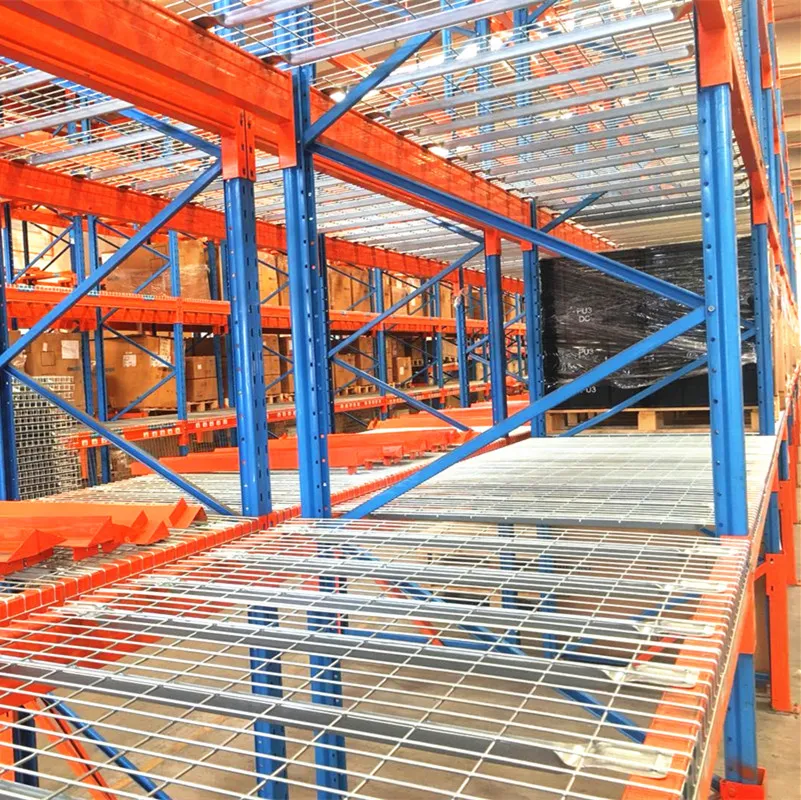

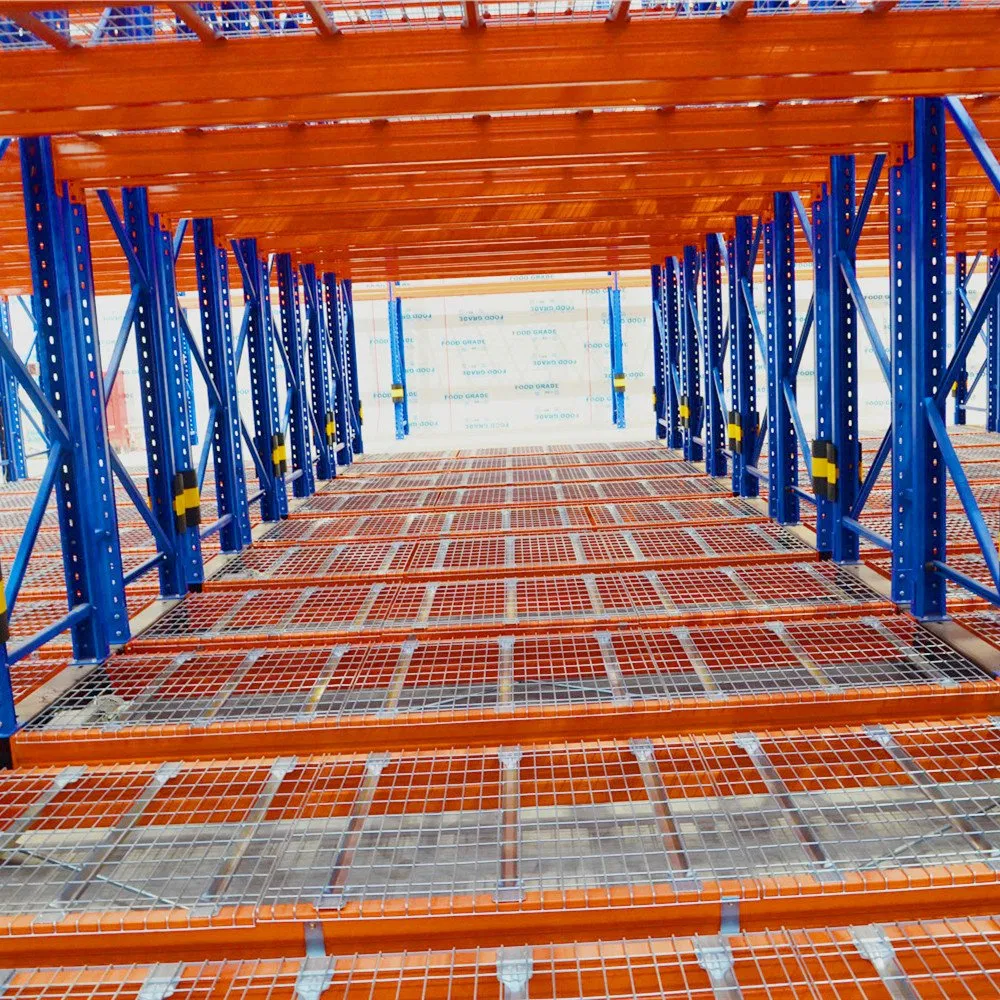

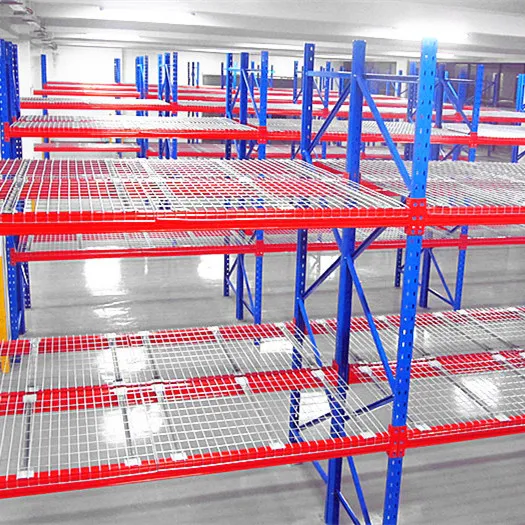

Widely implemented as safety decking panels for conventional pallet racking systems, these decks provide superior fire safety performance. Additionally, they improve illumination and access for warehouse operations, permitting the flexible storage of skids, pallets, or small parts in any position.
Product Specifications
Model
Length (mm)
Depth (mm)
Wire Dia (mm)
Mesh (mm)
Supports (pcs)
Capacity (kgs)
Flared wire deck
1000, 1050, 1100, 1150, 1250, 1350
840, 900, 1050, 1100, 1200
4.0, 5.0, 5.5, 6.0
25*100 50*50 50*100
2, 3, 4
500, 1000, 1500
Key Benefits & Advantages
Safer: Better fire safety performance, meeting stringent insurance requirements.
More Durable: Highly durable construct and completely maintenance-free.
Hygienic: Open grid design prevents dirt or dust build-up.
Easy to Handle: Quick and easy installation without the need for fixings or fasteners.
Improve Visibility: Increases overhead lighting and accessibility for warehouse operators.
Versatile: Ideal for all storage conditions, including coolrooms and freezers.
Flexible: Allows you to store skids, pallets, or small parts in any rack location.
Frequently Asked Questions
What are the standard wire gauges and grid sizes available?
The wire gauge for the Heavy Duty Wire Mesh Deck is usually 5.0mm to 6.0mm. Standard grid sizes include 50*50mm, 50*100mm, and 25*100mm. Custom sizes can also be tailor-made to your specific requirements.
What finishes are provided for safety and durability?
We offer hot-dip galvanized and powder coating finishes. These options prevent rust and corrosion, ensuring long-term durability in different storage environments, including coolrooms and freezers.
How does the wire mesh deck improve warehouse safety?
The wire mesh decking conforms to standard fire regulations, allowing water from sprinklers to flow through easily. It also prevents smaller items, skids, or damaged pallets from falling through the rack beams.
What is the loading capacity of these wire decks?
Depending on the configurations, the loading capacities range from 500kg, 1000kg, to 1500kg. The capacity is reinforced using 2, 3, or 4 support channels constructed from 2mm cold-formed steel plates.
Is installation complicated for the wire mesh decking?

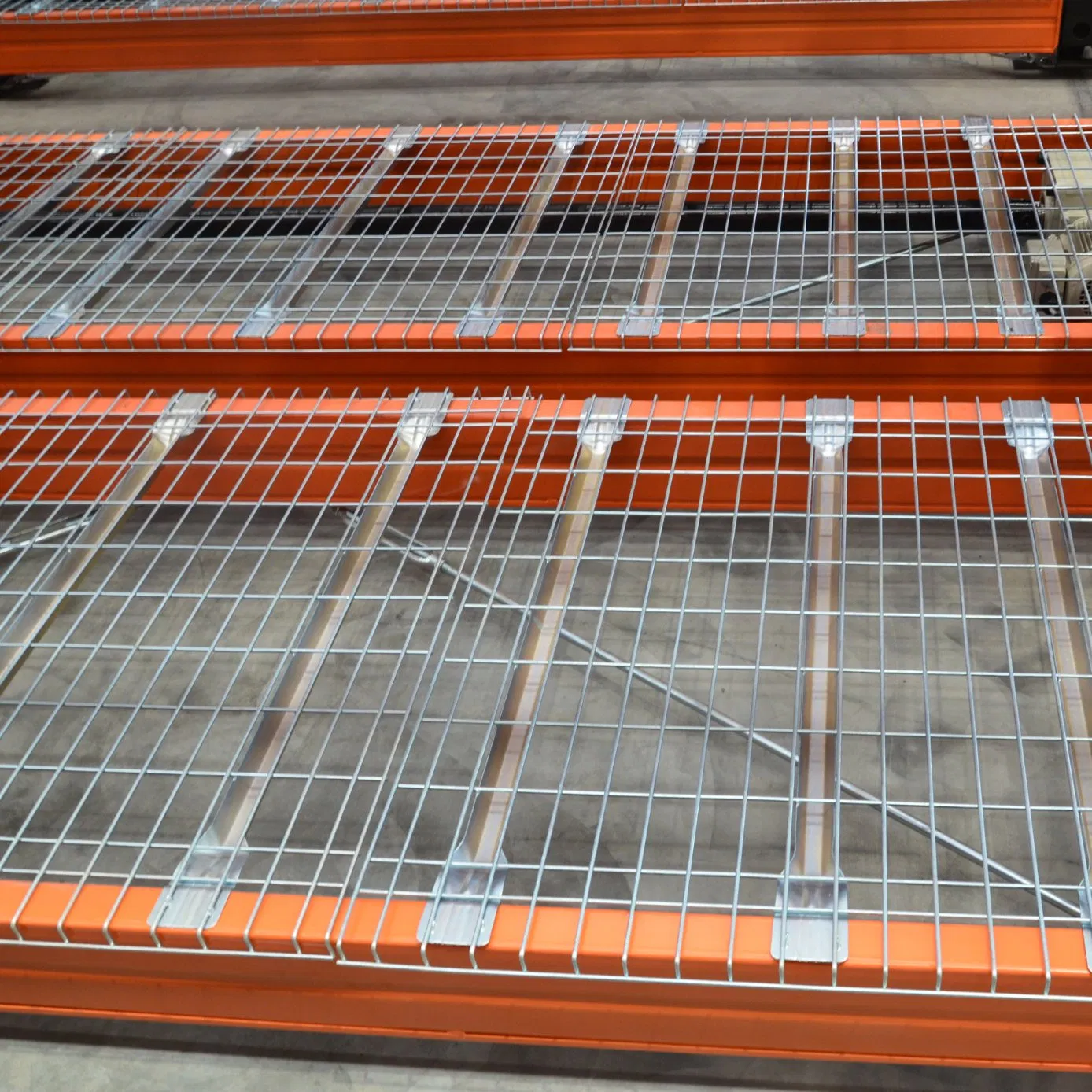

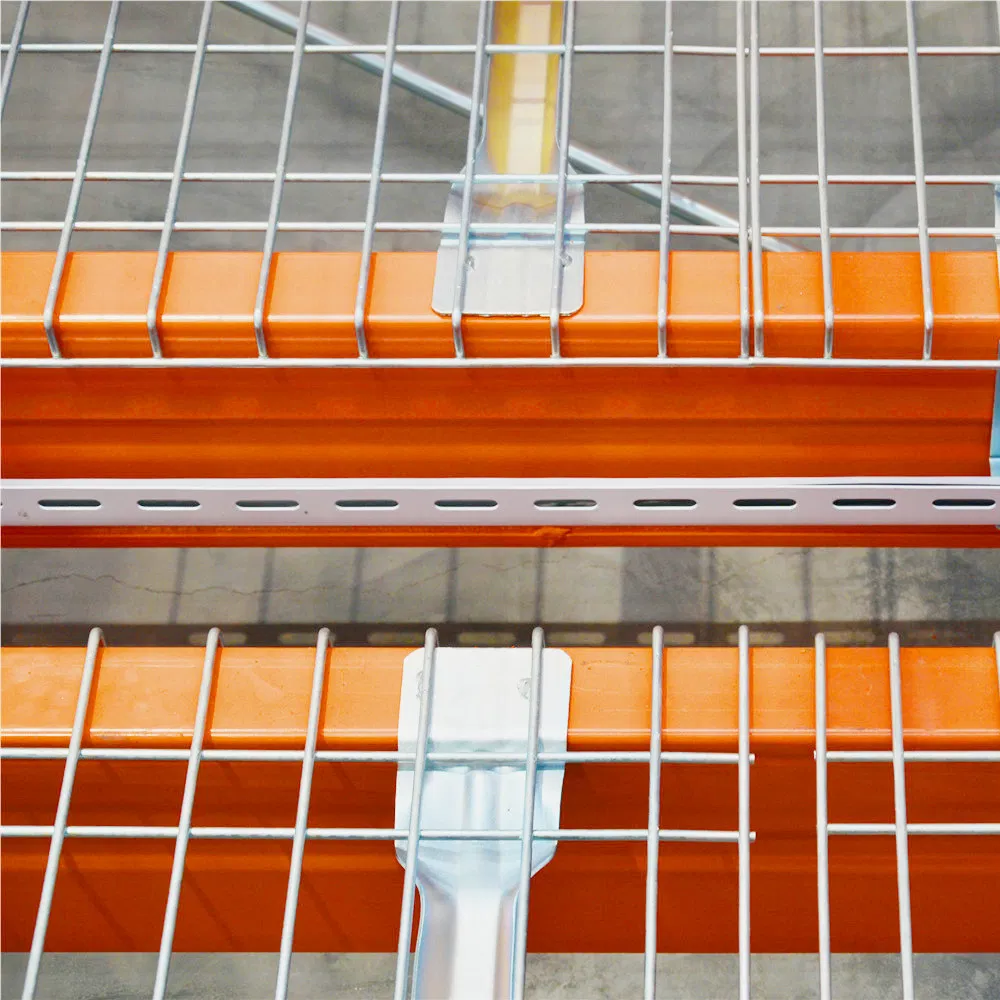

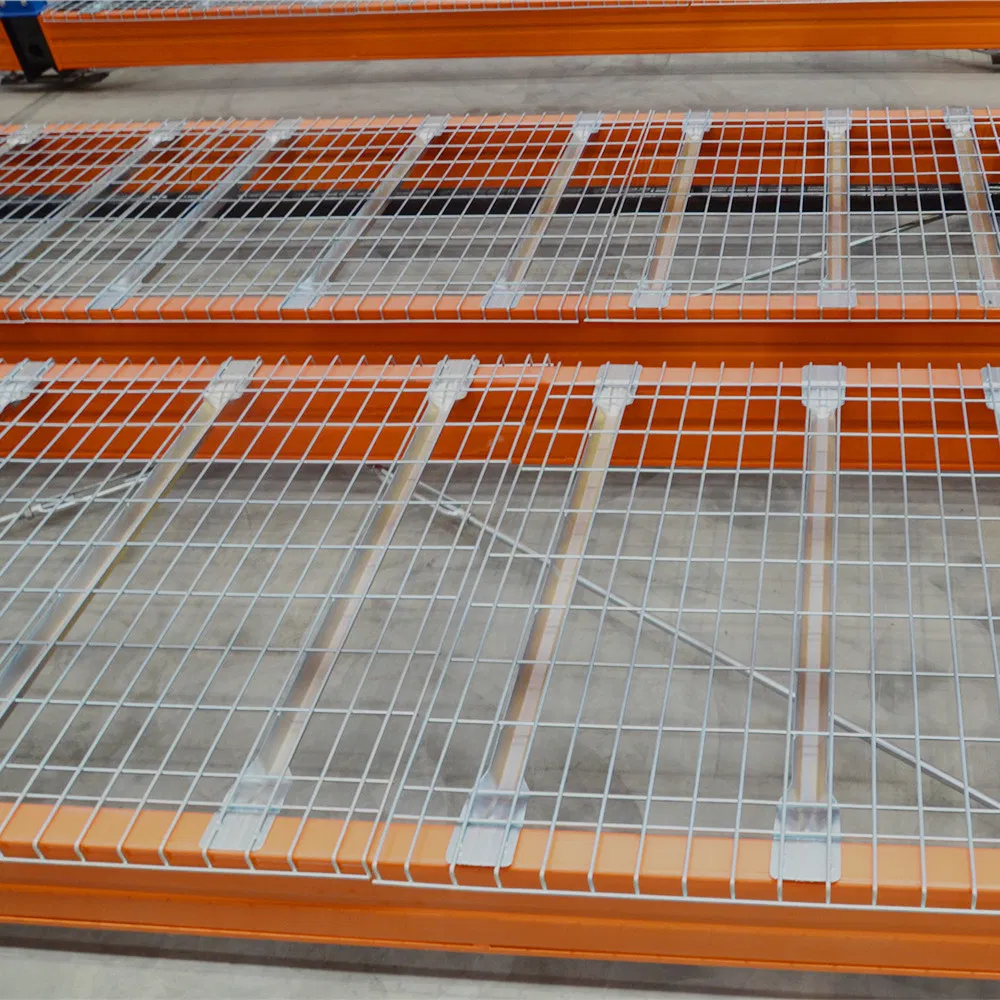

No, it is quick and simple. The flared design drops easily over the racking beams with no fixing or fastening required, making them highly efficient to set up or relocate.
