Lush Rack
1 / 5
| Model | Length (mm) | Depth (mm) | Wire Dia (mm) | Mesh (mm) | Supports (pcs) | Capacity (kgs) |
|---|---|---|---|---|---|---|
| Flared wire deck | 1000, 1050, 1100, 1150, 1250, 1350 | 840, 900, 1050, 1100, 1200 | 4.0, 5.0, 5.5, 6.0 | 25*100 50*50 50*100 |
2, 3, 4 | 500, 1000, 1500 |
A1: Wire mesh decking offers superior fire safety by allowing sprinkler water to flow through, improves visibility and lighting in the warehouse, prevents dust accumulation, and is easier to install without fasteners.
A2: The wire gauge generally ranges from 5.0mm to 6.0mm. Common grid configurations include 50*50mm, 50*100mm, and 25*100mm, all of which can be customized based on requirements.

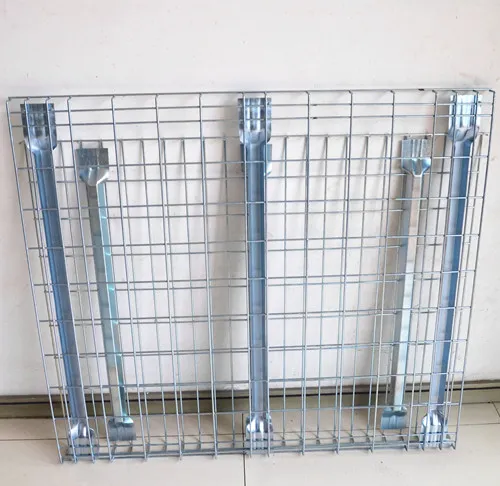

A3: The standard capacity ranges from 500kg up to 1500kg. This strength is reinforced by 2 to 4 underneath cold-formed support channels made of 2mm thick steel plate.
A4: Yes, we provide tailor-made options. The dimensions, wire diameters, and load capabilities can be fully customized to match your specific pallet racking layout.
A5: We provide hot-dip galvanized and high-quality powder coating options. Both finishes offer exceptional corrosion resistance, making them ideal for heavy industrial use or cold storage environments.
