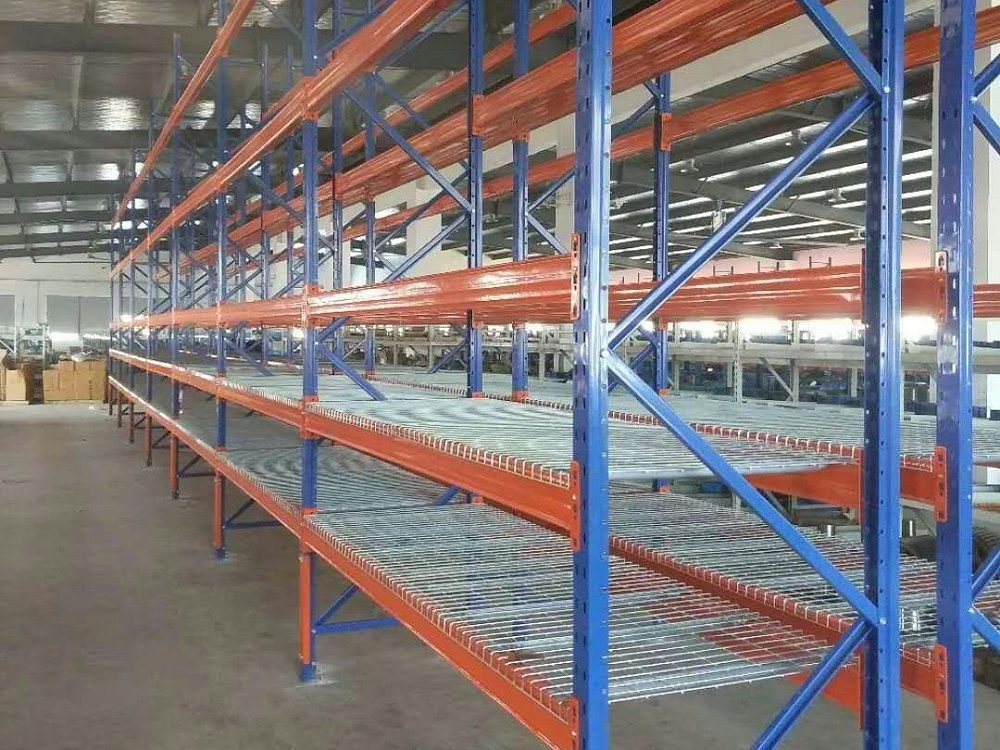

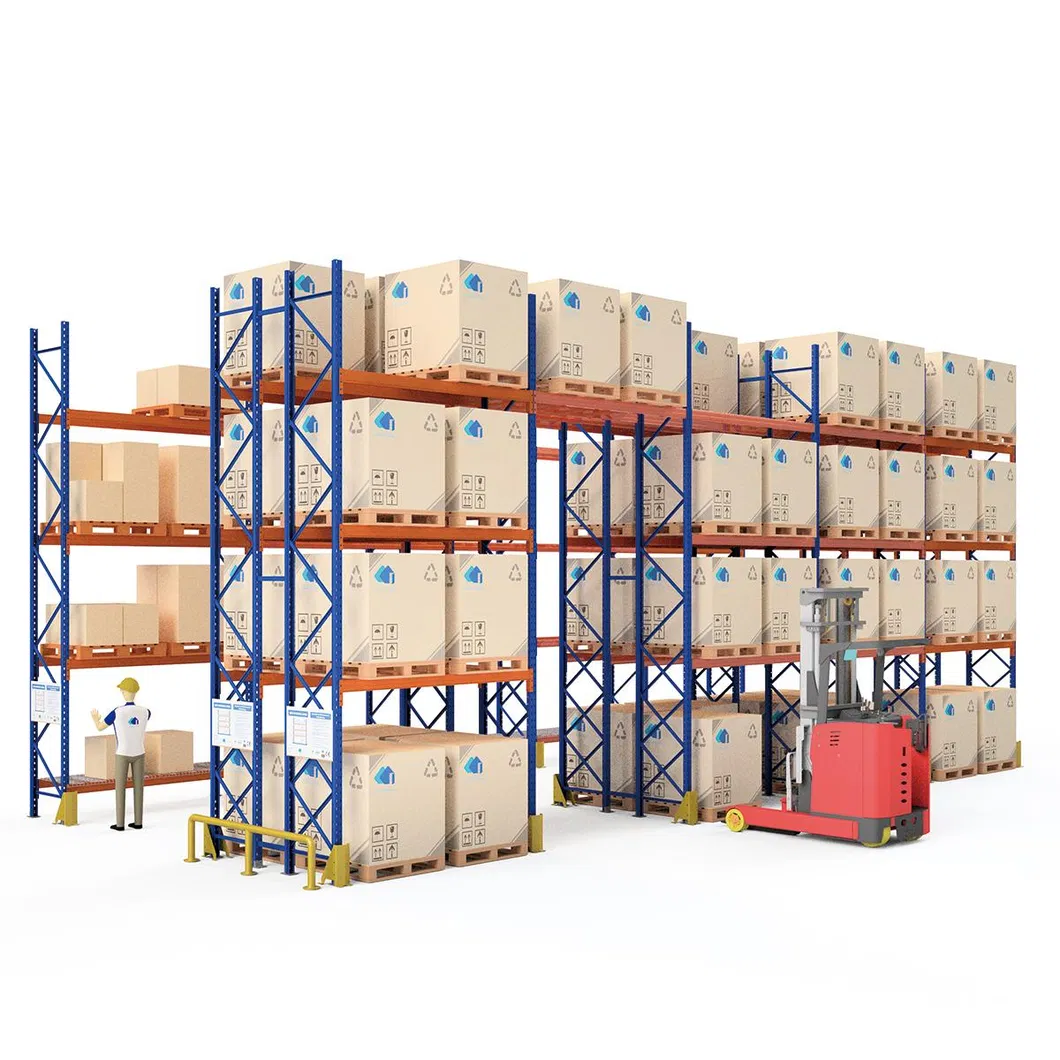

Selective pallet rack is composed of columns, beams, and standard accessories, making it the simplest structure and the most widely used rack. Using pallets as storage units, combined with forklift loading and unloading, it is flexible and efficient. It is highly suitable for the storage of goods with multiple varieties and large batches.
A pallet racking system is a highly efficient storage solution designed for organized, high-density warehousing. It maximizes vertical and horizontal space utilization while ensuring easy access to goods. Below are its key features, advantages, and applications:

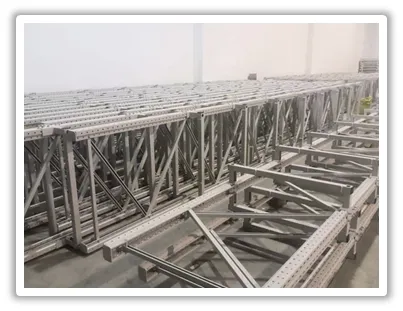

Frame Components: Upright Frames (vertical steel columns with adjustable connection points) & Load Beams (horizontal support beams).
Adjustability: Beam heights can be reconfigured to accommodate varying load sizes easily.
Material: High-strength steel with anti-corrosion coatings for durability.
Space Optimization: Utilizes vertical space efficiently, ideal for high ceilings.
Accessibility & Scalability: Compatible with forklifts for quick loading. Modular design allows expansion.

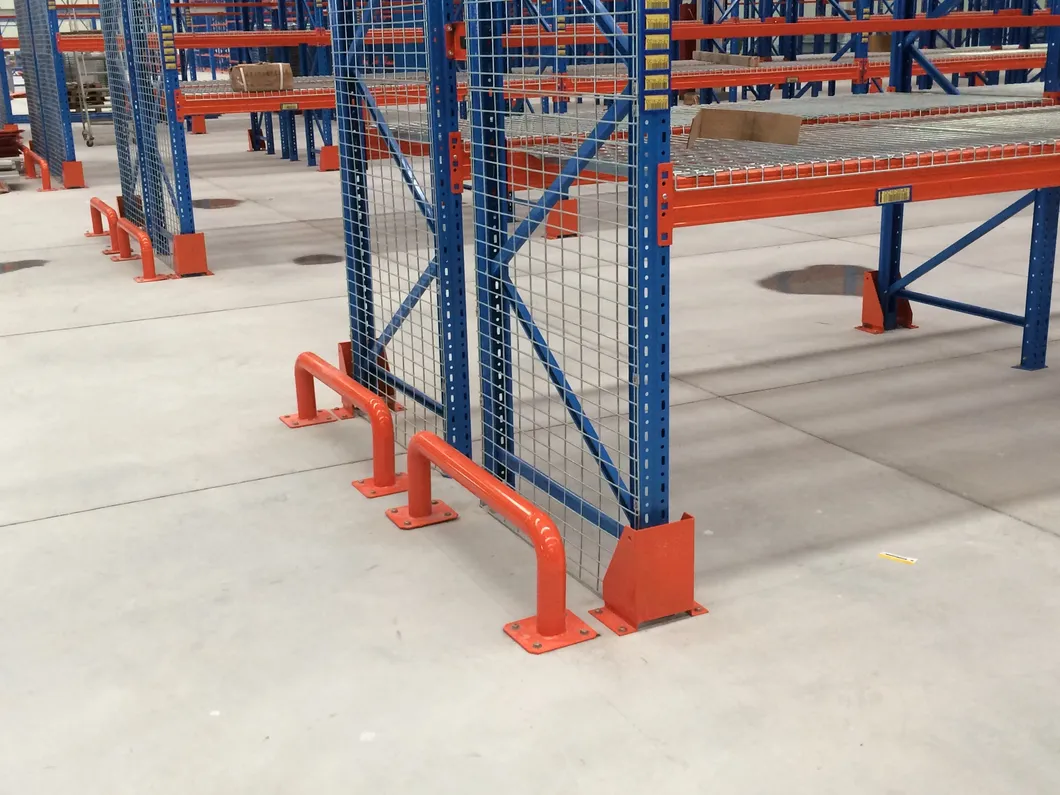

Safety: Engineered for heavy loads with optional safety guards and anti-collapse mesh.

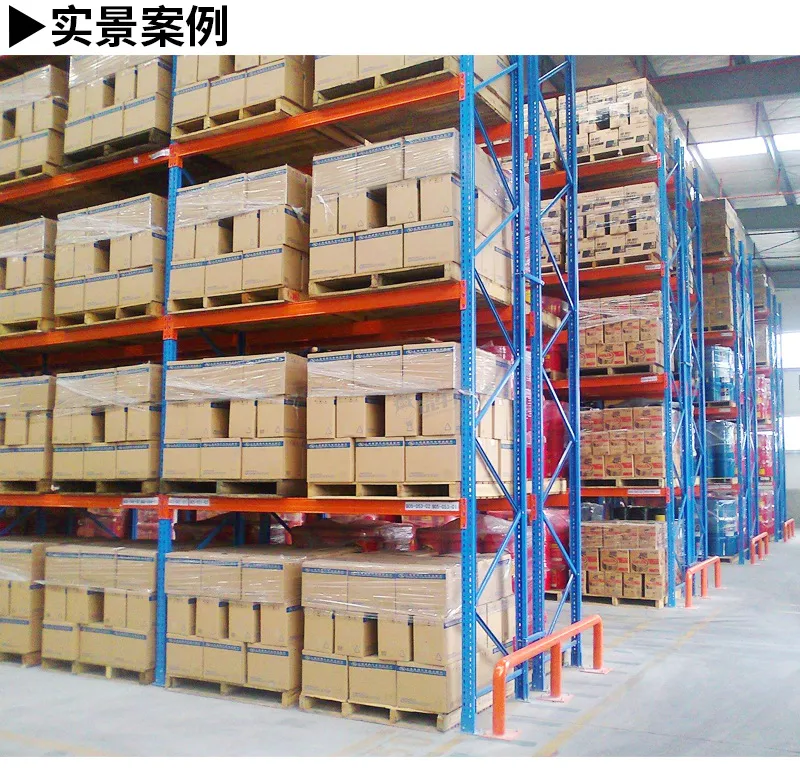

Warehousing: Bulk storage for manufacturing, retail, or 3PL facilities.
Cold Storage: Fully compatible with temperature-controlled environments.
E-commerce & Industrial: Supports fast-paced order picking, inventory rotation, and heavy components.
| Beam section size | Beam thickness | Beam material | Beam load capacity (*) |
|---|---|---|---|
| 80*50B | 1.3 1.5 1.8 2.0 |
Q235B Q235D |
800Kg |
| 100*50B | 1200Kg | ||
| 120*50B | 1500Kg | ||
| 140*50B | 1900Kg | ||
| 160*50B | 2300Kg |
* The load capacity of the beam is calculated by a 1.4 factor of safety, 2.4m long, and L/250 deflection.
Note: The specific project shall be subject to the actual quotation.

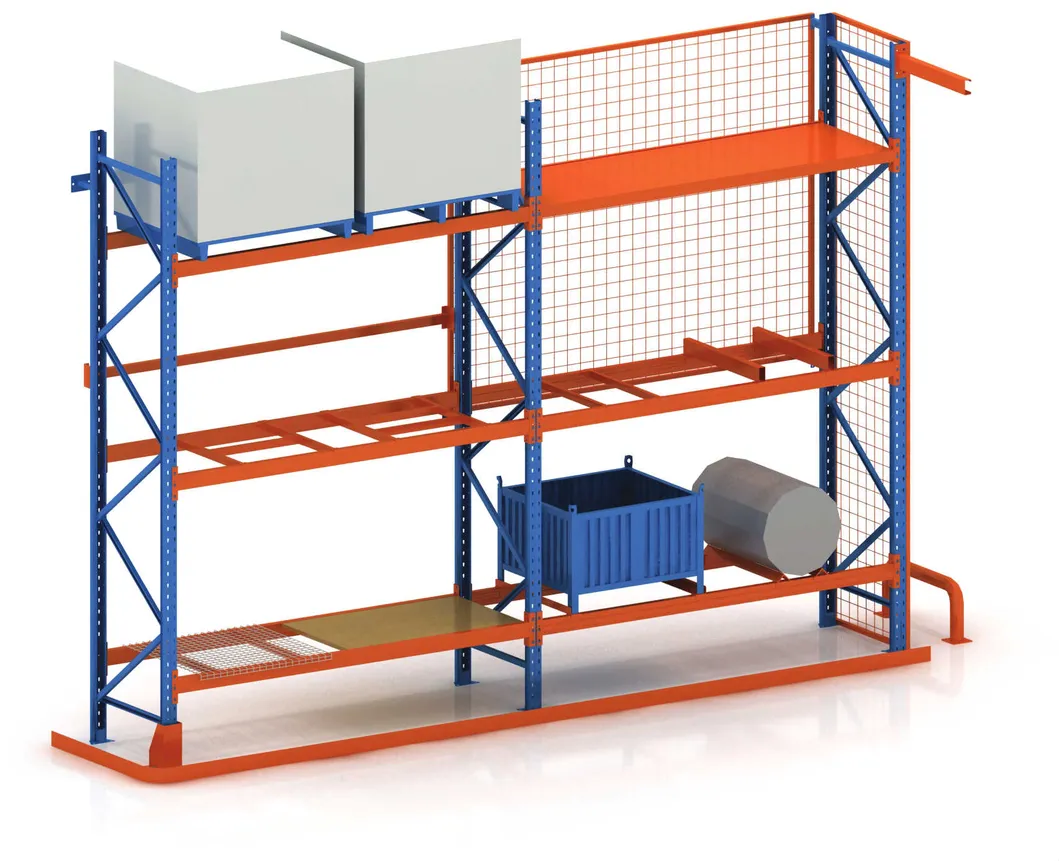

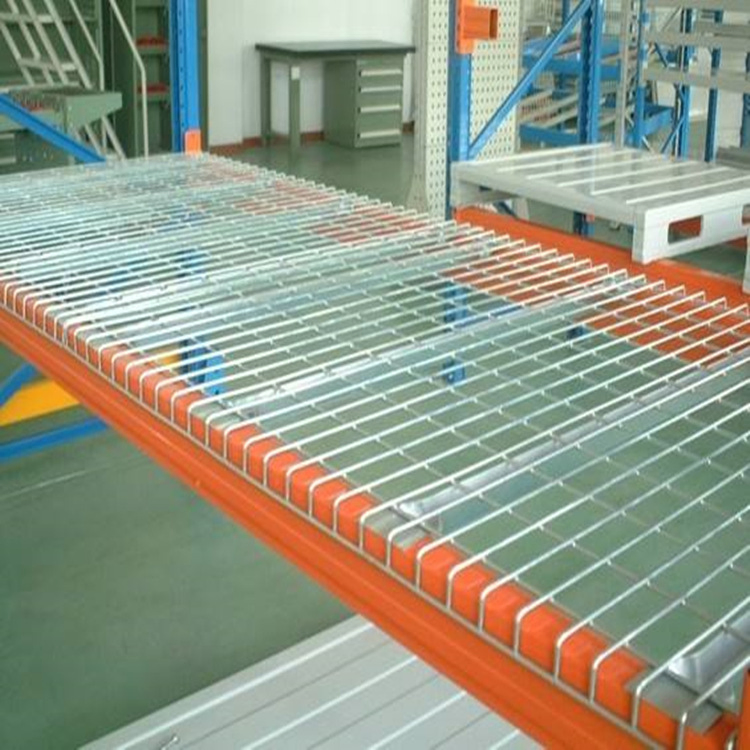

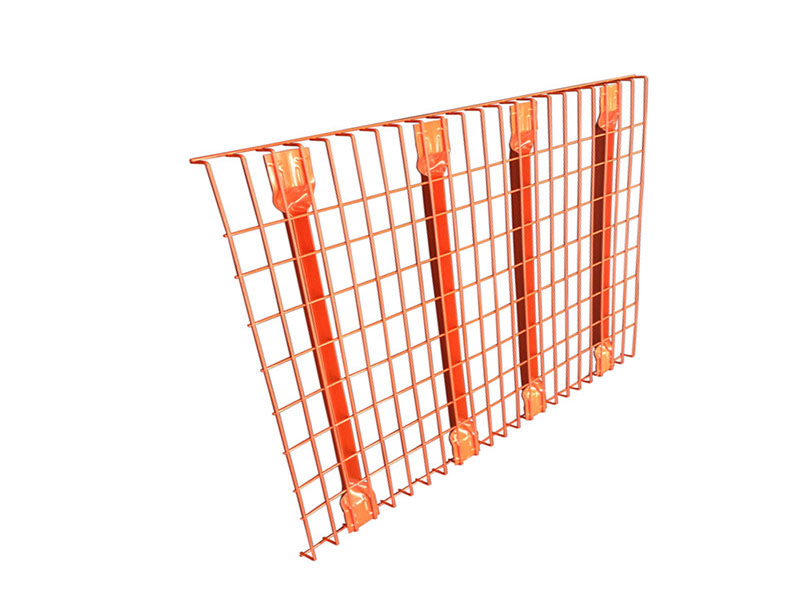

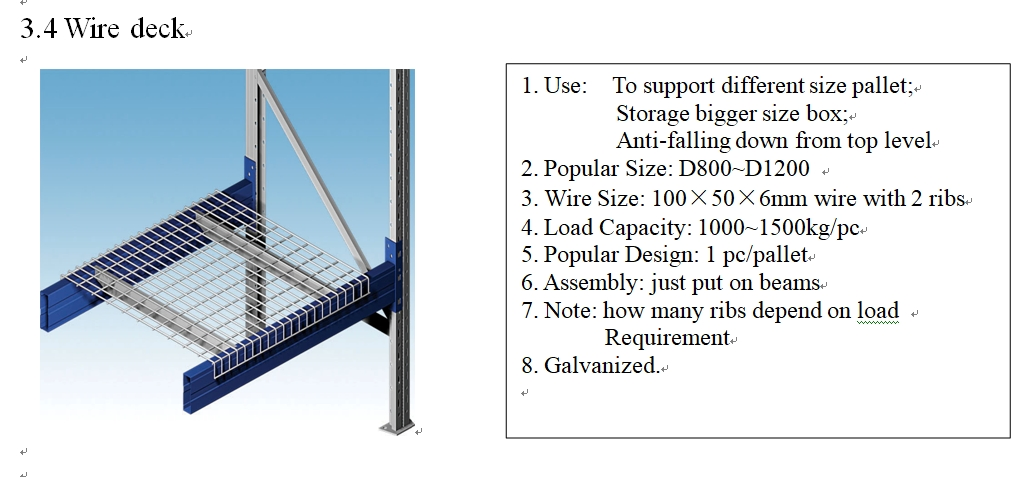

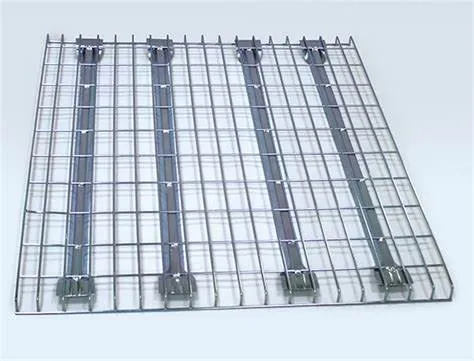

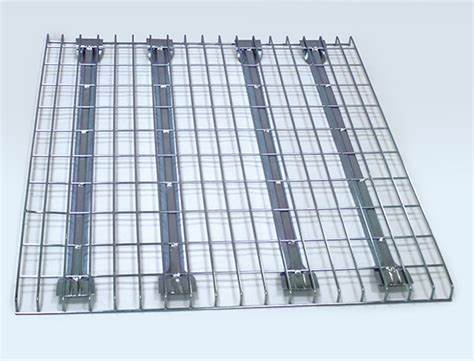

Selective pallet rack systems are primarily composed of upright columns, load support beams, and standard accessories such as pallet supports or safety wire decking.

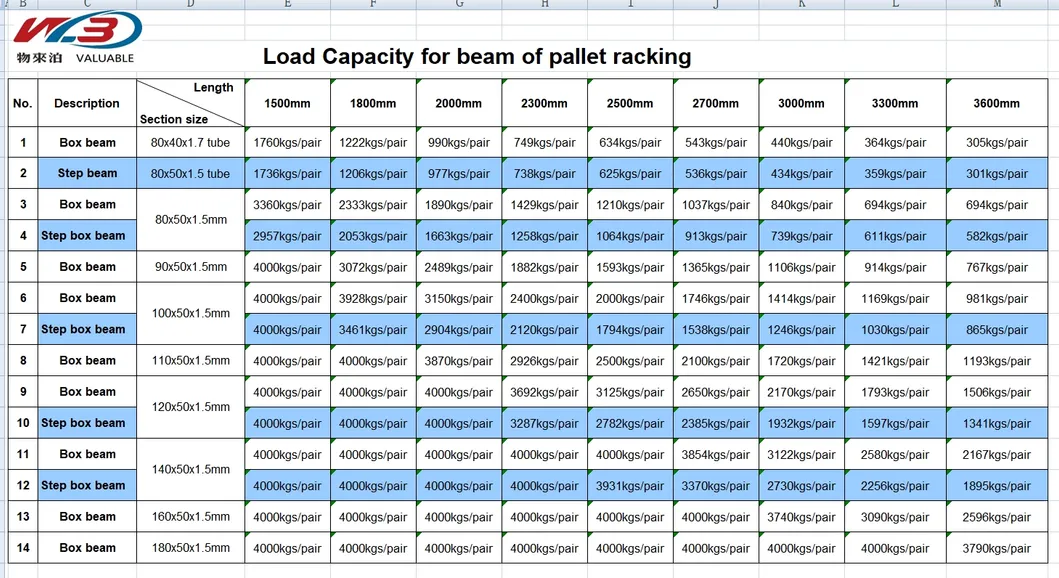

The load capacity varies from 800Kg to 2300Kg per level based on the beam section size and thickness (ranging from 1.3mm to 2.0mm). Custom configurations are available depending on project specifications.
Our racking designs meet rigorous international safety standards including OSHA, FEM, and SEMA, and the load calculations incorporate a 1.4 factor of safety.
Yes. The vertical steel columns feature adjustable connection points, allowing you to easily reposition the load beams to accommodate boxes, pallets, or bulk items of varying heights.
They are highly popular in general warehousing, cold storage, fast-paced e-commerce fulfillment hubs, and heavy industrial settings where direct access to every pallet is critical.
The structural components are fabricated using high-strength steel grades Q235B and Q235D, finished with protective anti-corrosion coatings to ensure durability in industrial environments.
