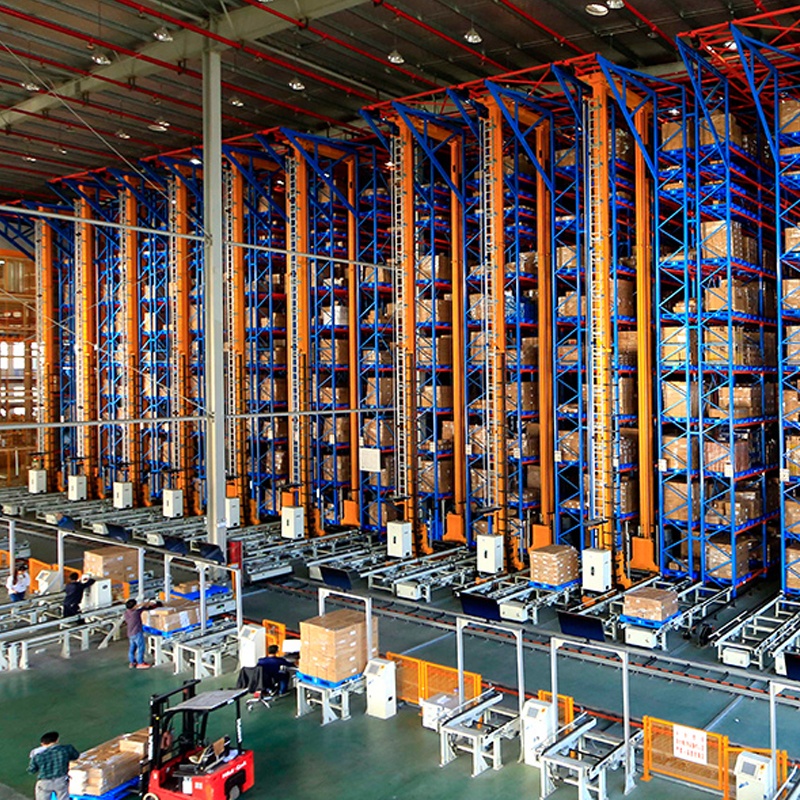

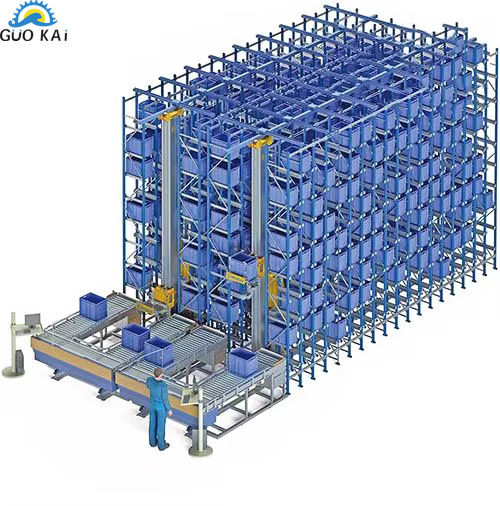

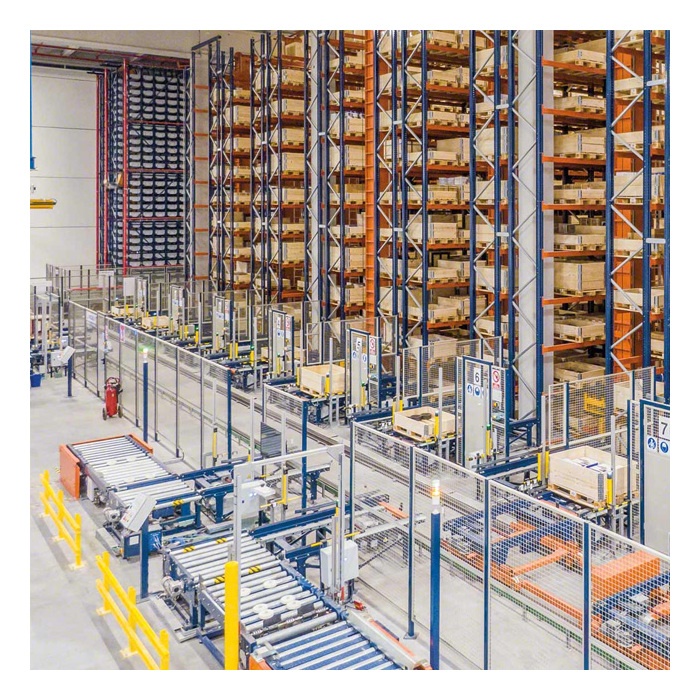

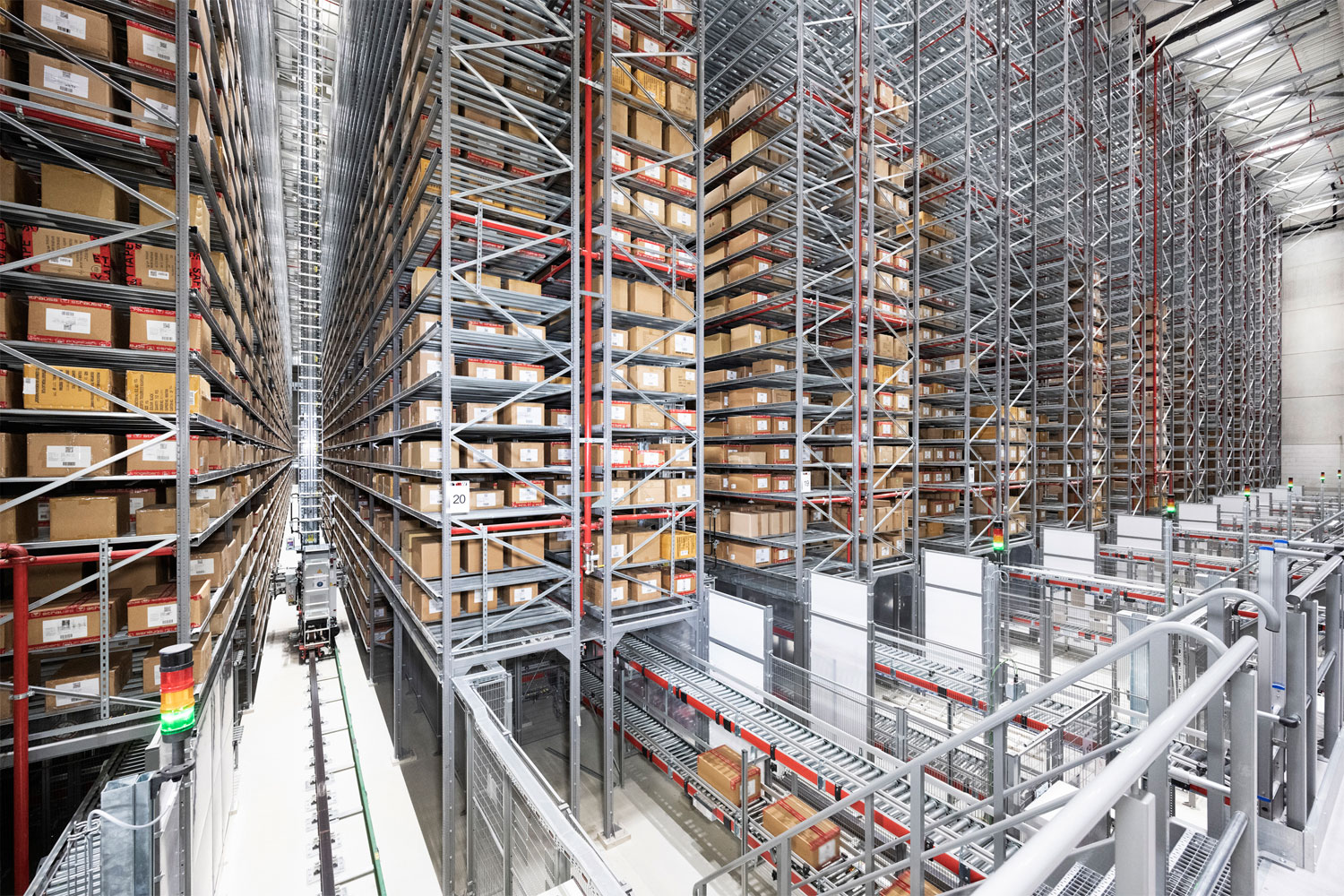

Automated Storage Retrieval Systems (ASRS)

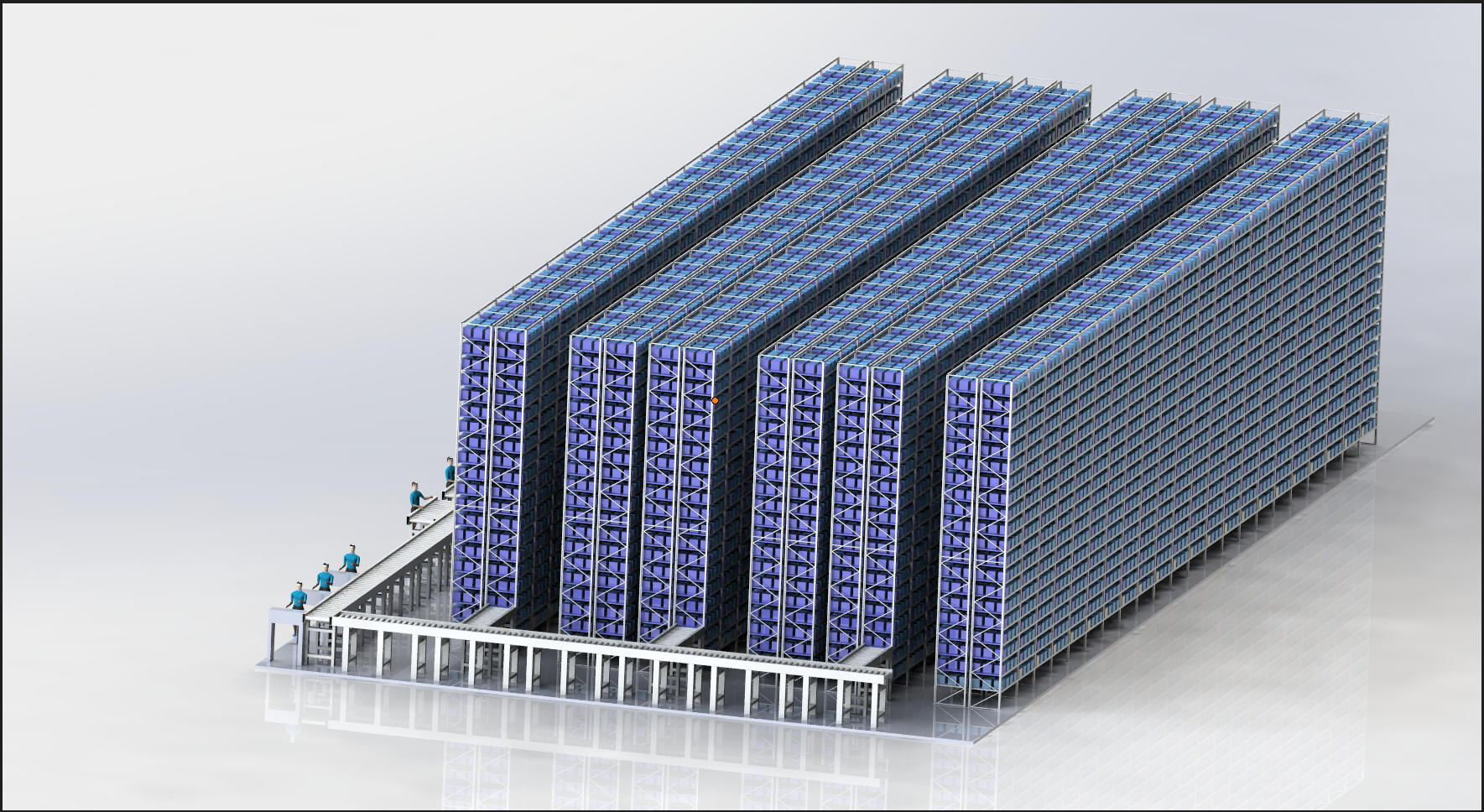

The automatic three-dimensional storage system consists of high-rise three-dimensional shelves, automatic stacker, conveying system, automatic control system (WCS), warehouse management system (WMS) and related peripheral equipment.

Automatic storage system can make full use of storage space, and online control of equipment can be realized through storage management system (WMS). Based on the principle of first in first out, quickly and accurately handle the goods and reasonably manage the inventory data.

Key Advantages

• Save inventory floor space and improve space utilization
• Automatic cargo access, accurate, fast and safe
• Be precise in information management and save labor force
• Improve the contingency capacity of production
• Accelerate the turnover of warehousing funds
• Low transportation cost and high operating efficiency
• Improve the inventory management level of enterprises

Manufacturing Technique

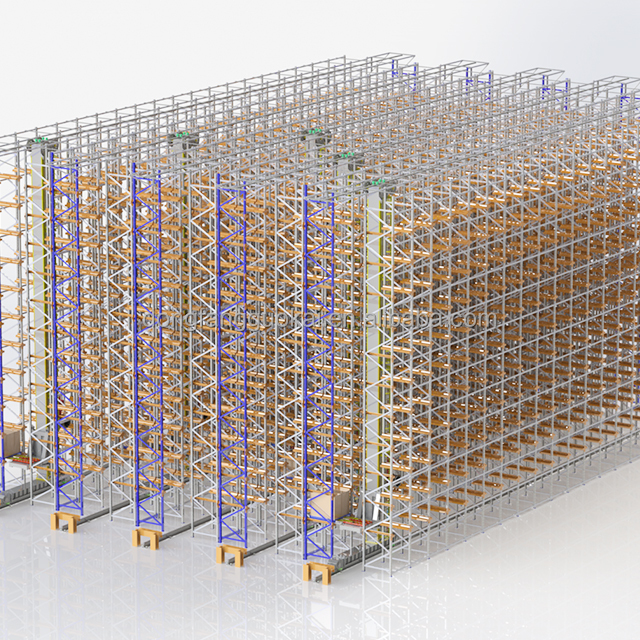

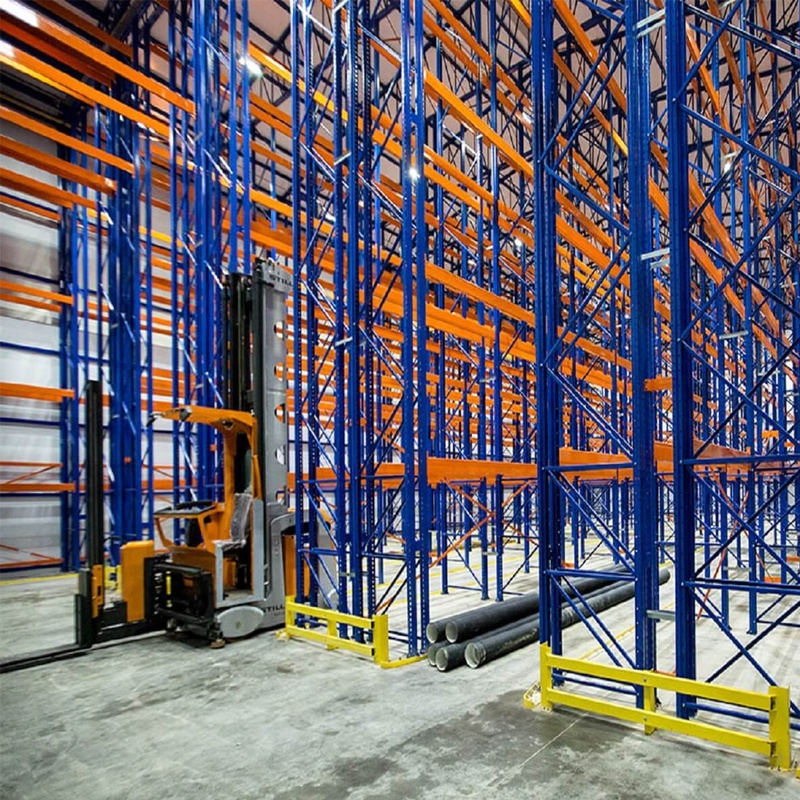

Racking

Structural feature: ASRS System are usually equipped with pallet racking and drive-in racking, both of which are composite structure. Steel panels and wooden panels are available for loading with good capacity. Conveyors will do the loading and unloading job under the instruction from the central computer. ASRS System is mainly used in the food, tobacco, electronic, mechanical and armament industry.

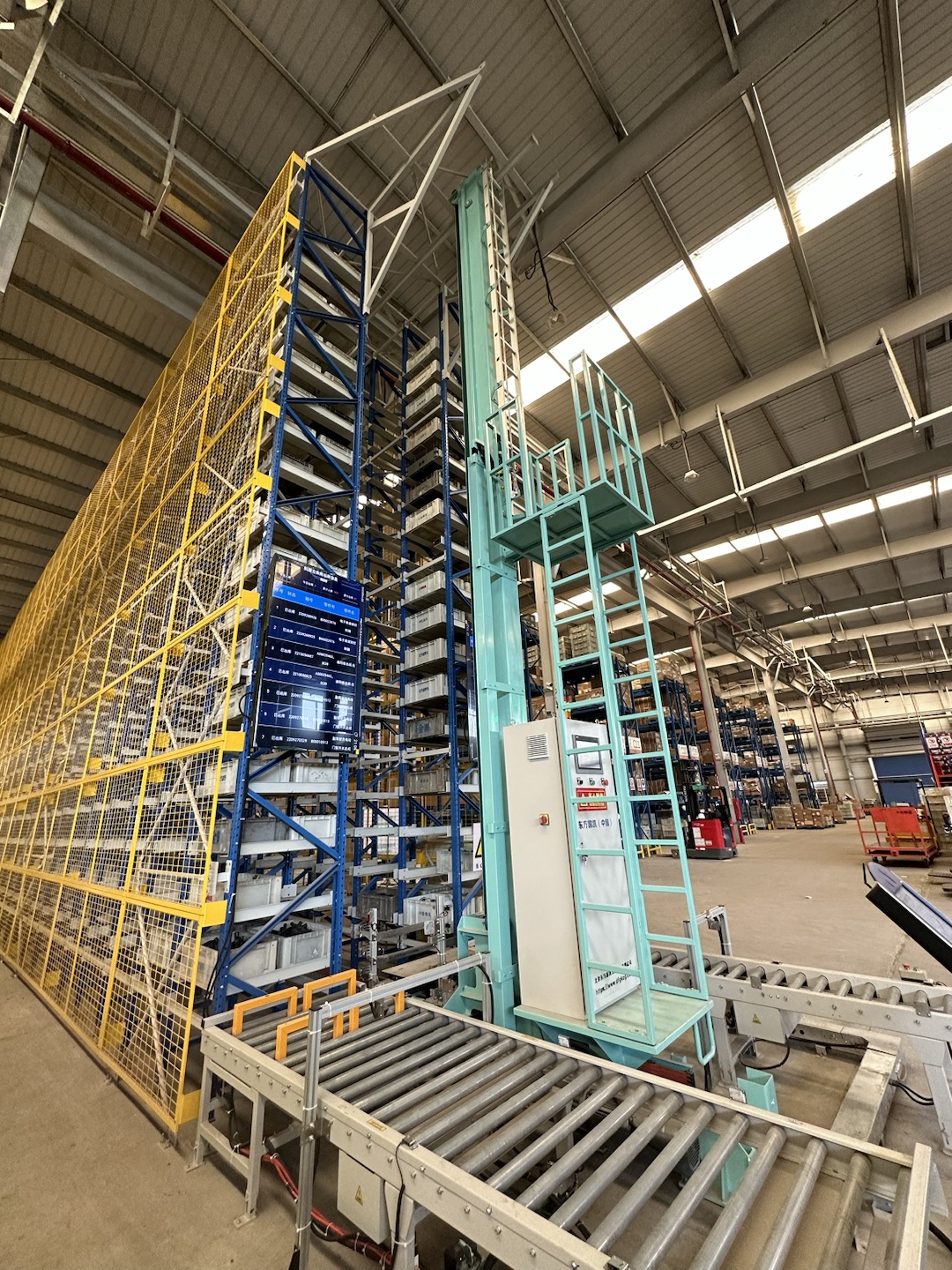

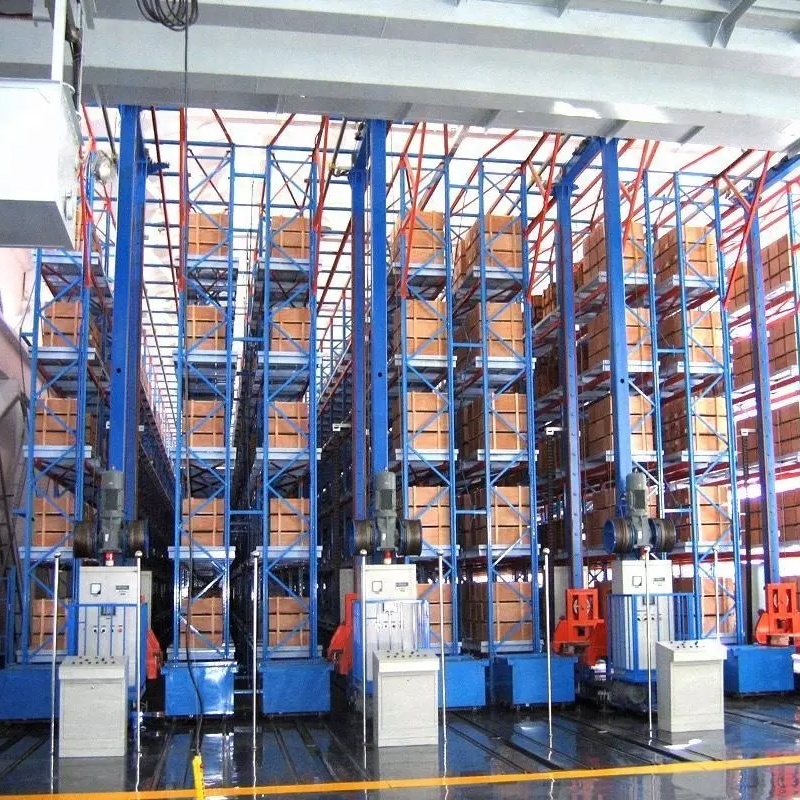

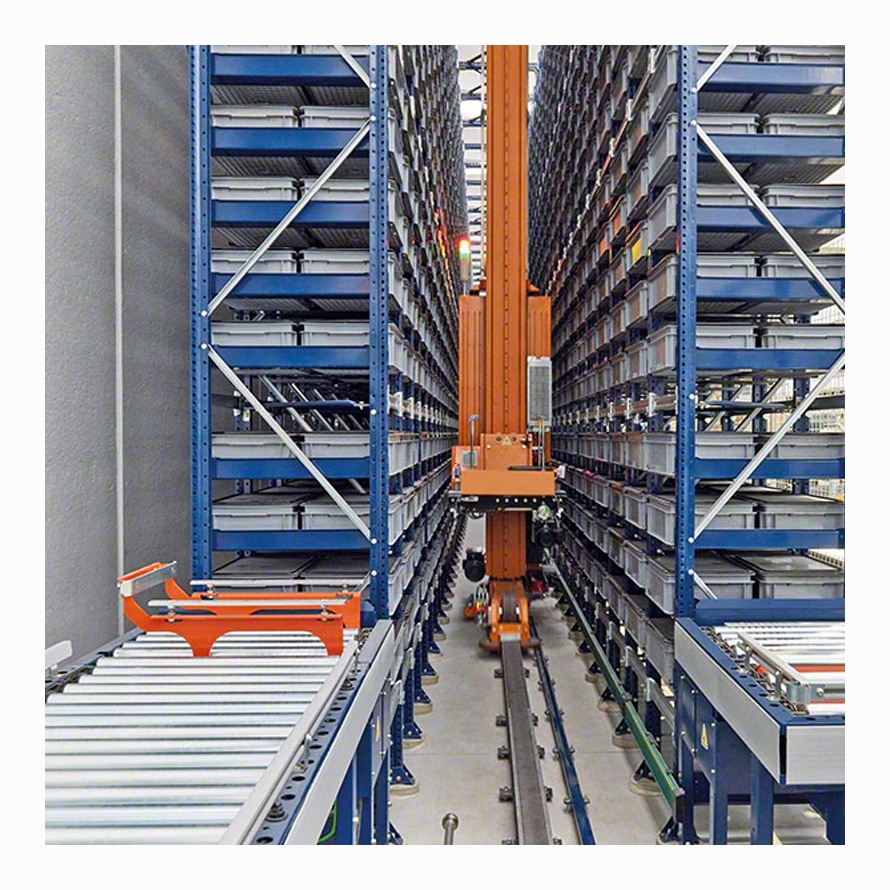

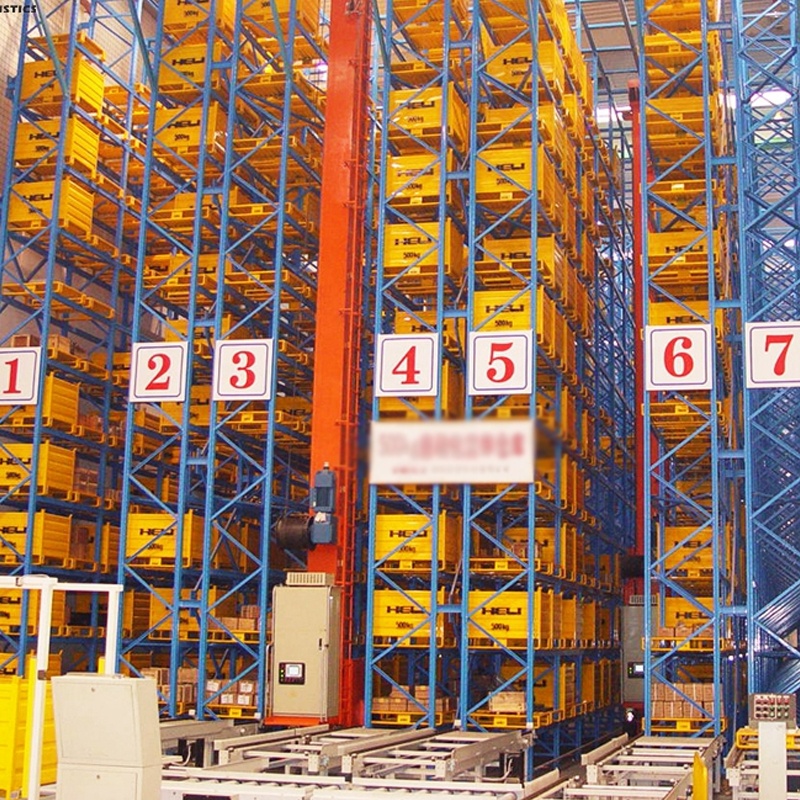

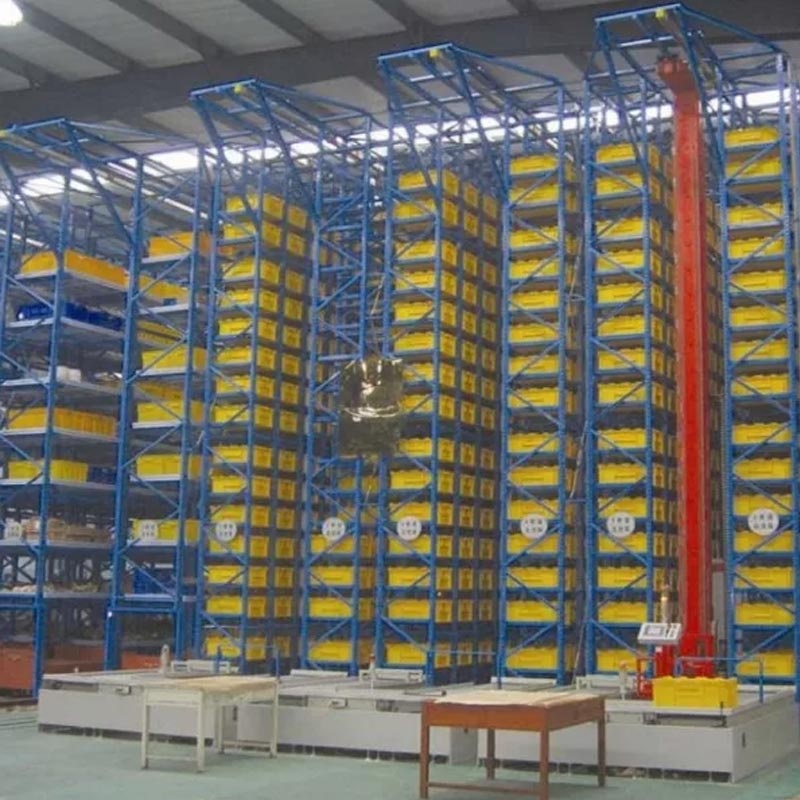

Stacker

Structural feature: Double upright structure, steady and reliable, vector frequency conversion drive and encoder position control, mechanical and electronic safety devices to ensure safe using of the system; All the way tracing technology by information transferring; Electric components are imported from abroad; Touching screen interface for easy operation; Making manual, semiautomatic, automatic and linkage control come true; Used in many situations by combining with other logistics equipment.

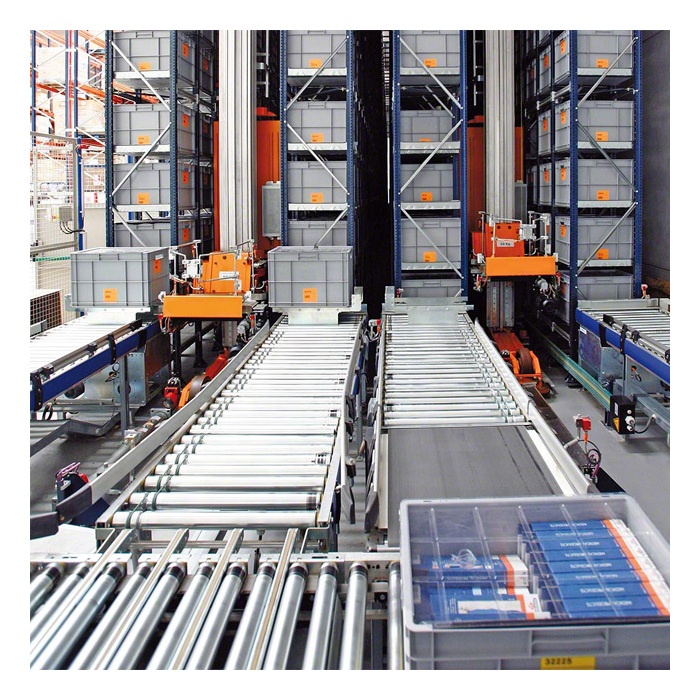

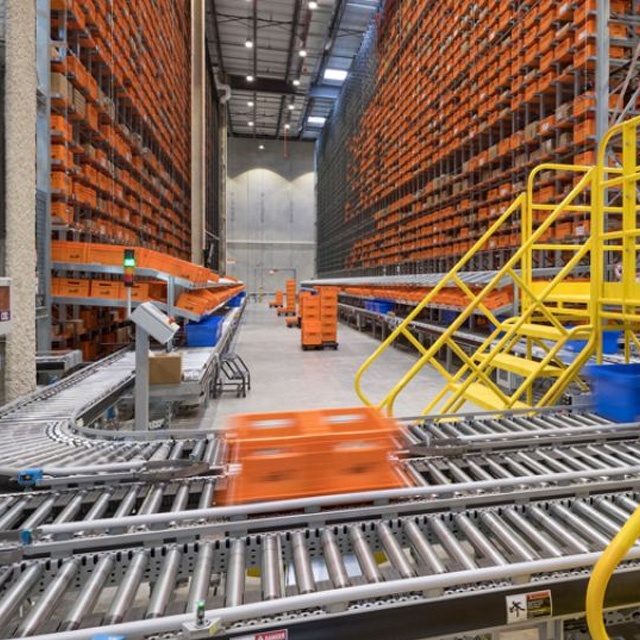

Conveying System

Structural feature: Conveying system is usually equipped in the front or back of warehouse for conveying goods here and there, bridging the procedures done by forklifts and stackers by using rolling conveyor or chain conveyor and combining with lifts, rotating devices and other equipments.

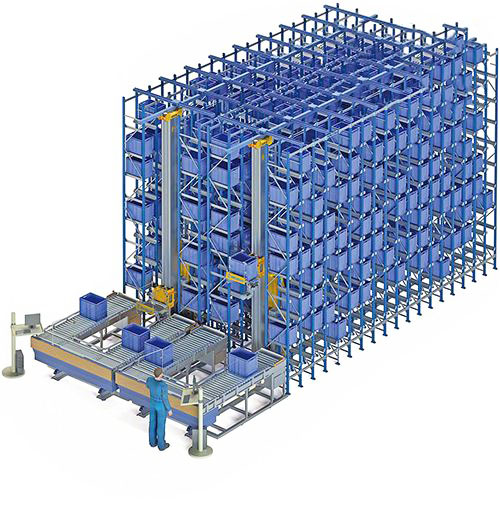

Controlling System

Structural feature: Communicating with WMS and ECS through OPC agreement, PROFIBUS bus network, set up by Siemens S7-300 controller can operate all conveyors offline, doing conveying of goods automatically. Please refer to the attached drawing for details of conveying system.

WMS System

Hardwares of WMS System: Star network structure, network sever, RF server, computers for management and monitor, RF base station and RF terminal for in/out warehouse of goods.

Technical Specifications

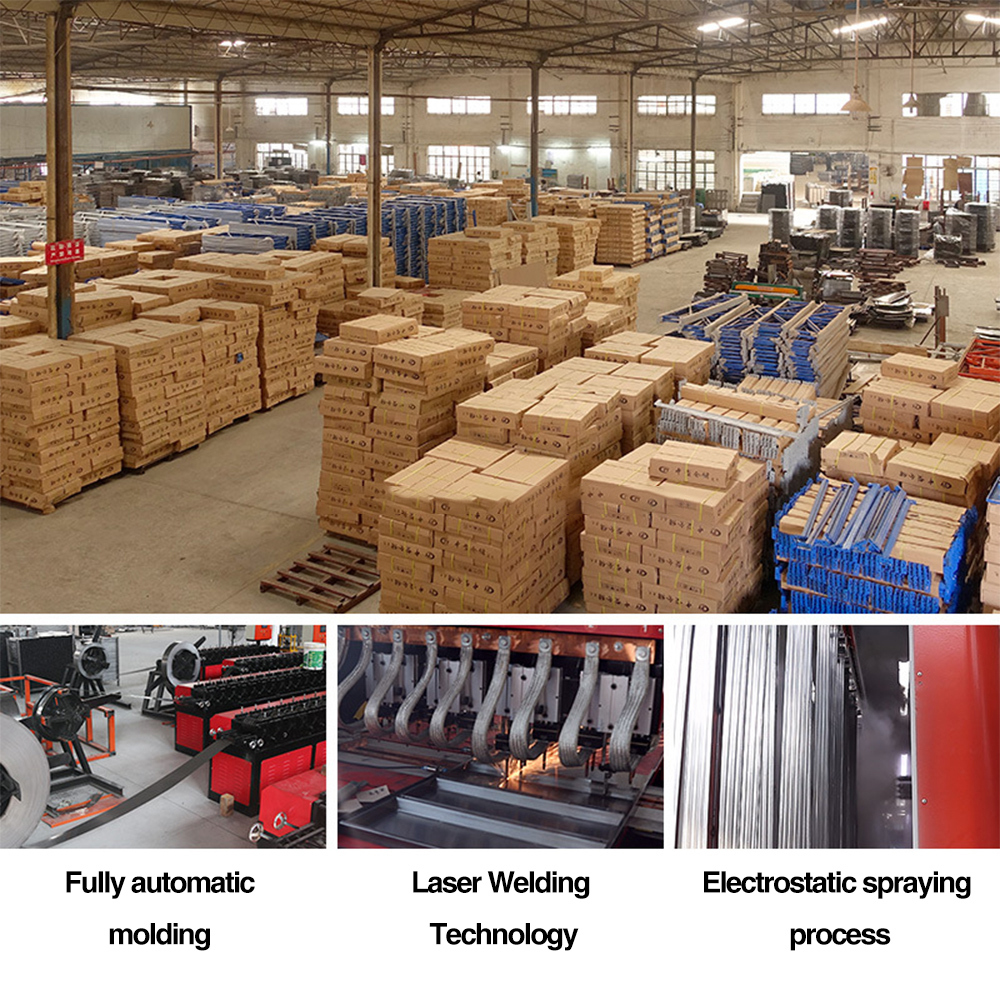

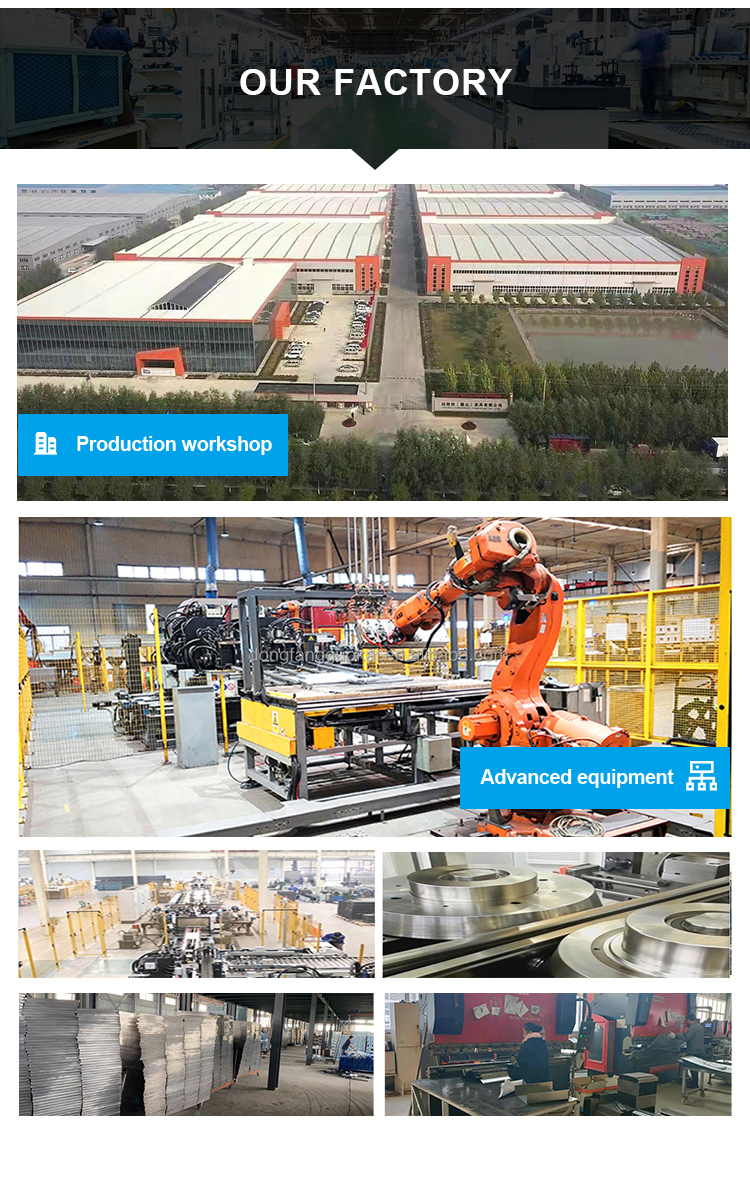

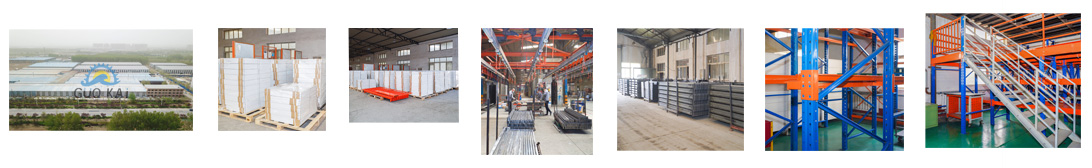

Production Capabilities

Established in 2003 with a registered capital of 210 million yuan, our enterprise specializes in the planning, design, manufacturing, installation, and consulting services of fully automated three-dimensional warehouse systems, warehouse shelf systems, WMS/WCS software systems, and specialized logistics appliances. We have established branches and factories in many places throughout the country.

With strong technical and R&D capabilities, the products are widely used in third-party logistics, cold chain, food and beverage, medicine, complete vehicles and components, e-commerce, and other fields. We have successfully obtained the manufacturing qualification for Class B equipment and have been recognized as a "high-tech enterprise" by the government.

We are committed to establishing a sound quality control system, and our independently developed and produced products have passed the certification of ISO9001:2015 international quality system, ISO14001:2015 international environmental management system, etc.

Certifications

Each of our products has passed the authoritative professional certification, and there are about 100+ patents to ensure your peace of mind.
