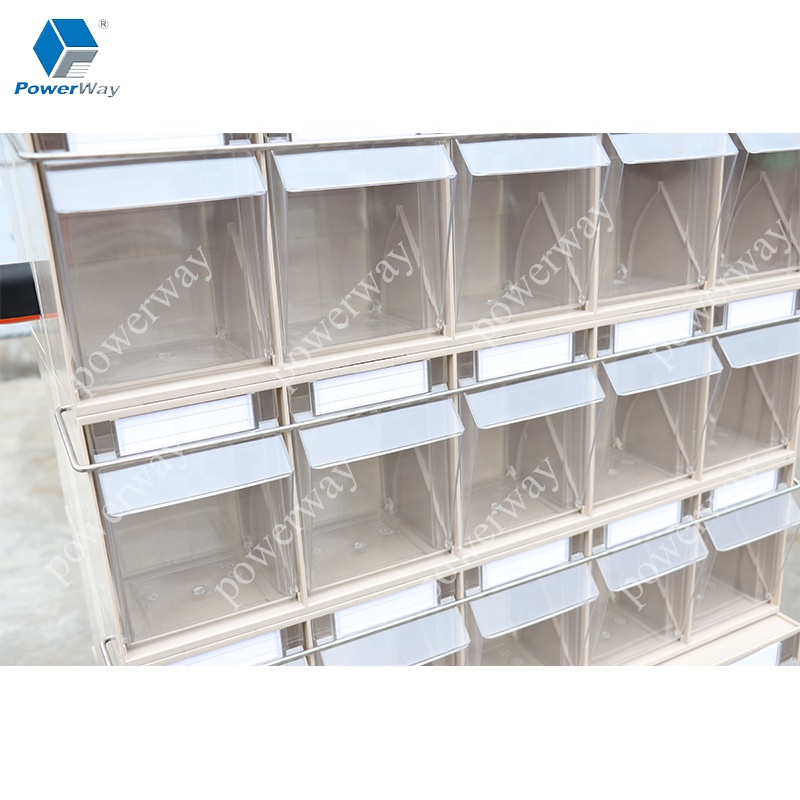

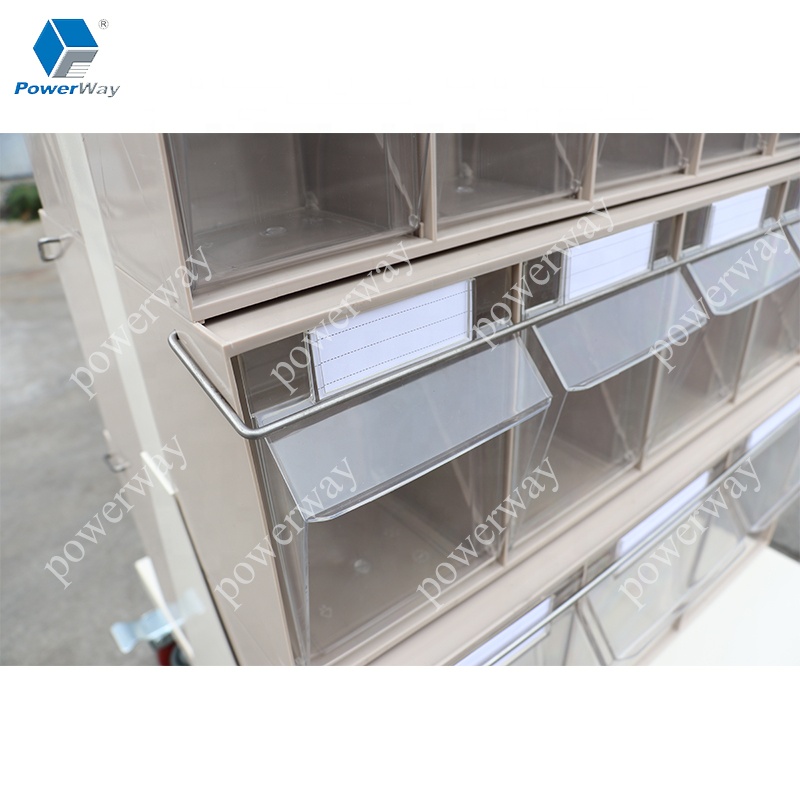

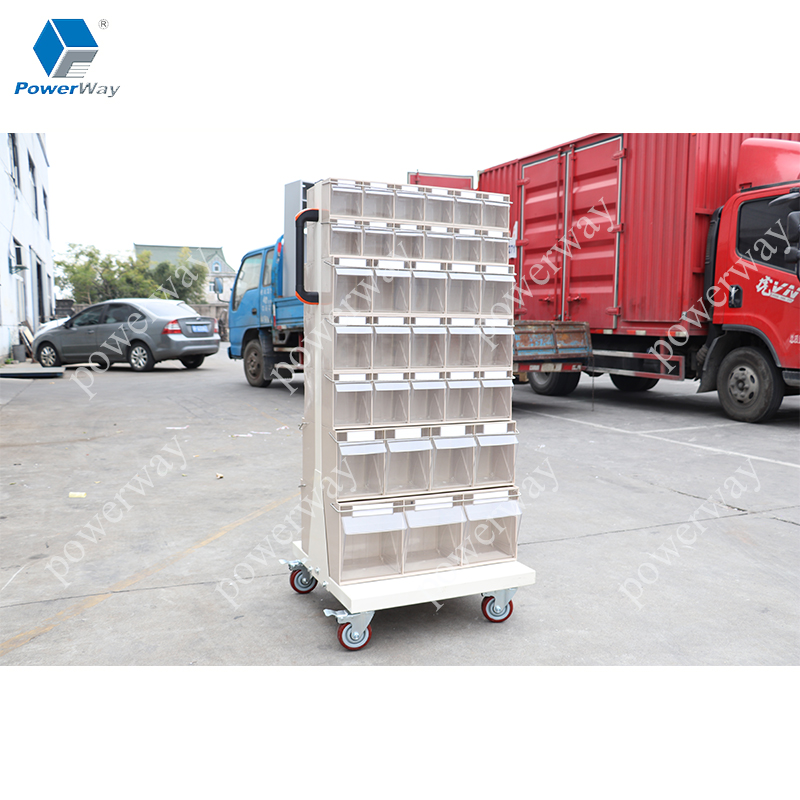

Powerway Double-Side Tilt Storage Organizer Display Rack
Powerway Double-Side Tilt Storage Organizer Display Rack
Powerway Double-Side Tilt Storage Organizer Display Rack
Powerway Double-Side Tilt Storage Organizer Display Rack
Powerway Double-Side Tilt Storage Organizer Display Rack
1 / 5
Powerway Double-Side Tilt Storage Organizer Display Rack
Powerway Double-Side Tilt Storage Organizer Display Rack
Powerway Double-Side Tilt Storage Organizer Display Rack
Powerway Double-Side Tilt Storage Organizer Display Rack
Powerway Double-Side Tilt Storage Organizer Display Rack

Powerway Double-Side Tilt Storage Organizer Display Rack

Send Inquiry

Product Description

Product Description

Tilt Box

Tilt box is a new design product which is made of high density polyethylene (HDPE).

  • The front of the box is inverted (opening angle 55°), smoothly pulled out and closed.
  • Clear view with exhibition storage function. With label groove, effectively classify and manage the storage items.
  • Hanging hole design, can be used singly or wall mounted and fixed.
  • Special size design, free combination, which can be combined into box group storage cabinet, storage cart.

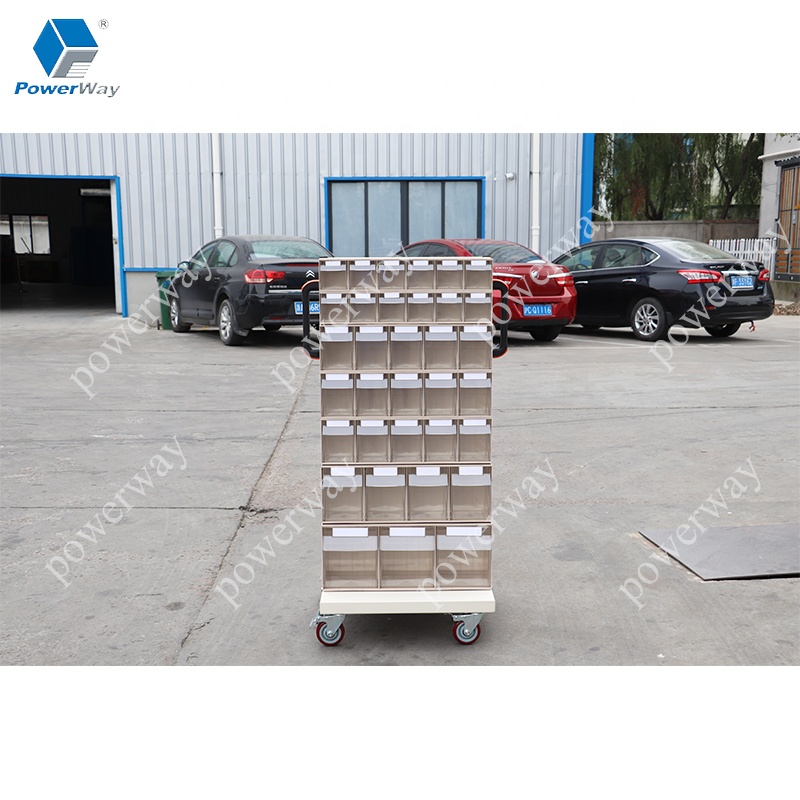

Tilt Box Main

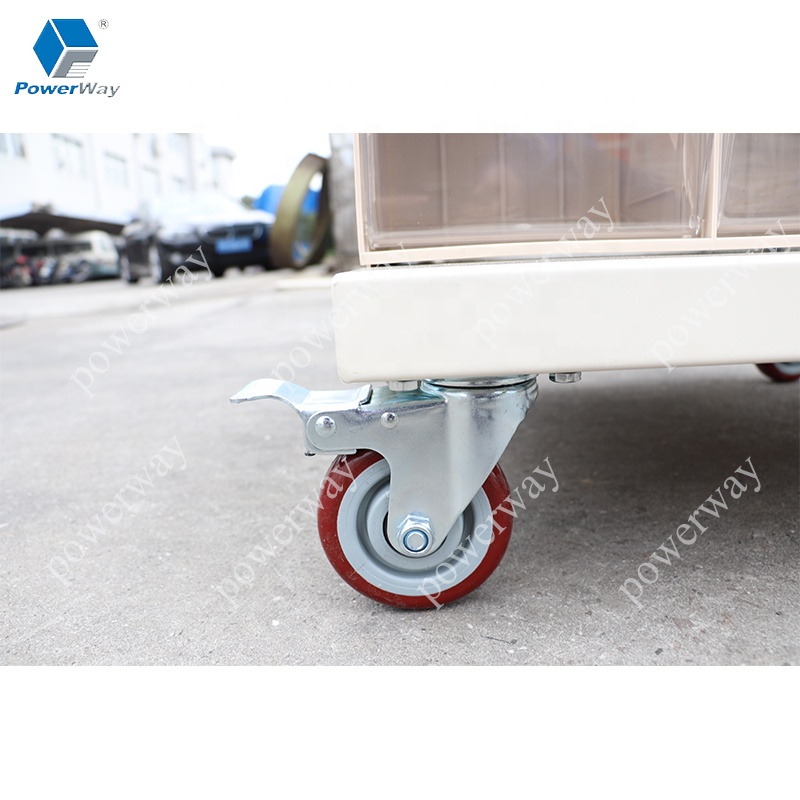

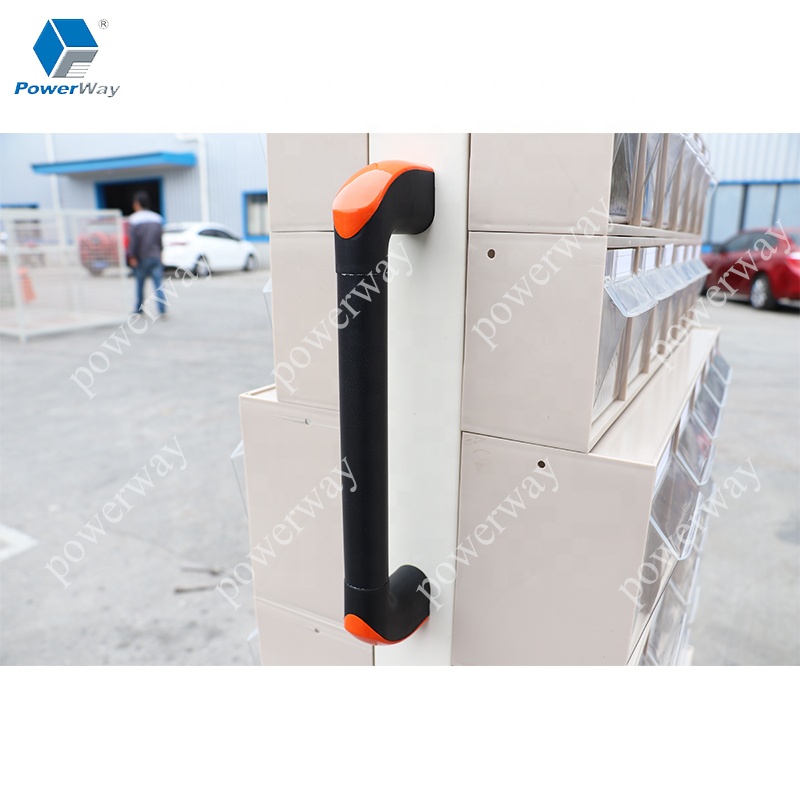

Tilt Box Front View Tilt Box Application Tilt Box Details
Specifications
SPECIFICATIONS
Model External Size (mm) Combination Quantity Part Box Size (mm) Usage
T6 W600*D91*H113 6 W82*D65*H71 Standard Usage
T5 W600*D133*H164 5 W101*D97*H108
T4 W600*D168*H207 4 W128*D128*H133
T3 W600*D197*H240 3 W177*D147*H161
CT5-2 W600*D200*H352 T5*2 - Table used
CT4-2 W600*D160*H175 T4*2 -
CTK-1 W600*D210*H1055 T6*2 / T5*2 / T4*2 - Wall mounted
CTH-1 W1260*D320*H1770 T6*4 / T5*8 / T4*4 / T3*2 - Locker
CTW-1 W777*D600*H1480 T6*4 / T5*4 / T4*6 - Carts
CTW-2 W777*D600*H1480 T6*4 / T5*6 / T4*2 / T3*2 -

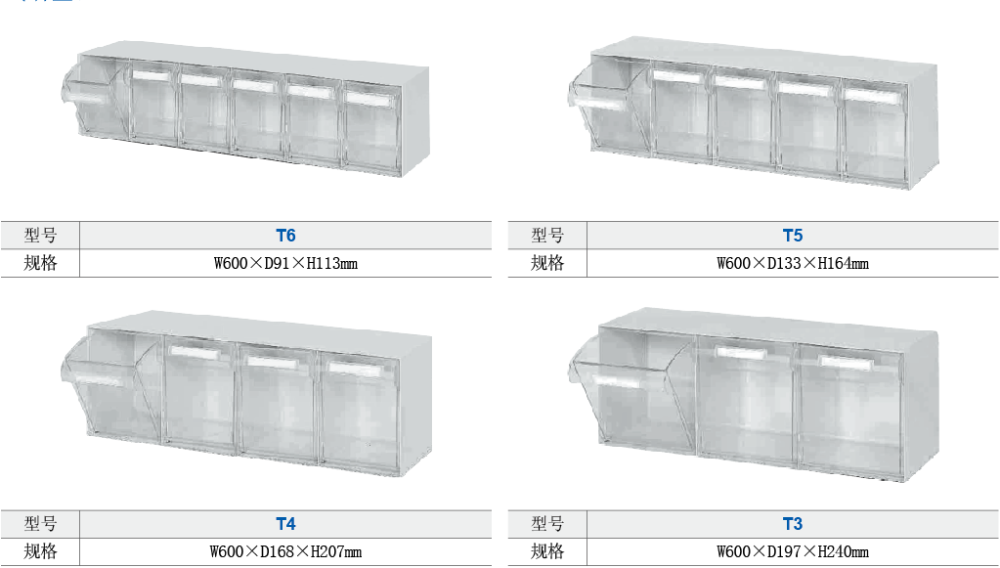

Specification Dimension Diagram 1

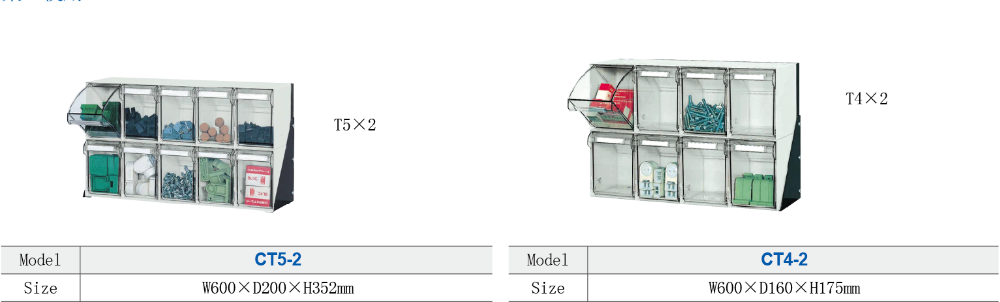

Specification Dimension Diagram 2

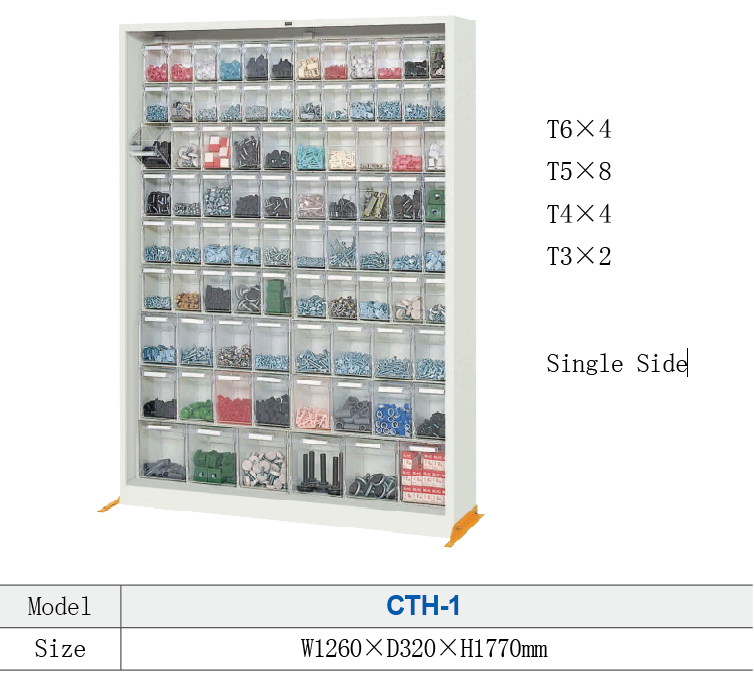

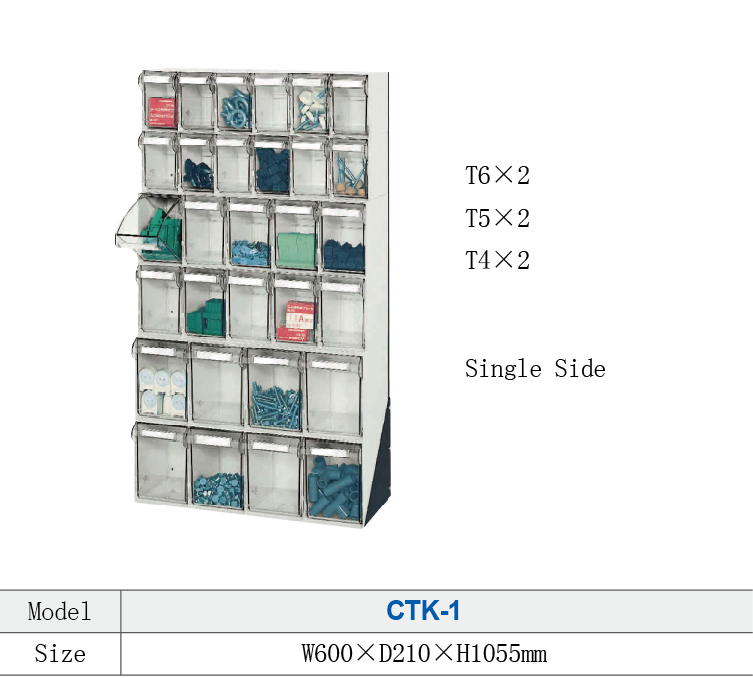

Combinations Grid 1 Combinations Grid 2

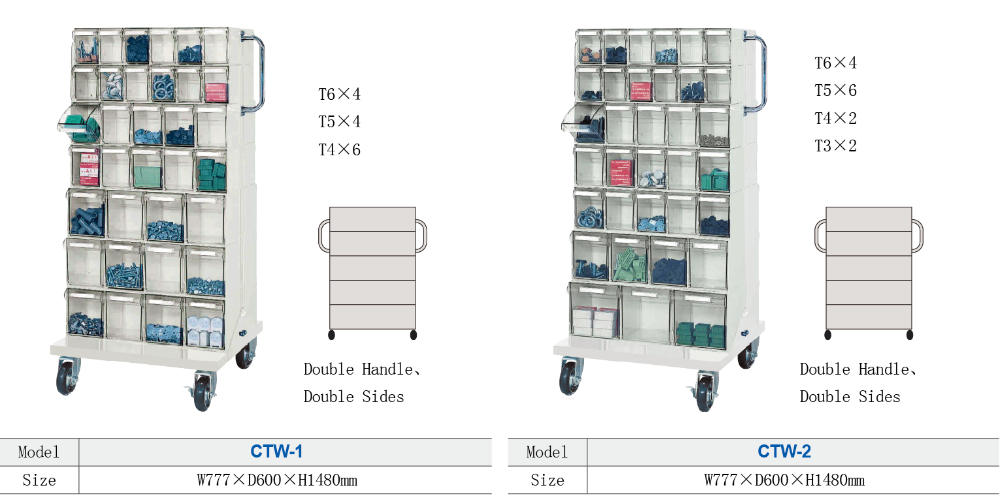

Full Set Setup Diagram
Details
Detail Close Up 1

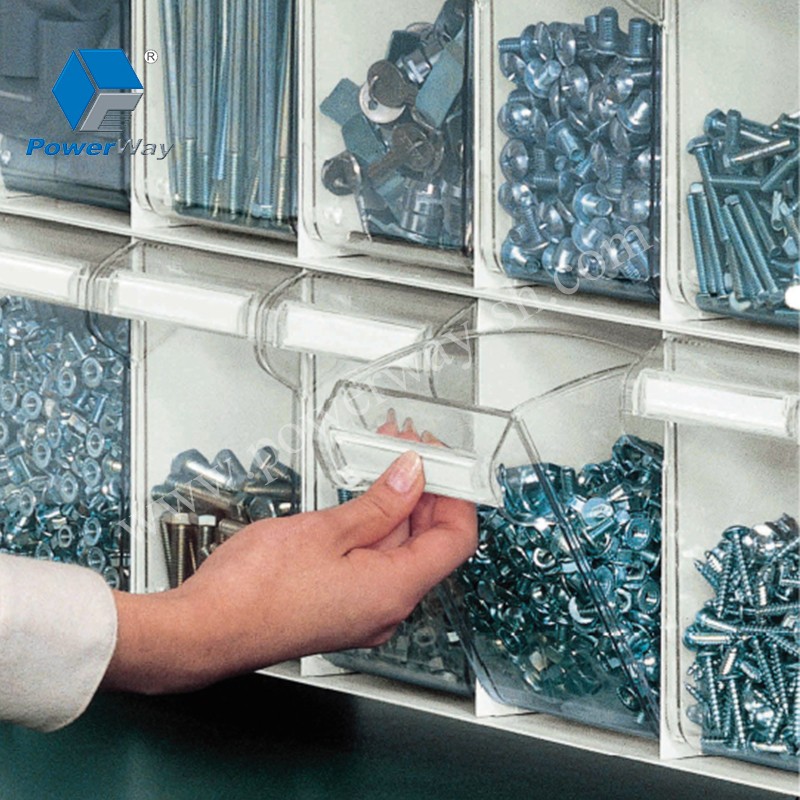

Detail Close Up 2
Lock mechanism explanation
Other Storage Bins

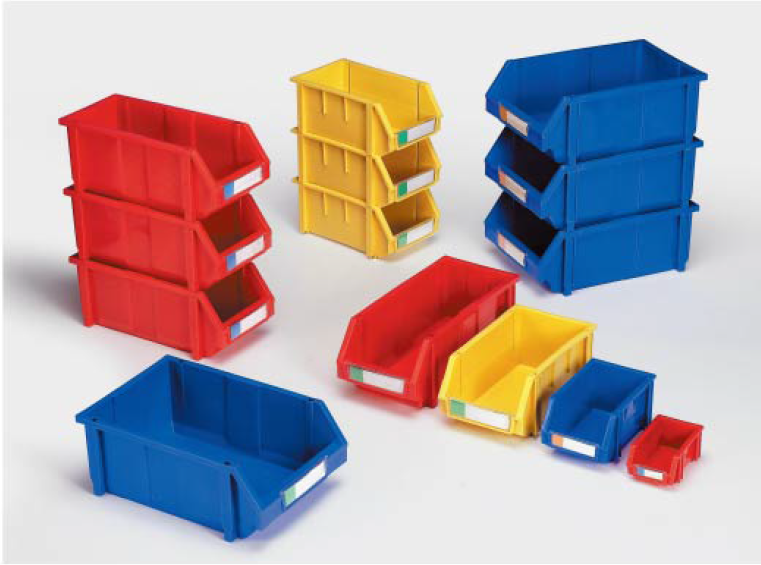

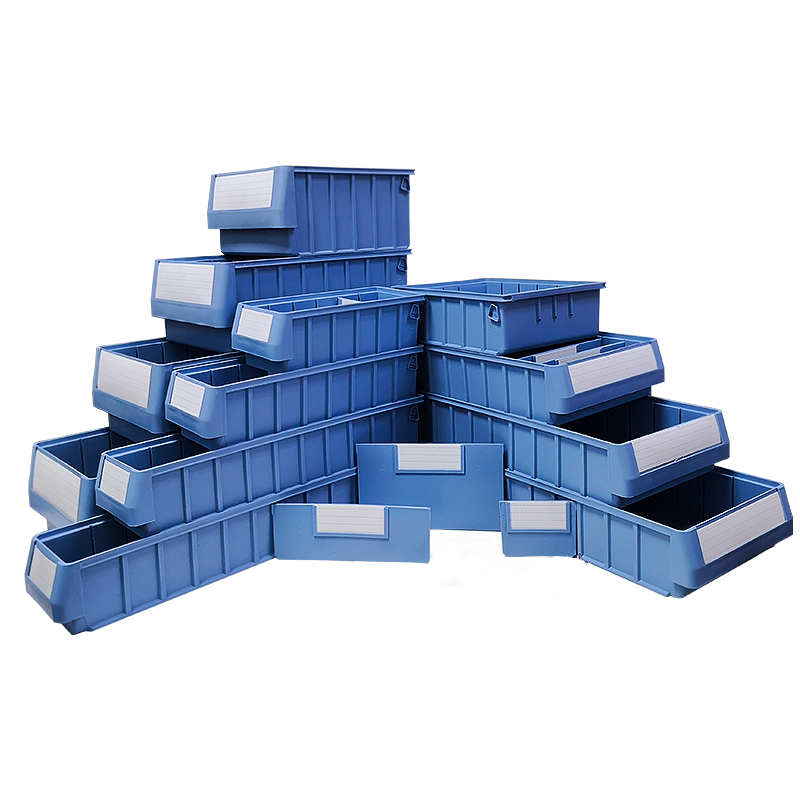

Combination Bins Overview Multi-function Bins Overview

Combination Bin

Can be used for serving food, clean convenient, turnover, and neatly stacked parts box, easy to manage.

Multi-function Bin

Stacked neatly, safely and space-saving, heavy duty.
Oil resistant, acid resistant alkaline resistant solution, anti-fall.
Pure and High quality PP material, suitable for conveying belt system and material shelf.

Factory

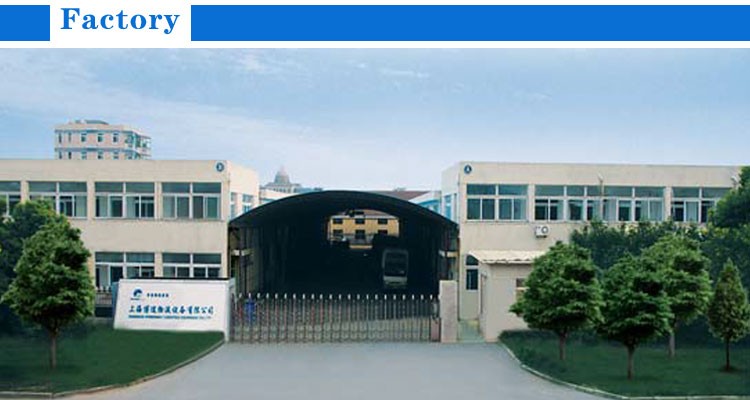

Factory Machine Shop

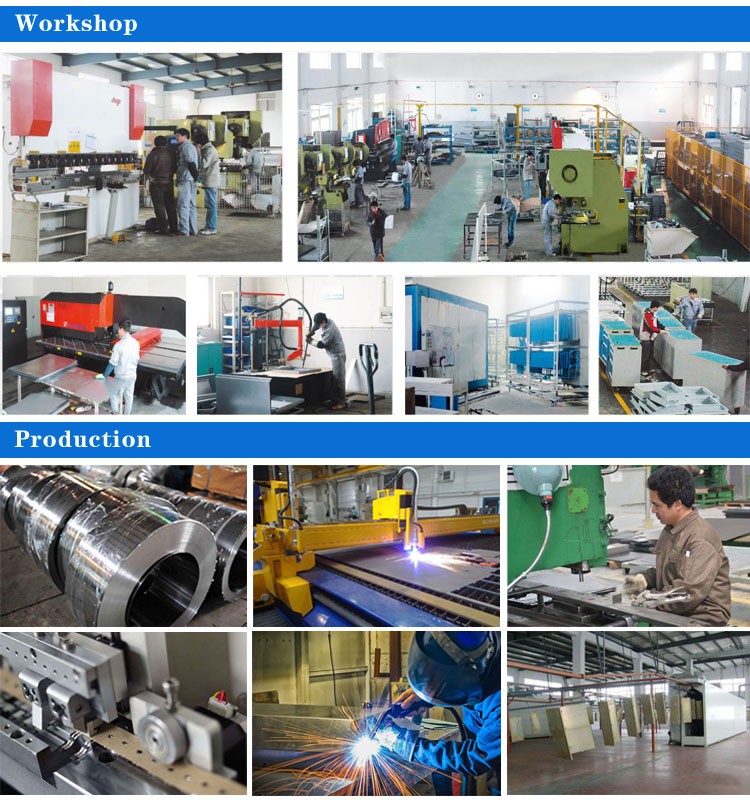

Production Process
Warehouse Stock
Our Customers
Customers Global Meeting
Customer Showcase Display
Packing & Delivery
Products Packed in Warehouse
Loading Shipping Container
Related Products

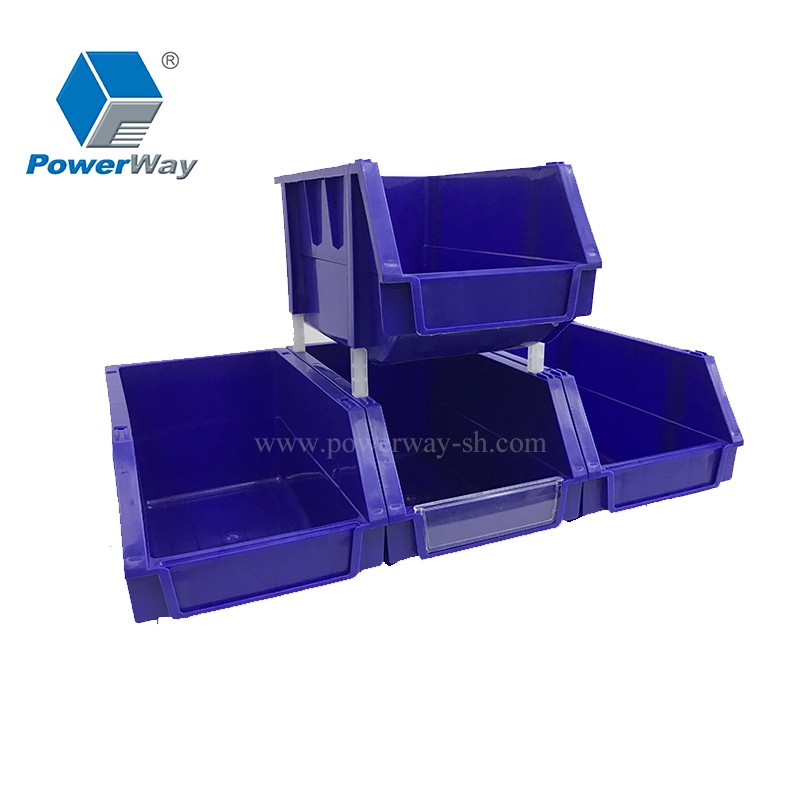

Product 1

Clear stackable spare parts storage boxes plastic bins for storehouse

91.8% Response Rate
Product 2

600*400*220mm 50L large size plastic stackable storage bins with dividers

91.8% Response Rate

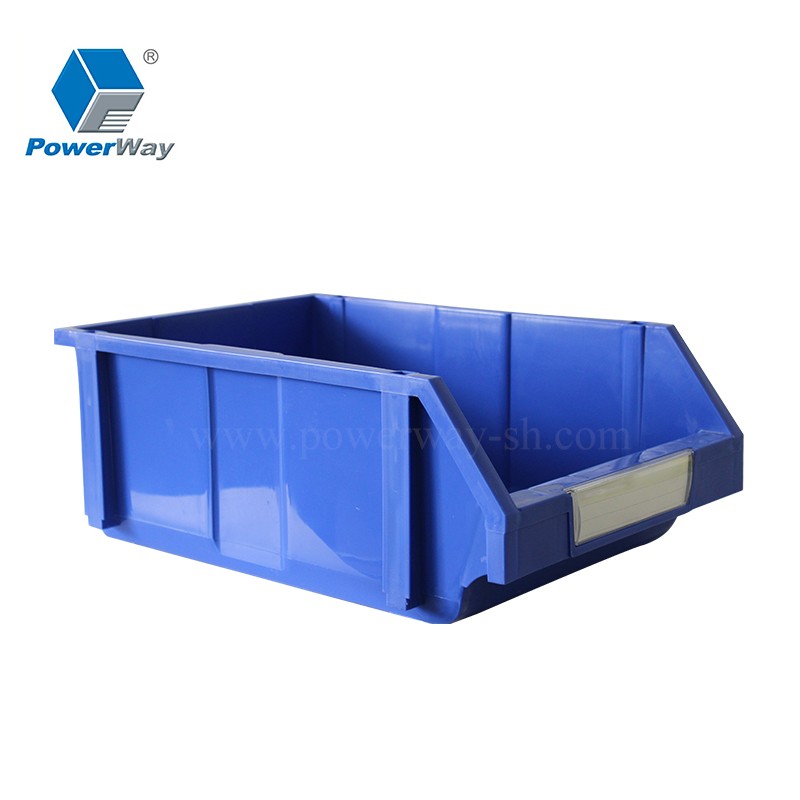

Product 3

450*200*177mm various sizes PP bolts and nuts box plastic stackable storage box

91.8% Response Rate
Frequently Asked Questions (FAQ)
What material is the Tilt Box made of?
The Tilt Box is made of high density polyethylene (HDPE), which ensures durability, structure strength, and reliable storage safety.
How does the opening mechanism of the Tilt Box work?
The front of the box is designed with a 55° inverted opening angle. It allows the drawer to be smoothly pulled out and closed for quick access to storage items.
Can the storage bins be wall-mounted or grouped together?
Yes, they feature a hanging hole design that allows them to be used singly, wall mounted, or combined into larger storage cabinet units and storage carts.
What are the chemical resistance properties of the Multi-function Bin?
The Multi-function Bins are heavy duty, oil-resistant, acid-resistant, and alkaline-resistant, making them ideal for heavy industrial environments.
Are these bins suitable for conveying systems?
Yes, our Multi-function Bins are made of pure, high-quality PP material which makes them perfectly compatible with conveyor belt systems and material shelves.
