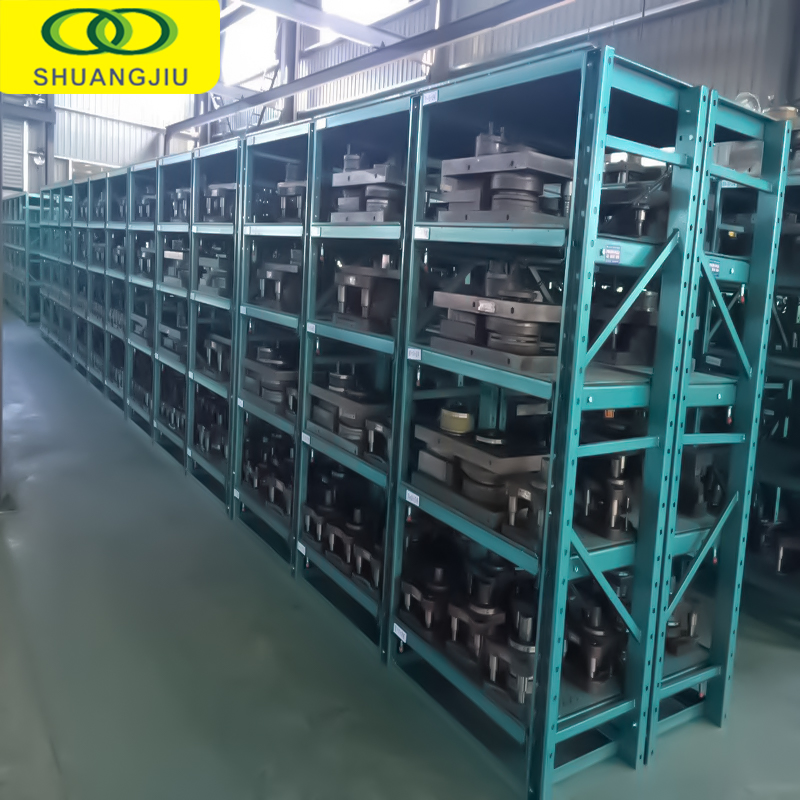

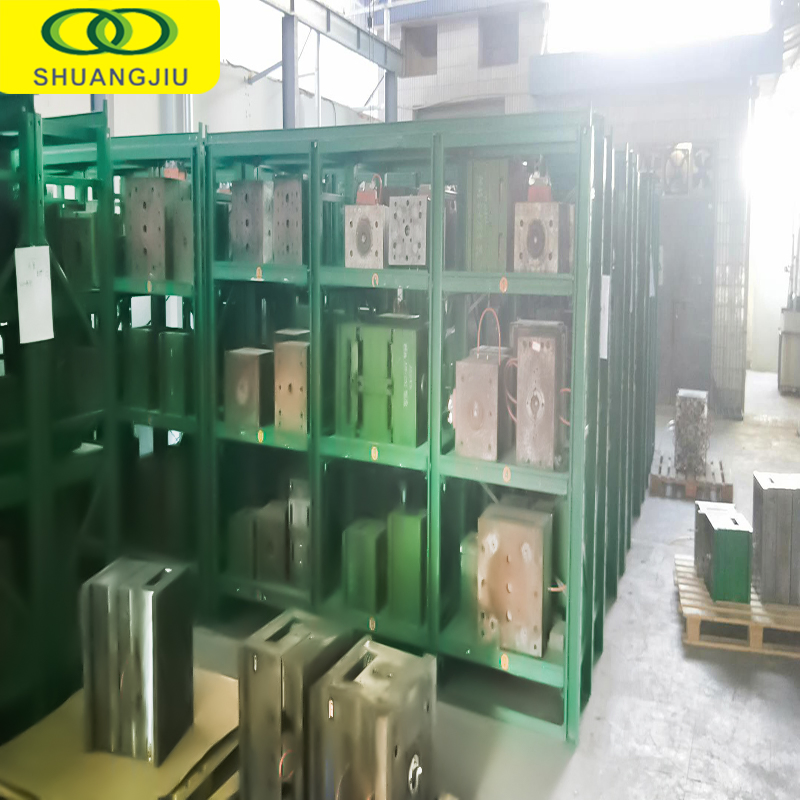

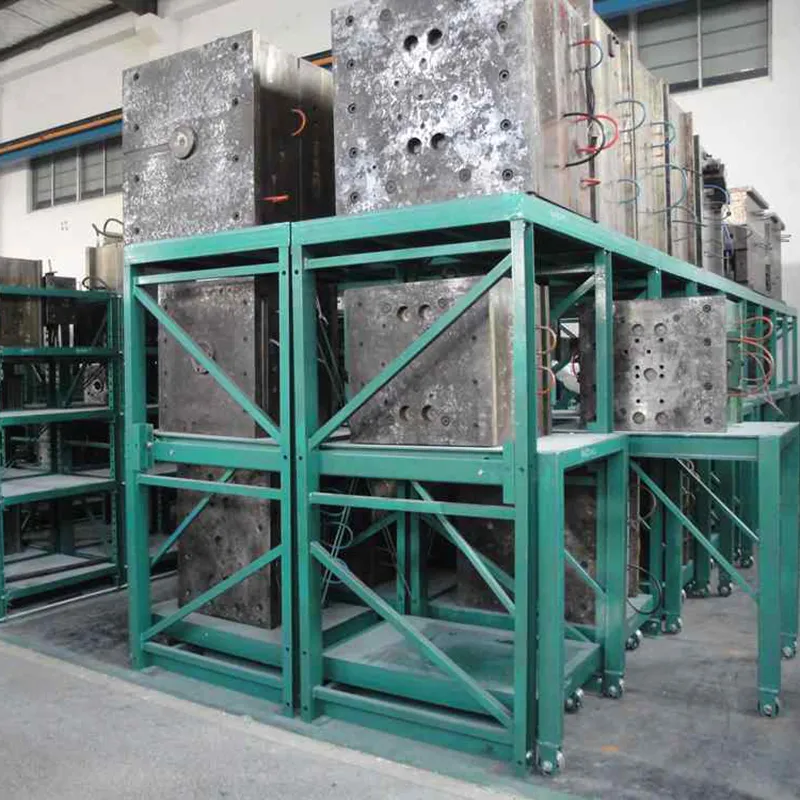

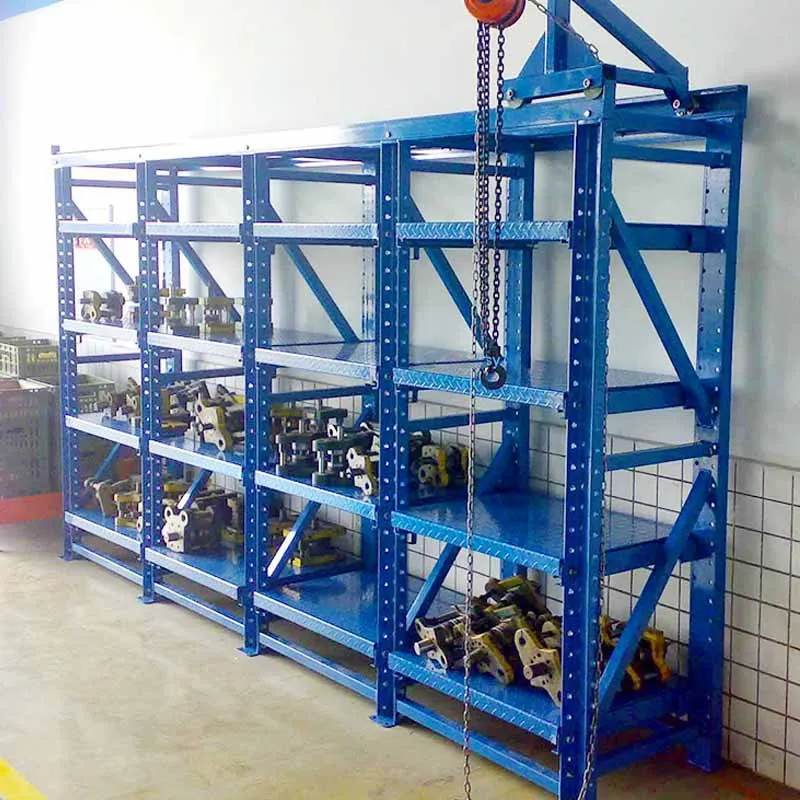

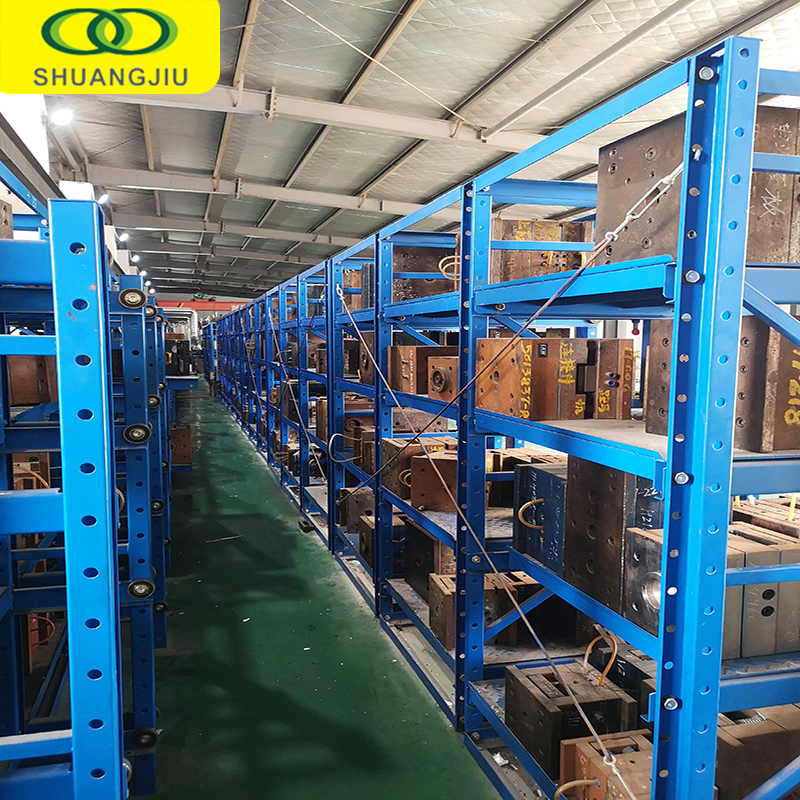

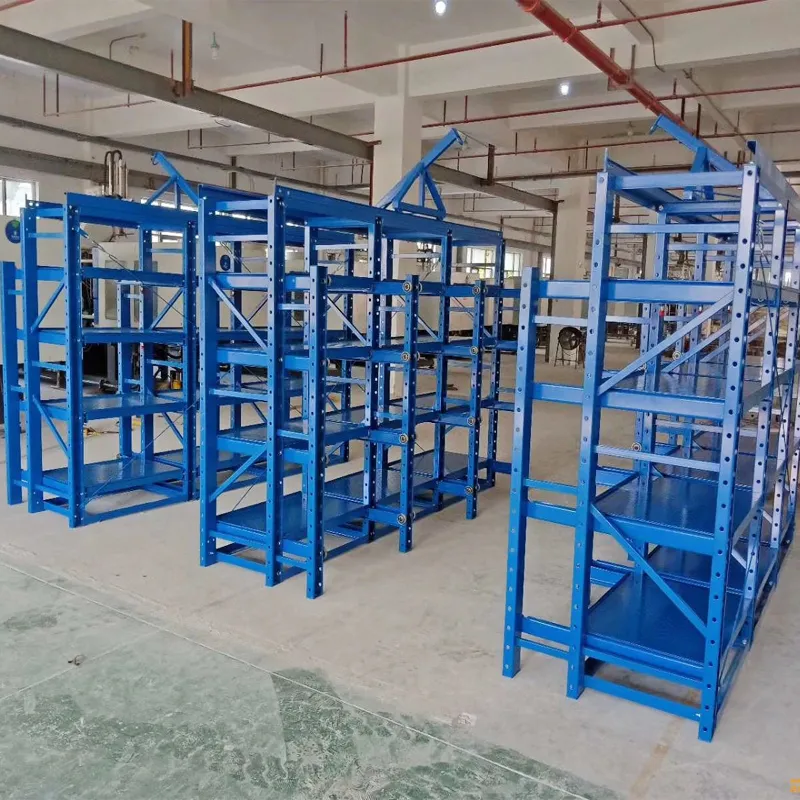

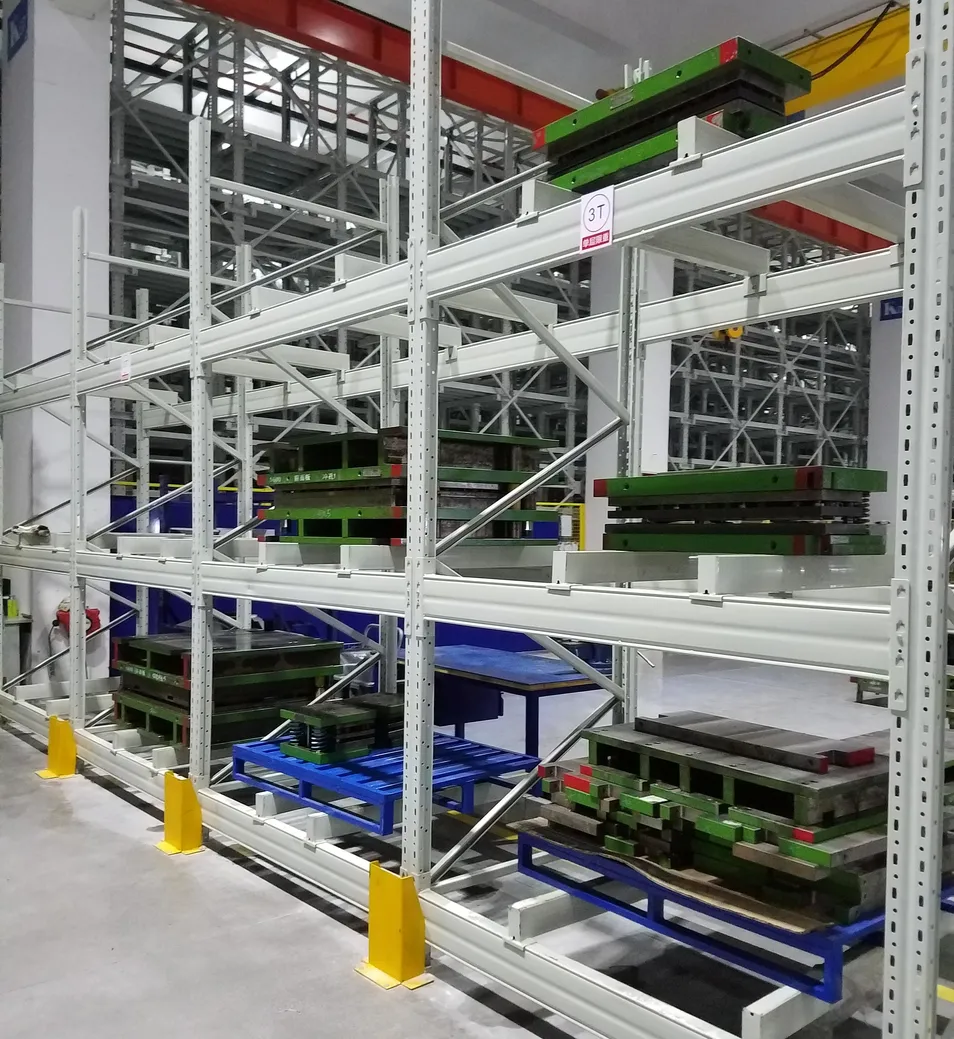

Mold Storage Rack— heavy duty drawer-type system for storing injection molds, stamping dies, and tooling. Full open or half open design, each drawer pulls out independently with smooth guide rails. 1000-3000kg capacity per drawer. Q235 steel frame with powder coated or galvanized finish. Safety lock mechanism prevents accidental sliding. Three-column or four-column reinforced structure. Adjustable drawer height and spacing. Ideal for mold workshop, die casting plant, and auto parts factory.
|
|||

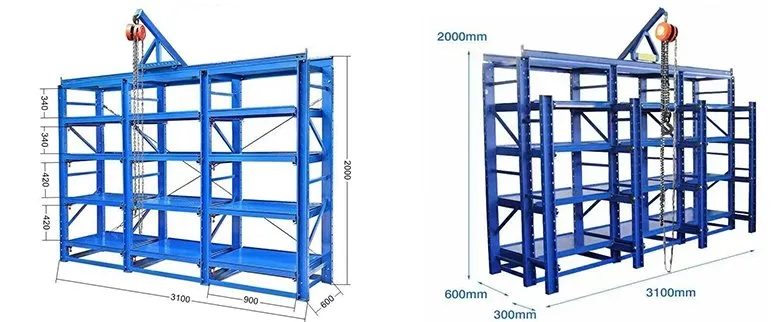

| Size | 2000*3100*600mm | Size | 2000*3100*600+300mm |
| Column | 100*50*2.0mm C-type structural column | Column | 100*50*2.0mm C-type structural column |
| Laminate | 2.0mm patterned plate, both sides of the layer are bent upwards 12mm to prevent slipping | Laminate | 2.0mm patterned plate, both sides of the layer are bent upwards 12mm to prevent slipping |
| Drawer reinforcement | No. 5 non-standard angle iron, 2 reinforced | Drawer reinforcement | No. 5 non-standard angle iron, 2 reinforced |
| Lower connection box | No. 5 non-standard angle iron, connected with M14*25 screws | Lower connection box | No. 5 non-standard angle iron, connected with M14*25 screws |
| Top frame | No. 5 non-standard angle iron, connected with M14*25 screws | Top frame | No. 5 non-standard angle iron, connected with M14*25 screws |
| Slide rail | External slide 3.5mm flat plate bending parts, internal guide rail 3.5mm flat plate bending parts, side U-shaped structure | Slide rail | External slide 3.5mm flat plate bending parts, internal guide rail 3.5mm flat plate bending parts, side U-shaped structure |

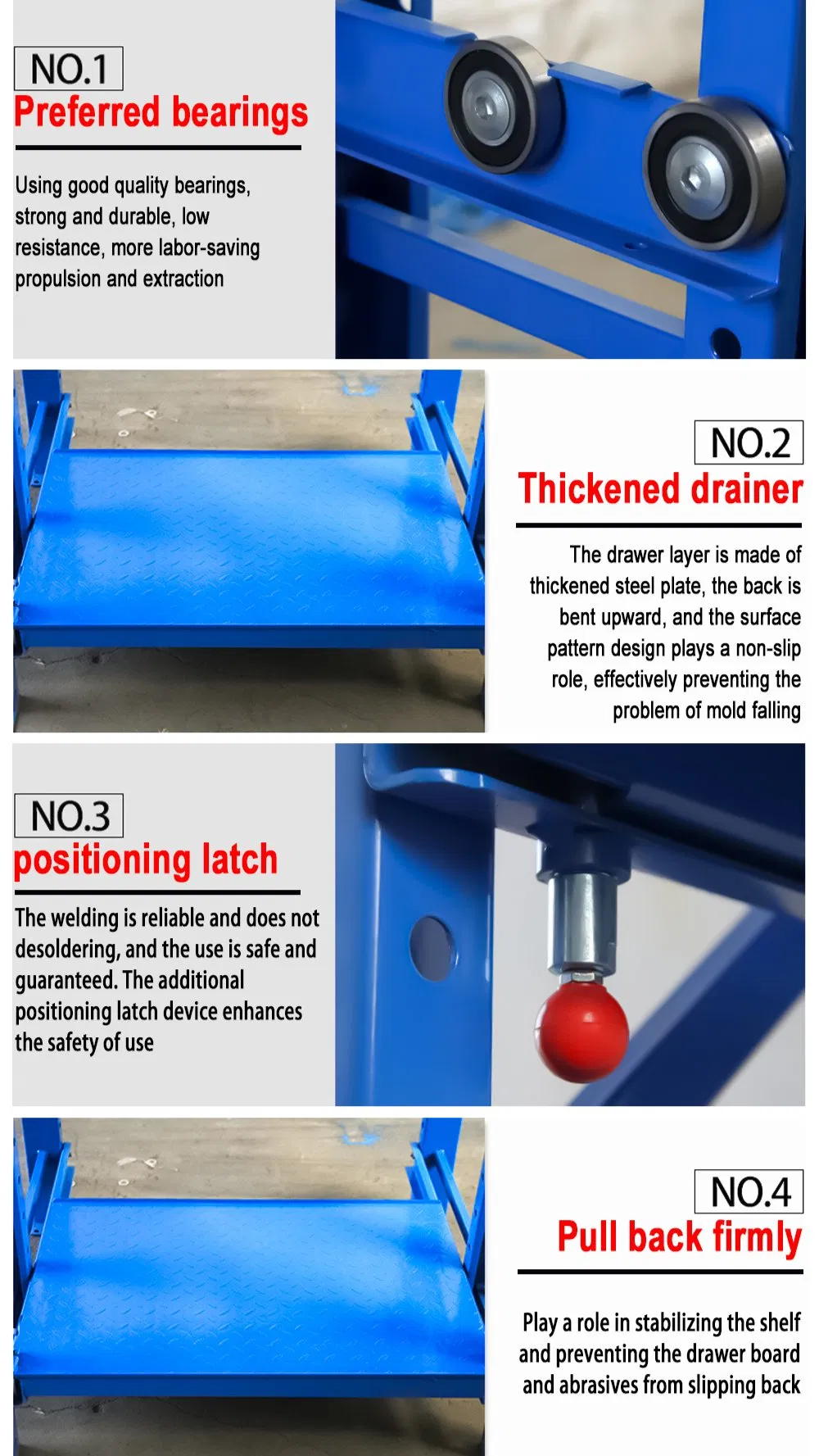

| Bearings | Model 6305, Material: bearing steel | Bearings | Model 6305, Material: bearing steel |
| Back Pull | 6.5mm iron wire plus M10 turnbuckle | Back Pull | 6.5mm iron wire plus M10 turnbuckle |

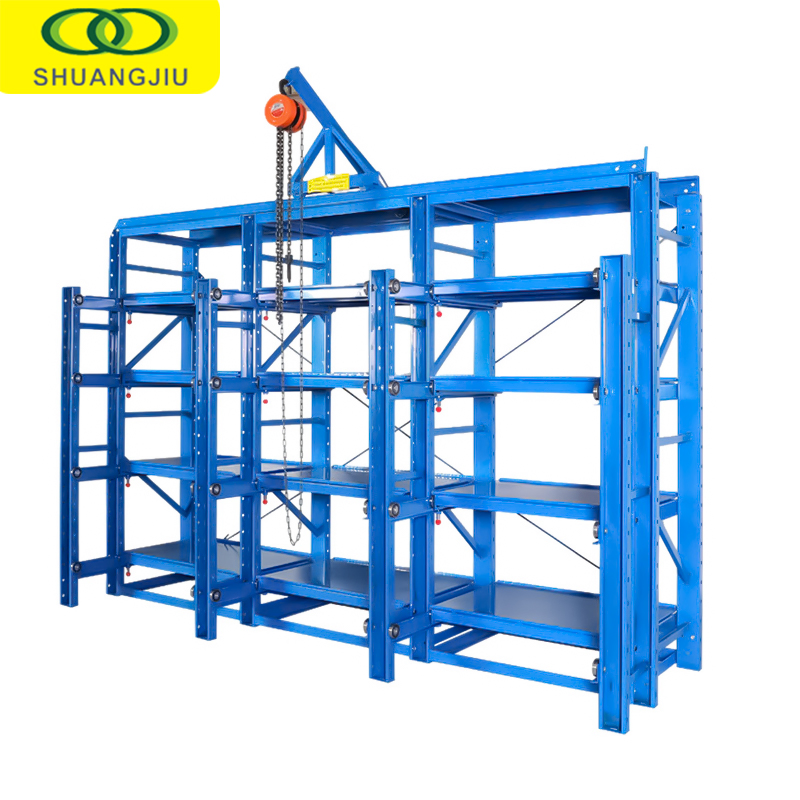

| Remark | 9 drawers and above equipped with overhead crane and hoist, drawer evenly distributed load 800KG, overhead crane load 500KG | Remark | 9 drawers and above equipped with overhead crane and hoist, drawer uniform load 1200KG, overhead crane load 500KG |

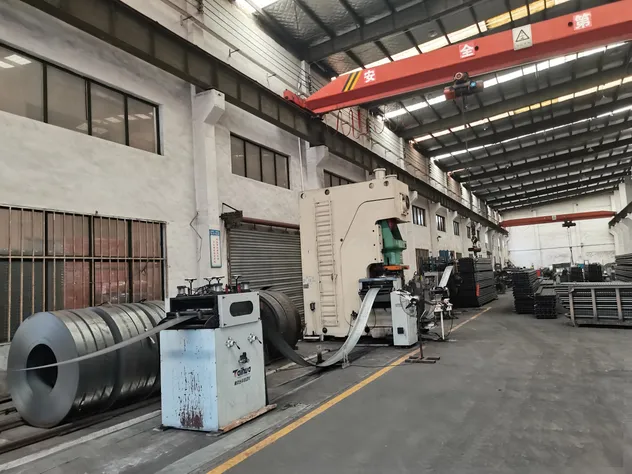

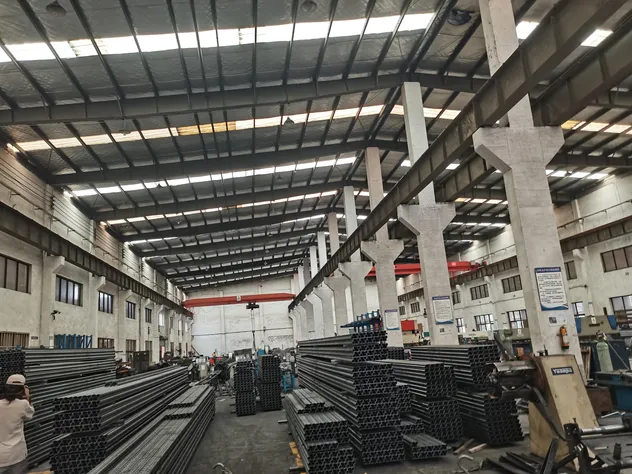

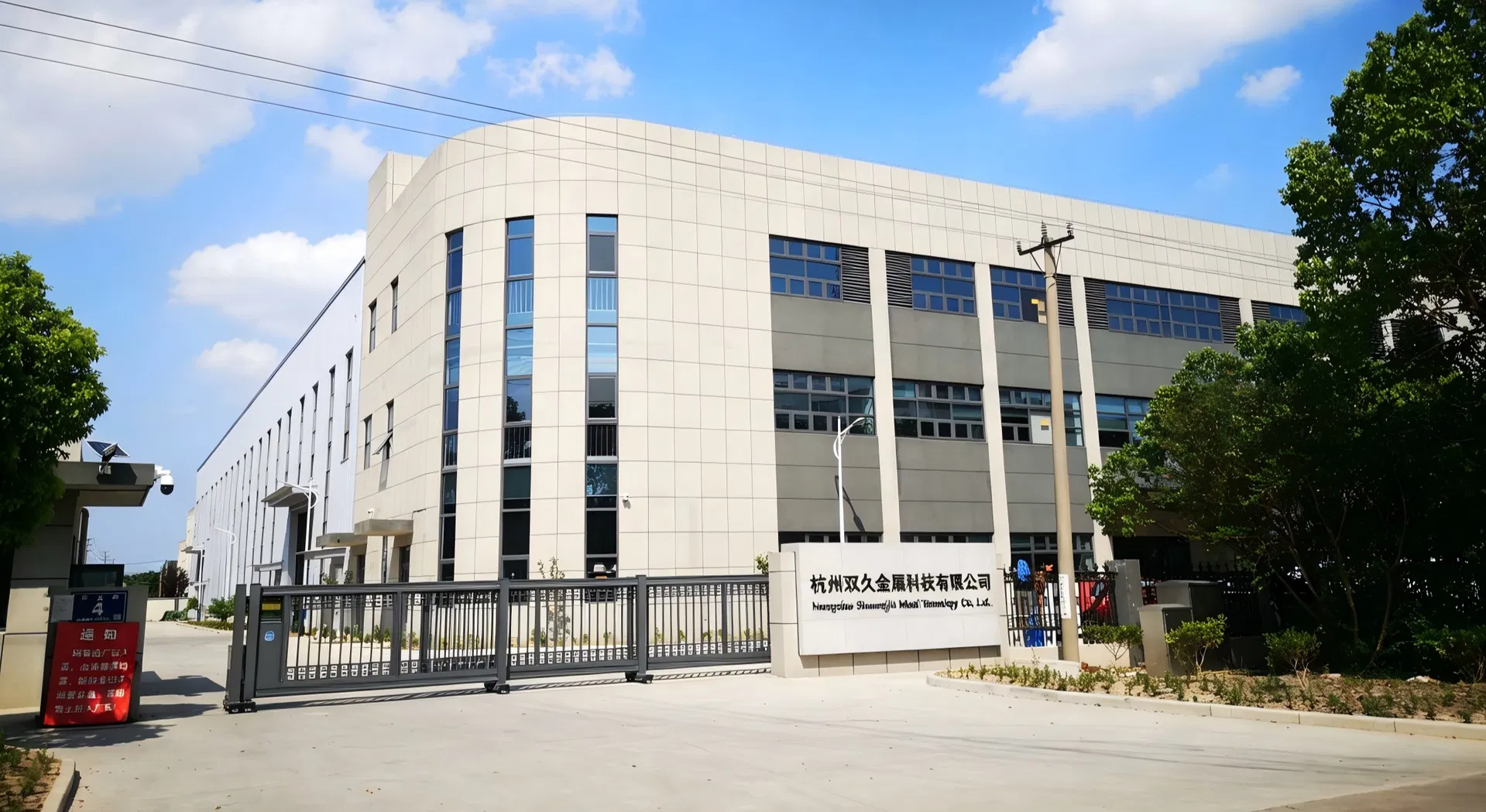

We are not a trading company. We are a real factory with our own production base and an experienced design and manufacturing team.
As one of the earliest companies engaged in logistics equipment R&D and manufacturing, we have focused on one thing for over a decade: building durable, reliable steel storage equipment and workshop furniture for factories and warehouses across all industries.
