Conveyor Roller Molds Storage Rack
Transport Package
Rubble, Carton
Specification
L1265*W1700*H3000mm
Origin
China
HS Code
73012000
Production Capacity
100000tons/Year
Product Description

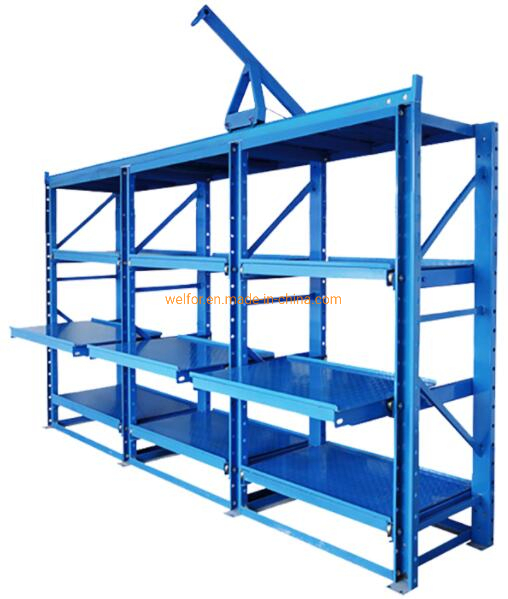

Heavy Mould Storage Of Mold Racking Sliding Drawer Heavy Duty Mould Rack Shelves Mold Racking
Description of Heavy Mould Storage Of Mold Racking Sliding Drawer Heavy Duty Mould Rack Shelves Mold Racking
- Upright: 10# channel steel, oblique-pulling: 40*40
- Strengthening rib: square pipe 40*60
- Panel: 2.5mm diamond plate
- Slideway: 5.0mm steel panel
- Bearing of shafts: "6404" Model
- Load capacity: 2000kg/layer
- Safety pin in per layer
- Can be adjustable 50mm
- Surface treatment: Powder coating
Parts Detailed Pictures of Heavy Mould Storage Of Mold Racking Sliding Drawer Heavy Duty Mould Rack Shelves Mold Racking

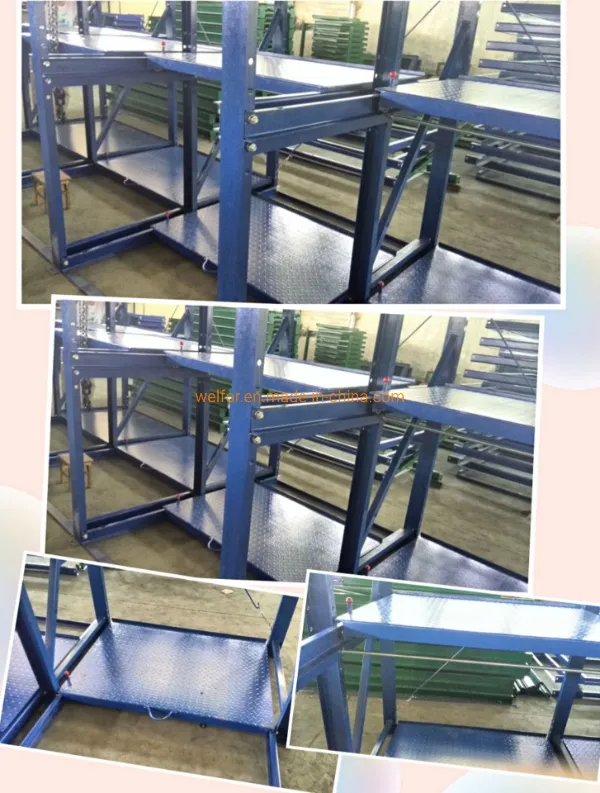

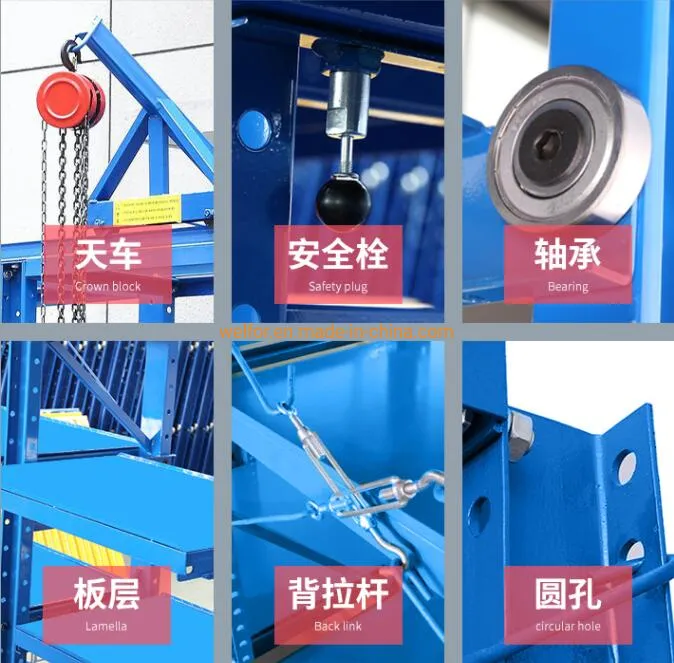

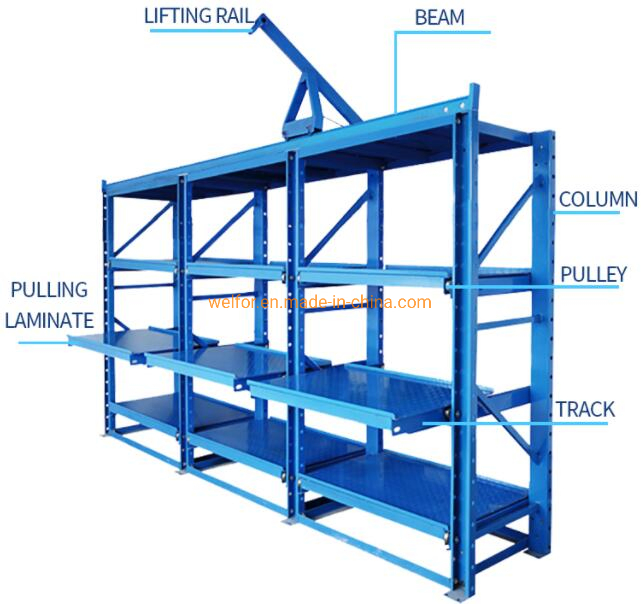

Rails, screw rod, steel panels

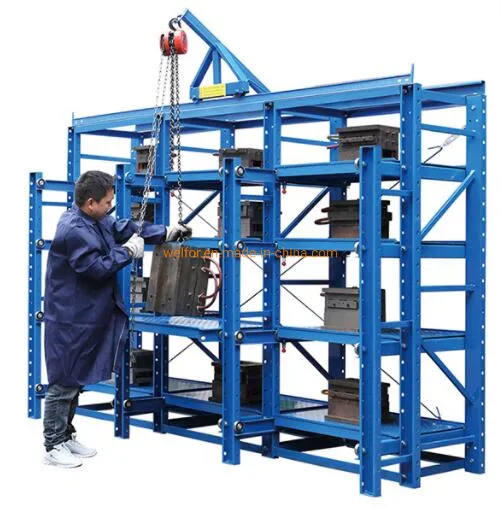

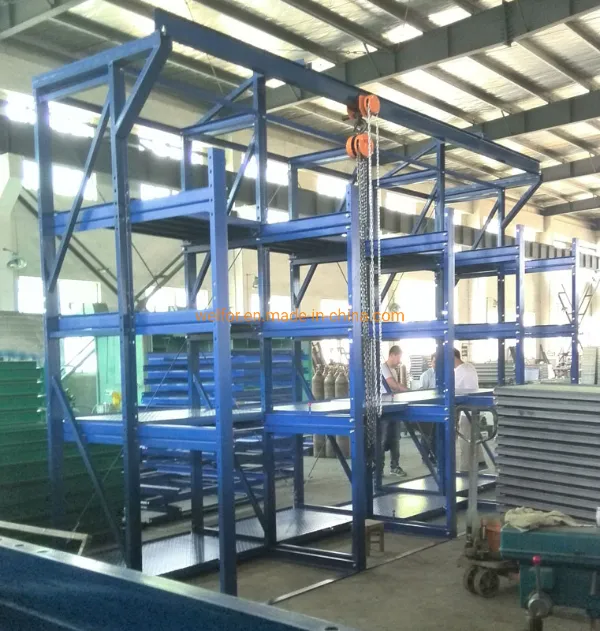

Picture of after installing
| Product Feature |
Specifications & Details |
| Product Name |
Heavy Mould Storage / Mold Racking Drawer System |
| Material |
Cold-rolled steel, steel |
| Height of Rack |
2000mm |
| Loading Capacity of Every Drawer |
100-1000kg |
| Width of Rack |
615mm |
| Percentage of Pull the Drawer |
65% |
| Loading Capacity of Crown Block |
800-1000kg |
| Feature |
Corrosion protection |
| Surface Treatment |
Electrostatic Spray/powder coated or galvanised |
| Applied Scope |
Storage all kinds of moulds |
Features & Capabilities
Drawer racking is mainly used for storage of all kinds of mold such as plastic mold, metal molds, casting mold, powder metallurgy mold and extrusion die. Its main features include:
Safe and reliable
Additional positioning devices to make use of it safe and reliable.
Convenient operation
Sliding and moving by bearing, equipped with electric block; no need of bridge crane and forklift.
Space-saving
Small area covered, however, each set can load several sets of mold.
Simple structure
Composed of various combination components; assemble and disassemble conveniently. The decks can be adjusted.
Exhibition and Package Showcase

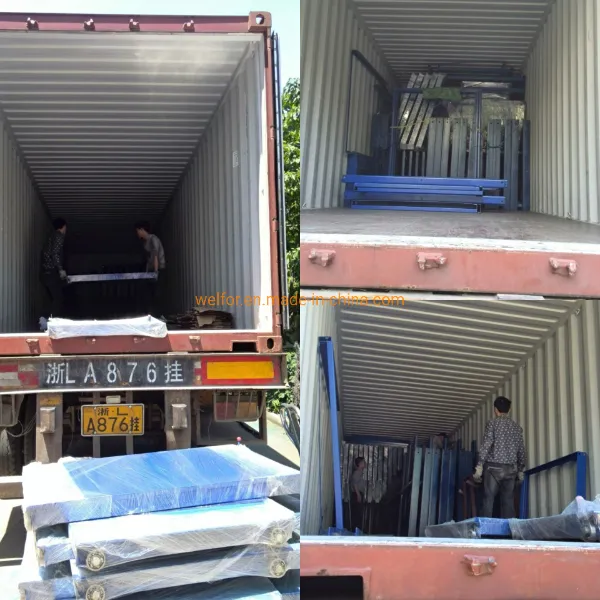

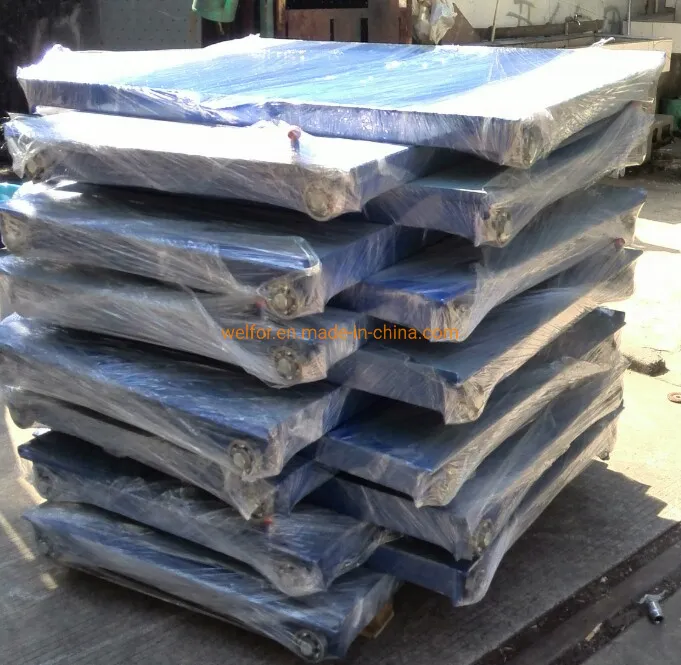

Packaging & Loading Of Heavy Mould Storage Of Mold Racking Sliding Drawer Heavy Duty Mould Rack Shelves Mold Racking

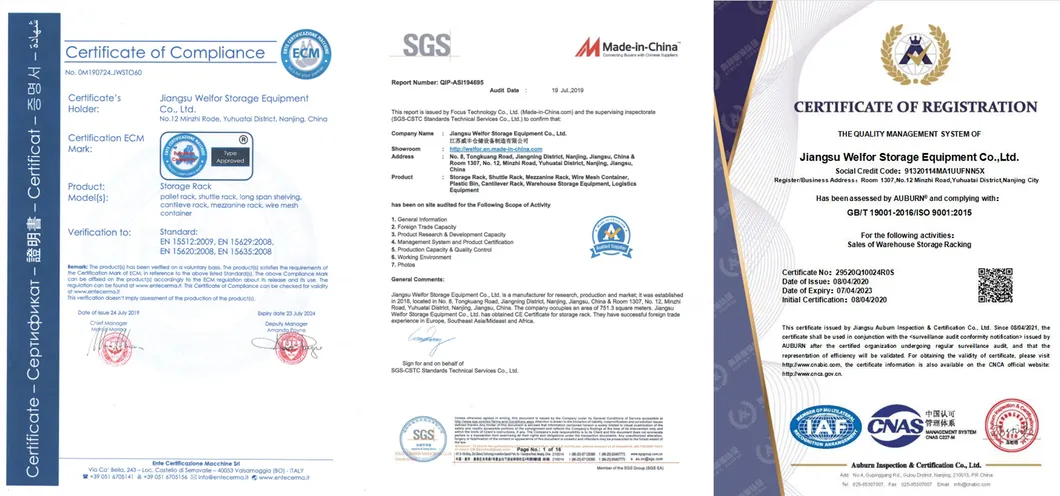

CE & ISO CERTIFICATE
Frequently Asked Questions
What are the main materials used for the heavy mould storage racks?
The racks are constructed using high-quality steel. Specifically, the uprights utilize 10# channel steel, the oblique-pulling is 40*40, strengthening ribs are made of 40*60 square pipe, and the panels feature 2.5mm diamond plate. The slideway is constructed from 5.0mm steel panels with 6404 model bearing of shafts.
What is the load capacity per layer for this mold rack?
The standard heavy duty mold rack has a load capacity of 2000kg per layer. We also support customized loading capacities ranging from 100kg to 1000kg per drawer based on your specific requirements.
Are the shelves and drawer units customizable?
Yes. The mold racking system can be customized based on your specific warehouse size, mold dimensions, and load requirements to maximize storage efficiency.
What safety mechanisms are built into the sliding drawer rack?
Every drawer layer is equipped with safety pins and additional positioning devices. This prevents drawers from sliding out accidentally, ensuring a safe and reliable operation during mould extraction.
How does the drawer mechanism work, and does it require a forklift?
The drawers are equipped with heavy-duty bearings that enable smooth sliding and moving. They can be operated easily with an electric block, eliminating the need for overhead bridge cranes or forklifts directly inside the racking corridors.
What type of surface treatment is applied for corrosion protection?
The surface undergoes an electrostatic spray powder coating process or can be galvanized. This ensures excellent durability, resistance to physical wear, and reliable protection against corrosion.
