Product Description

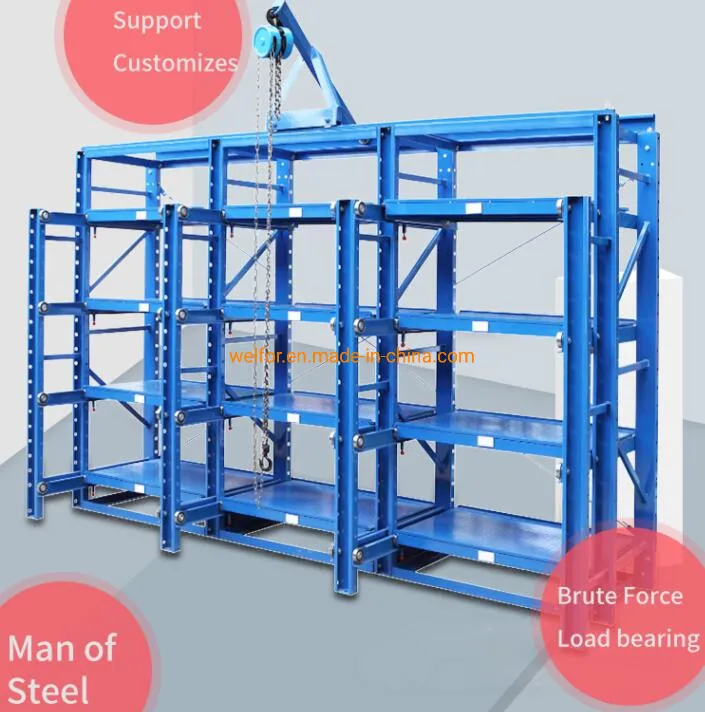

Heavy Mould Storage Of Mold Rack Sliding Drawer Heavy Duty Mould Rack Shelves Mold Racks
Detailed Specifications
📋
Upright & Support Structure
10# channel steel, oblique-pulling: 40*40
💪
Strengthening Rib
Square pipe 40*60
⚙️
Panel
2.5mm diamond plate
🛠️
Slideway
5.0mm steel panel
🔘
Bearing of Shafts
"6404" Model
🏋️
Load Capacity
2000kg / layer
🔒
Safety Lock
Safety pin configured in per layer
↕️
Adjustability
Can be adjusted by 50mm intervals
🎨
Surface Treatment
High-grade powder coating finish

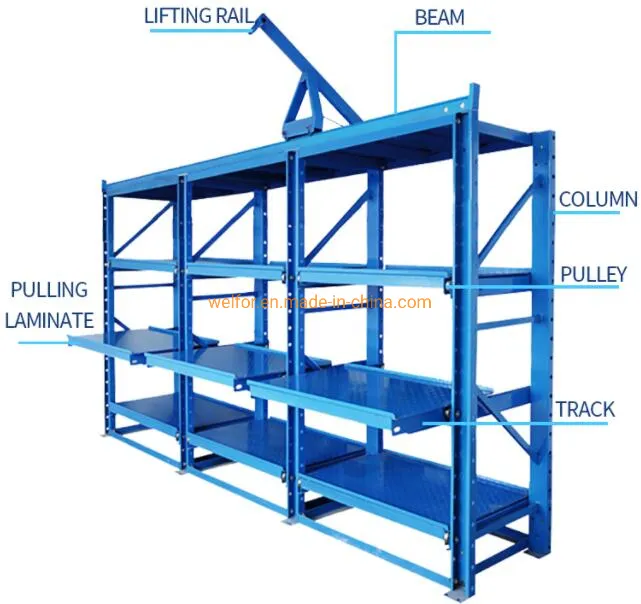

Detailed View of Parts

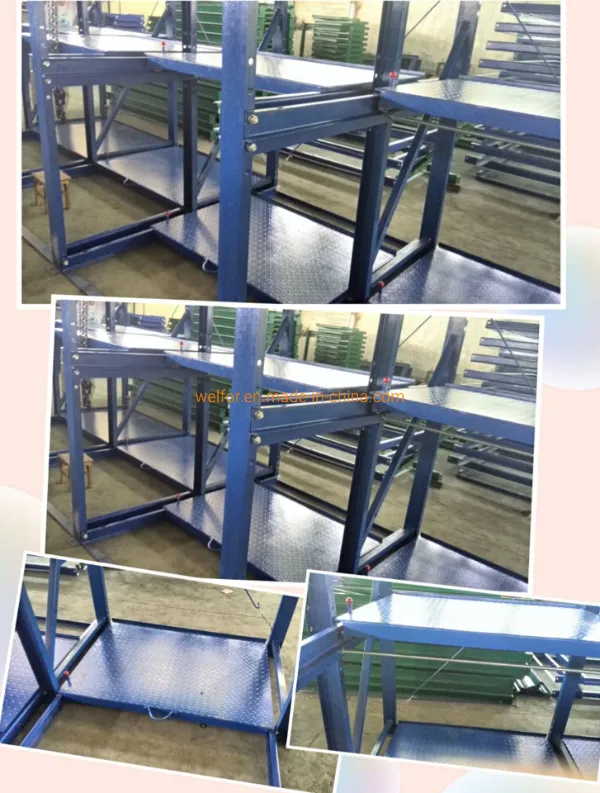

Rails, Screw Rod, and Steel Panels

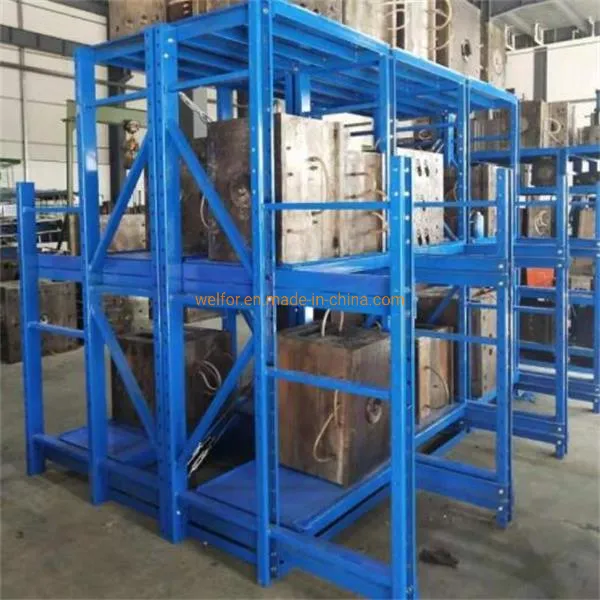

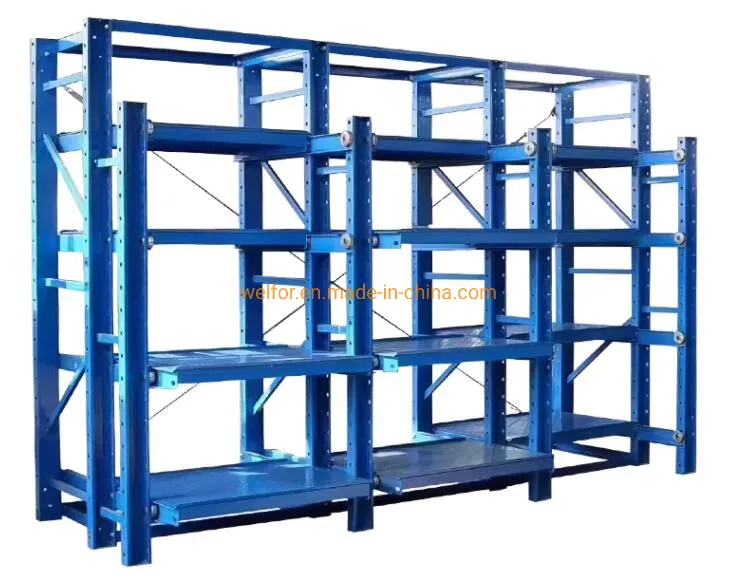

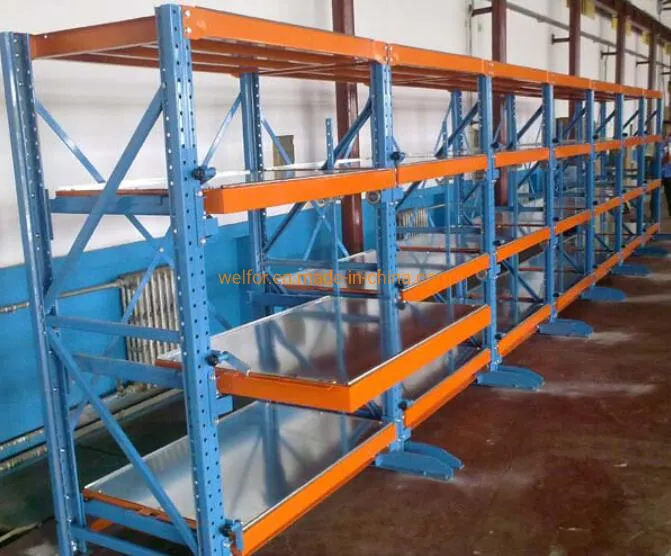

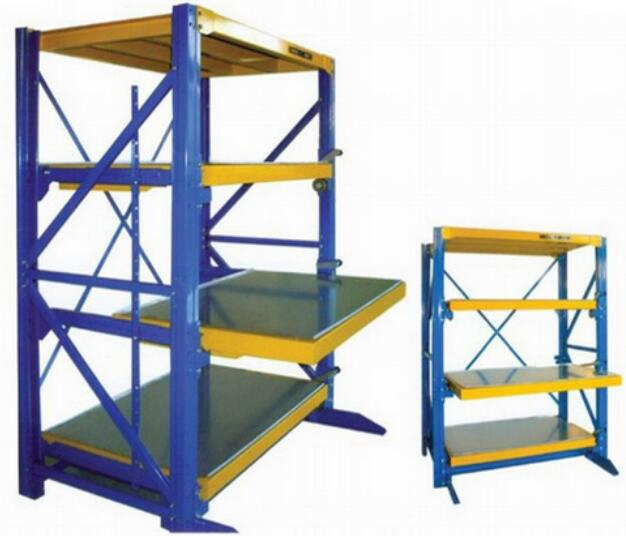

The Whole View
Product Specifications & Parameters
| Parameter Key |
Technical Specification |
| Product Name |
Heavy Mould Storage Mold Rack / Sliding Drawer Heavy Duty Mould Rack Shelves |
| Material |
Cold-rolled steel, high-grade structural steel |
| Height of Rack |
2000mm |
| Loading Capacity of Every Drawer |
100-1000kg |
| Width of Rack |
615mm |
| Percentage of Pull on the Drawer |
65% extension capability |
| Loading Capacity of Crown Block |
800-1000kg |
| Feature |
Corrosion protection & durable construction |
| Surface Treatment |
Electrostatic Spray / Powder coated or galvanised finishes |
| Applied Scope |
Organized storage for all types of industrial moulds |
Key Performance Characteristics
Drawer racking is mainly used for storage of all kinds of mold such as plastic mold, metal molds, casting mold, powder metallurgy mold and extrusion die. Its core highlights include:
🛡️
Safe and Reliable
Equipped with additional positioning and safety interlocking devices to secure safe use.
⚙️
Convenient Operation
Effortless sliding and moving supported by quality bearings. Can be equipped with electric hoists, eliminating the absolute necessity for heavy forklifts.
📐
Space-saving Design
Minimizes floor space footprints while stacking and organizing heavy molds securely.
🔧
Modular Assembly
Simple structures combined modularly for convenient assembly and disassembly. Adjust decks easily according to storage demands.
⚡
Large Load Capacity
Engineered to support heavy loading capacities of over 3000kgs dynamically depending on customized adjustments.
Exhibition Profile
Packaging & Loading Process
Quality Certification (CE & ISO)
Any questions, just leave us a message, we will reply you within 5 minutes from Monday to Friday, and within 1 hour during weekends and holidays.
Frequently Asked Questions (FAQ)
What types of molds can be stored in these racks?
Our drawer mold racking systems are primarily engineered to store diverse industrial molds, including injection plastic molds, metal dies, casting molds, powder metallurgy molds, and extrusion dies.
What is the loading capacity per drawer layer?
Standard drawer levels hold between 100kg to 1000kg per layer, with customized structures capable of exceeding 2000kg to 3000kg load capacity per layer depending on your heavy-duty storage specifications.
Can the shelf layout and design be customized?
Yes. All mold racks are custom-built to order. We provide customized configurations based entirely on your specific warehouse footprint, heights, and specific load requirements with free layouts provided by our technician team.
How far do the sliding drawer components pull out?
Standard configurations feature a convenient drawer pull-out extension rate of approximately 65%. This mechanism makes handling components via cranes or hoists safer and more convenient.
What safety mechanisms are built into the mold rack?
Each sliding drawer layer features high-reliability safety positioning pins and lock configurations to ensure drawers remain securely locked inside the structural upright frames when not actively accessed.
What quality standards and certifications do these racks meet?
Our mold racks are manufactured under stringent quality guidelines and are fully compliant, holding both ISO international quality management system certificates and CE certifications.
