Electric Steel Pallet Mobile Hardware Warehouse Heavy-Duty Mold Storage Rack with Storage Rack

Customization:	Available
After-sales Service:	Yes,365 Days Are Available
Warranty:	2 Years

Overview

Usage

Tool Rack, Beverage, Clothing, Tools, Supermarket, Food, Industrial, Warehouse Rack

Material

Steel

Structure

Rack

Type

Pallet Racking

Mobility

Mobile

Height

5-15m

Weight

1000kg-2000kg/Pallet

Closed

Open

Development

Conventional

Serviceability

Common Use

Surface Treatment

Powder Coating/Galvanized

Certificate

As4084,Fem,CE,ISO9001

Color

Ral Color System

Steel Material

Q235/Q355

Transport Package

Standard Export Package

Specification

Customized

Origin

China

HS Code

7308900000

Production Capacity

10000t/Year

Product Description

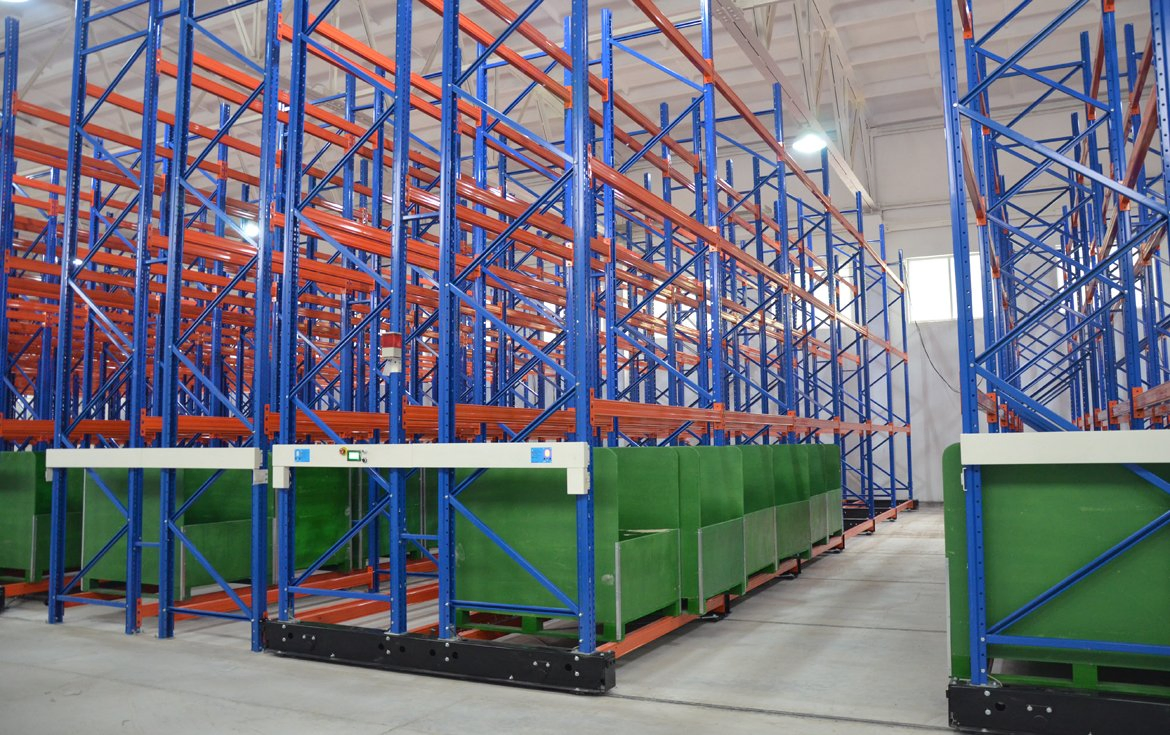

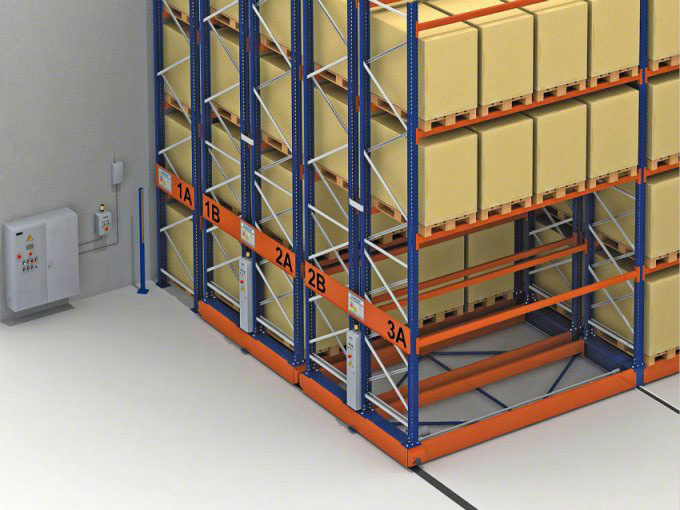

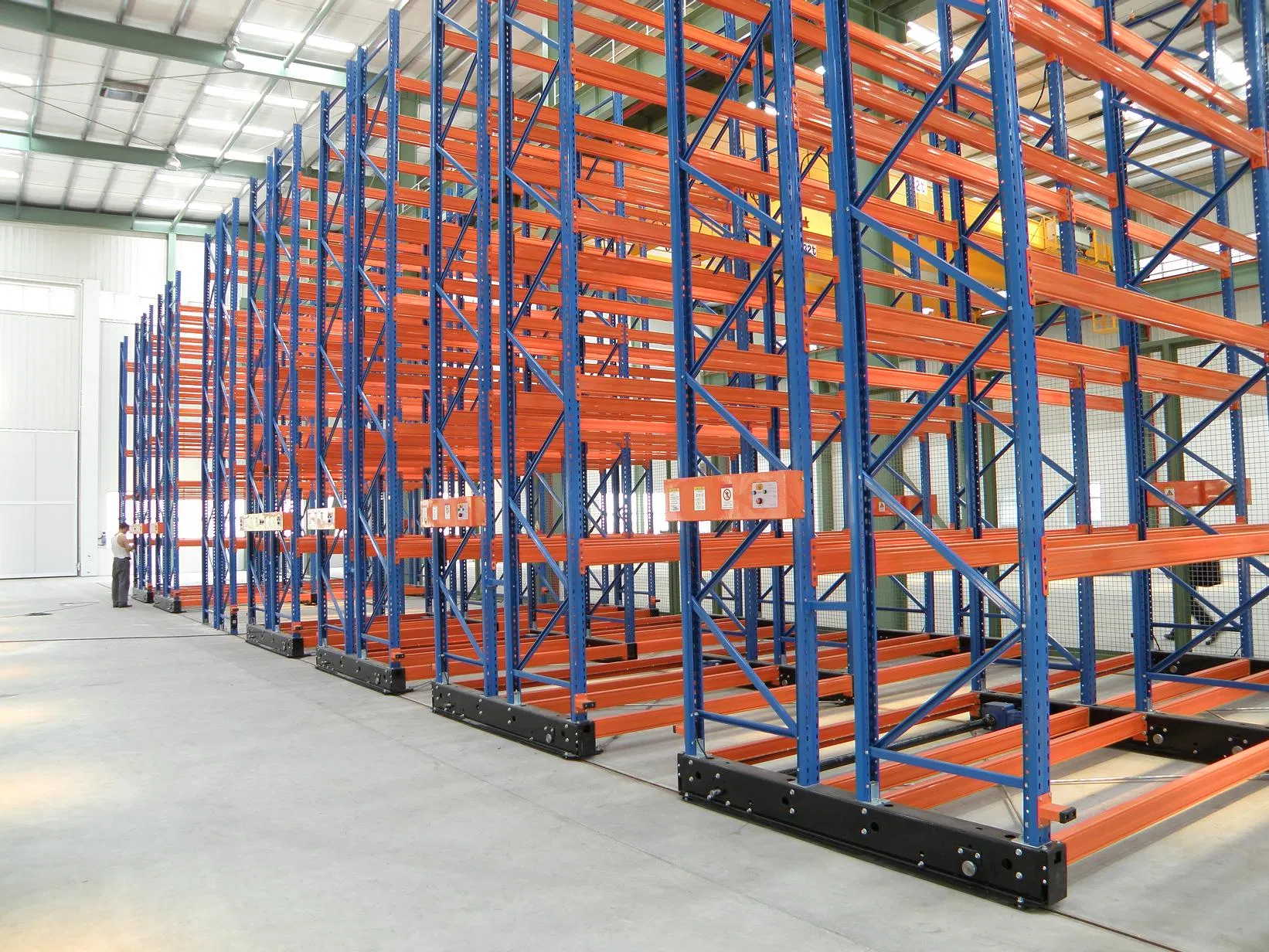

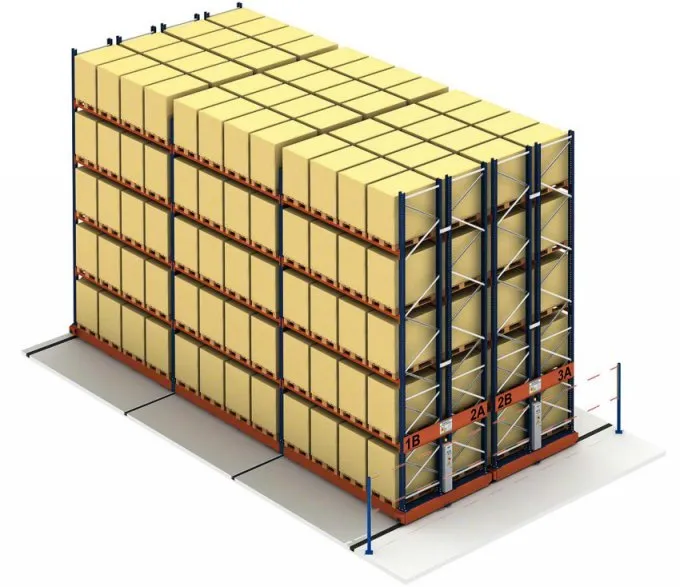

Heavy Duty Pallet Electric Movable Rack

Electric mobile rack takes full advantage of the warehouse space 3 times space using rate as the general shelves. Each unit could be moved separately on the guide rail. It is easy to operate drive a unit just press the button. Every rack has its own transmission equipment link to electromotor, and equipped with safety device. It is mostly applied in refrigeratory or anti-explosion warehouse and provides a 100% access to load and retrieve.

Frame depth	D600-D1400 Require 3 posts for bigger depth	Post section	8060, 9068, 9070, 10075, 12075, 12095, 140*120
Frame Height	H2000*H11700 Require post splice kit for higher post	Loading capacity	8000kg-32000kg/bay

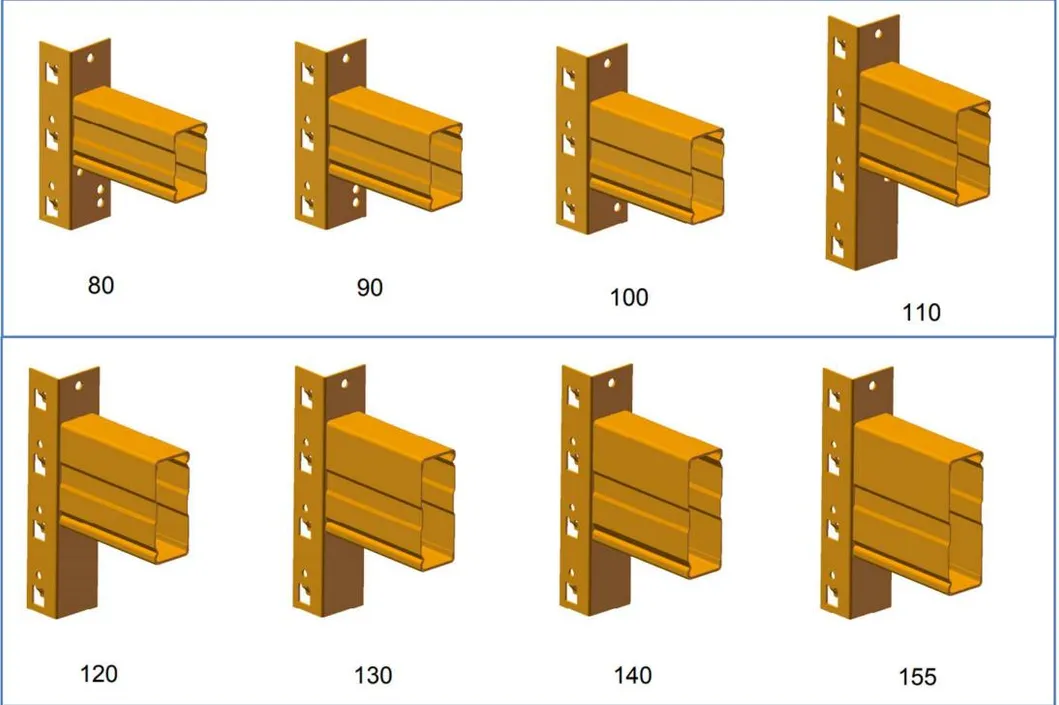

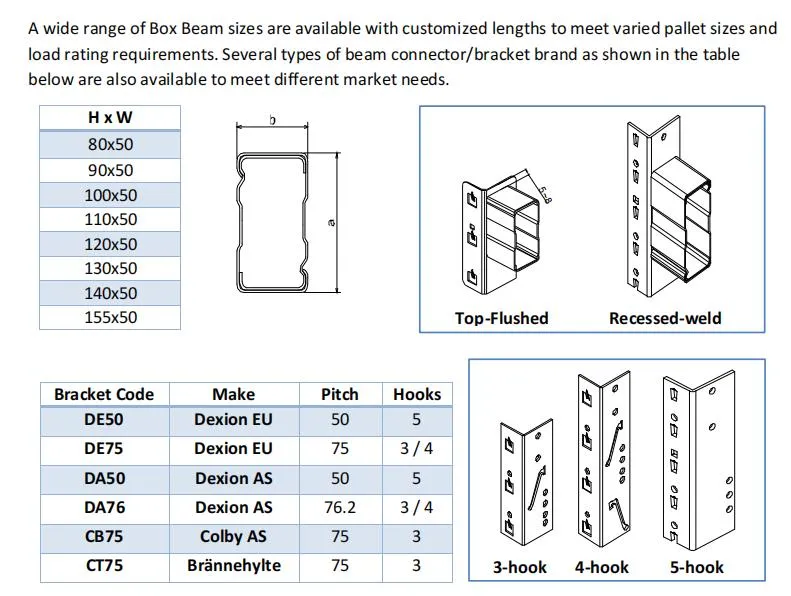

Box beam	W1000-W4000	Box beam section	8050, 9050, 10050, 11050, 12050, 13050, 14050, 15550
Accessories	100% 8.8G bolt & nut	Loading capacity	800kg-4000kg/level
Surface treatment	Powder coating & Galvanization	Painting Colour	Blue, Orange, Grey(Ral 5015, Ral2004, Ral7035, etc)
Factory capacity	25 * 40HQ/month	Factory inspection	"FIRST-PIECE" at every stage of production, for every order.
Max loading per container	25000kg	Shipping package	Use Dunnage bag to avoid damage
Compliance	European FEM, Australia AS4084	OEM	Acceptable

Electric Steel Pallet Mobile Hardware Warehouse Heavy-Duty Mold Storage Rack with Storage Rack

Product Parameters

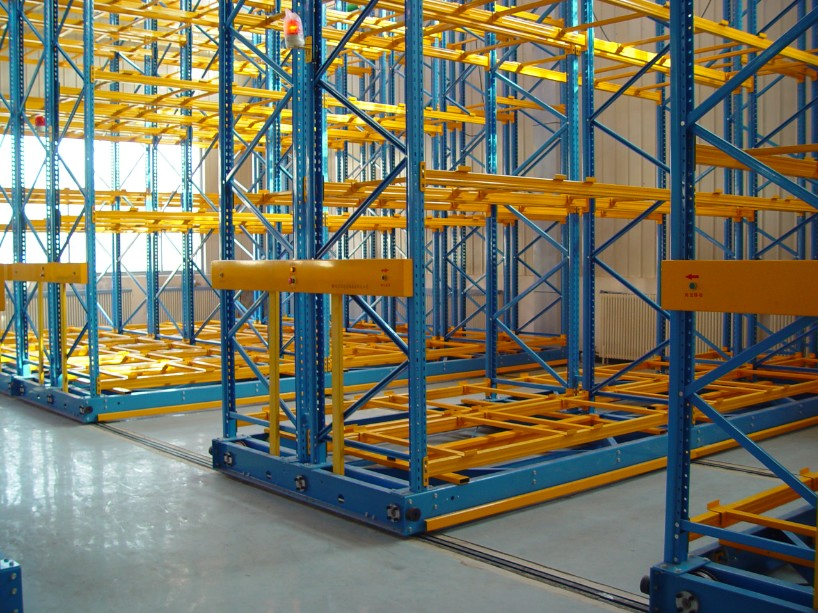

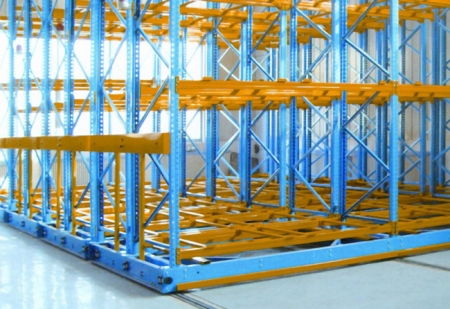

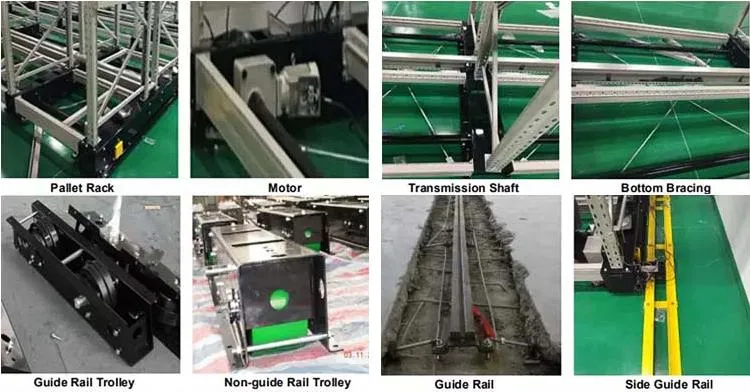

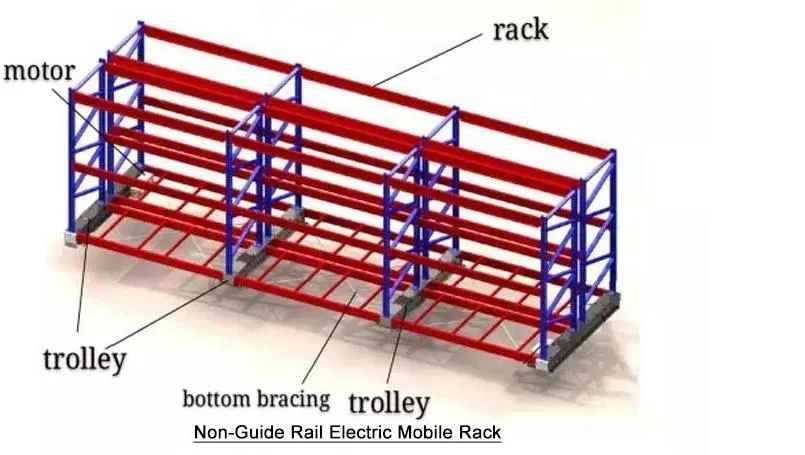

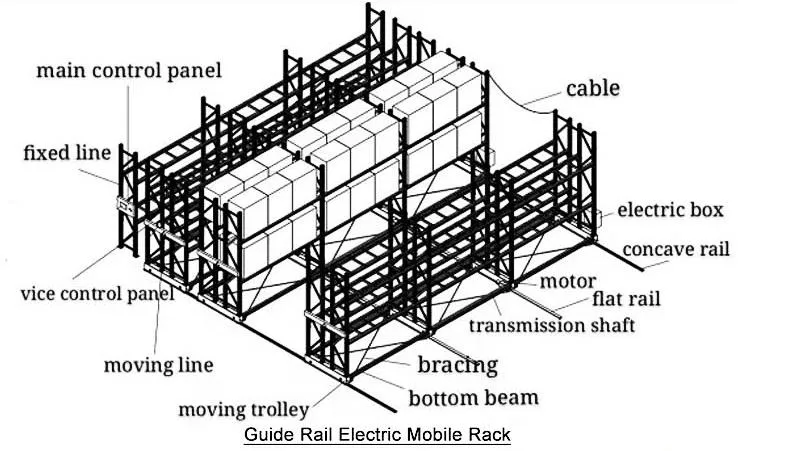

Electric Mobile Rack is the most common form of density storage, with the aid of forklift to access the goods. Its space utilization rate can reach more than 85%. The electric mobile rack is made up of track (or guide device), trolley (walking device), motor, rack, detection device, operation panel and software control system. According to the rail style, it is divided into guide rail type and non-guide rail type.

Parameter	Guide Rail	Non-Guide Rail
Loading Capacity	32 tons/unit	-
Wheel Material	Cast Iron	Polyurethane
Width of Trolley	210/226mm	300mm
Cost	Normal	High
Running Speed	Max 10m/min
Notch	Need	No Need
Guidance	Rail Guidance	Mechanical Guidance
Power of Motor	0.4KW, 0.75KW

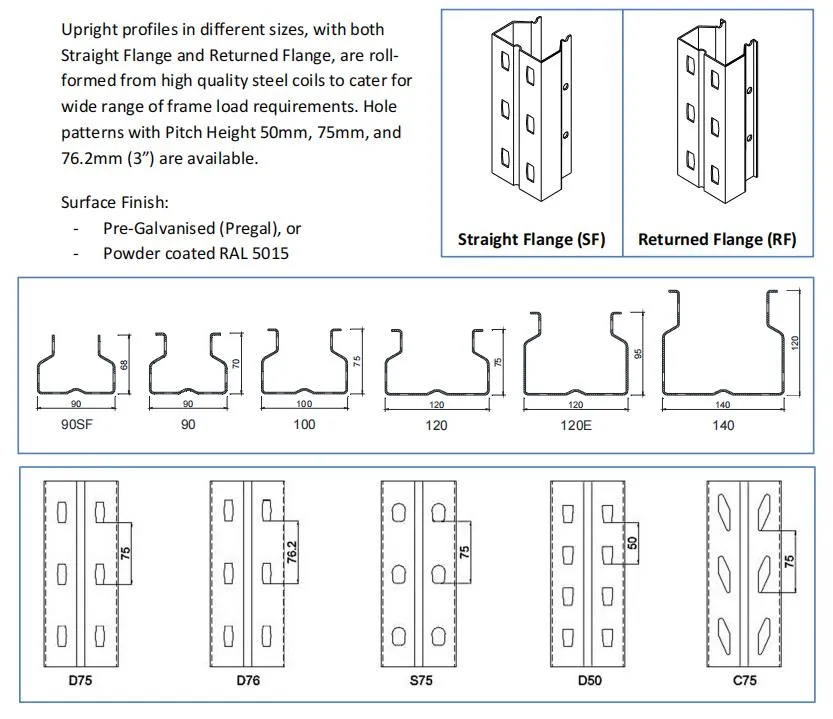

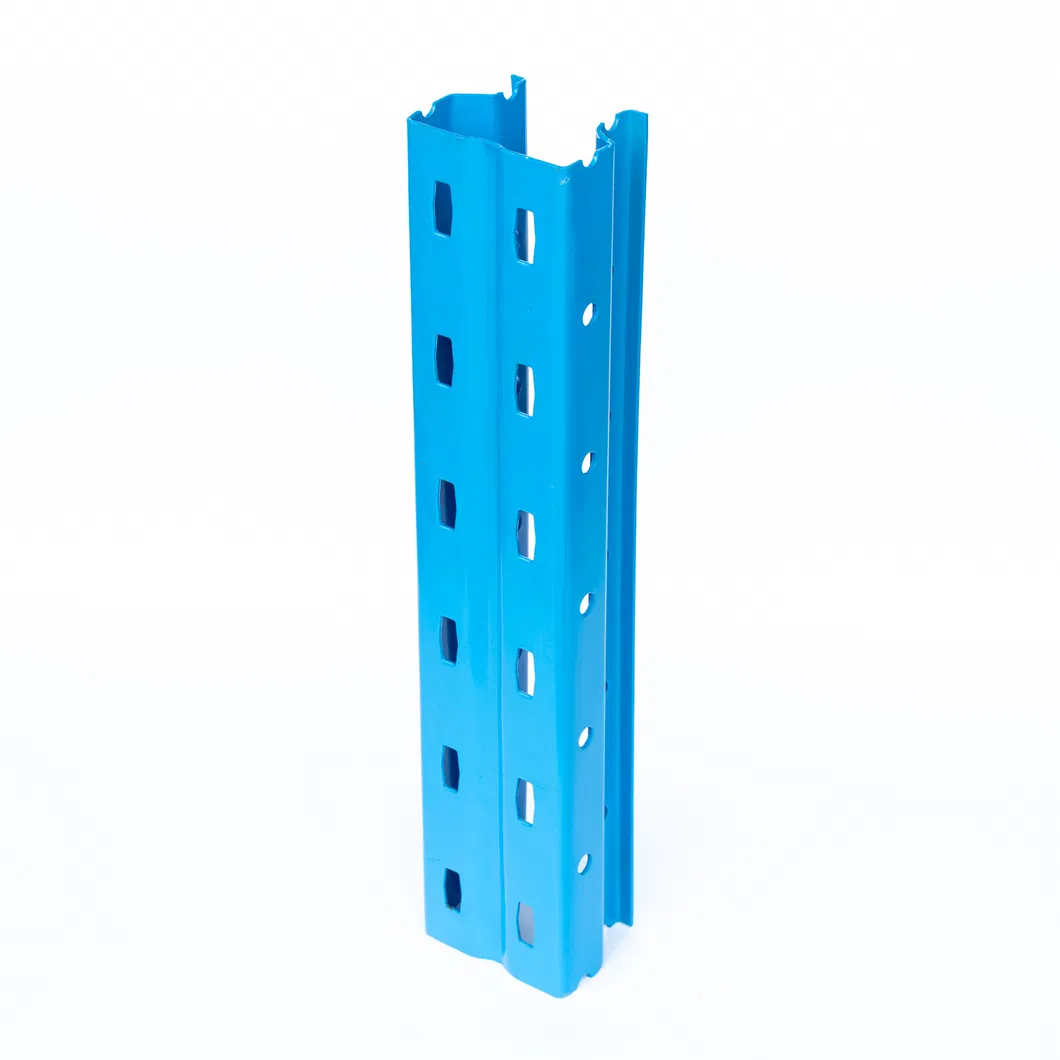

Upright Profile:(1.8mm-3.0mm)

Beam Profile(1.5mm-2.0mm)

Advantages

Increases storage capacity by more than 85%
Reduced operating and real estate costs through the system's outstanding space utilization (surface area utilization of more than 80%).
Suitable for multiple type of goods with small quantity.
Direct access to the pallet slots prevents unnecessary and time-consuming relocations.
Simple structure, easy to operate.
Application: Earthquake-proof design, deep-freeze warehouses, manufacturing industry, food and drug industry, new energy industry.

Our Main Products

Certifications

Packaging & Shipping

Company Profile

FAQ

1 Are you distributor or manufacturer?

We are professional and leading manufacturer for nearly 20 years. We produce and export high quality pallet racking, Multi shuttle system and Radio shuttle racking, ASRS which have a very high reputation among our customers.

2 What makes you different with others?

(1) Our Excellent Service - For a quick, no hassle quote, we promise to reply with a price within 24 hours - sometimes even within the hour.
(2) Our quick manufacturing time - For Normal orders, we will promise to produce within 20-30 days. As a manufacturer, we can ensure the delivery time according to the formal contract.

3 What is the installation and debugging services?

We have installation teams with rich overseas experience. For radio shuttle car, we will send engineers to the site for debugging and training. For racking systems, we can install by our own teams or appoint engineers to guide the operation.

4 What is the MOQ can order?

Normally is one 20ft container, but large quantity comes with good price.

5 What is the payment?

T/T or LC.
