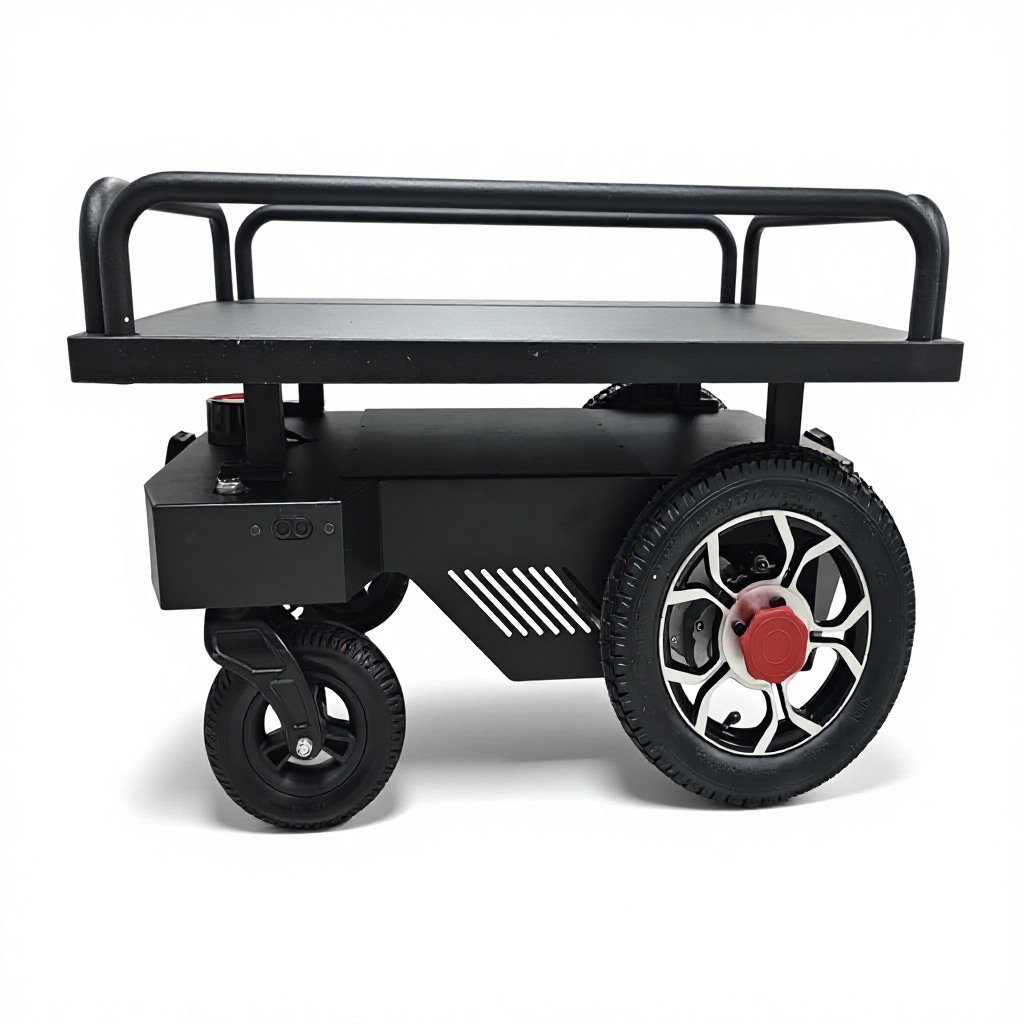

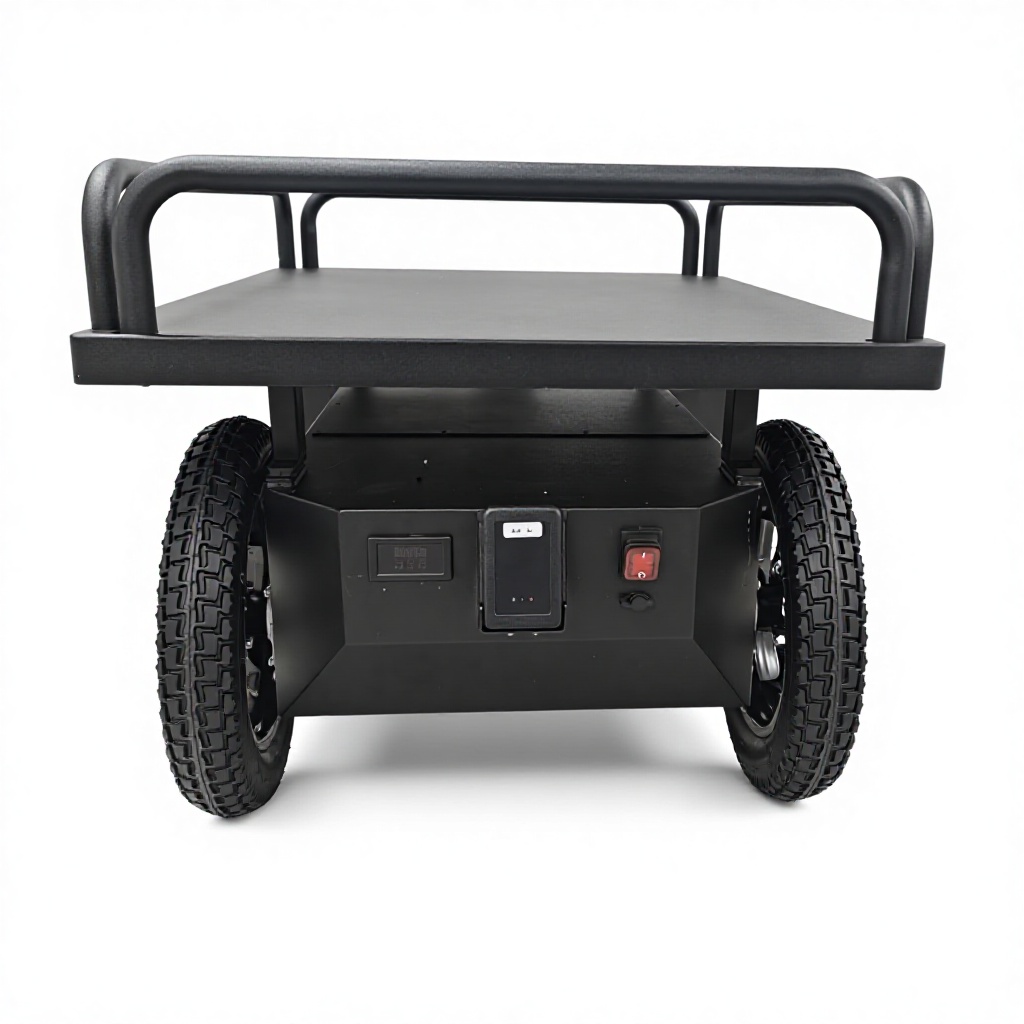

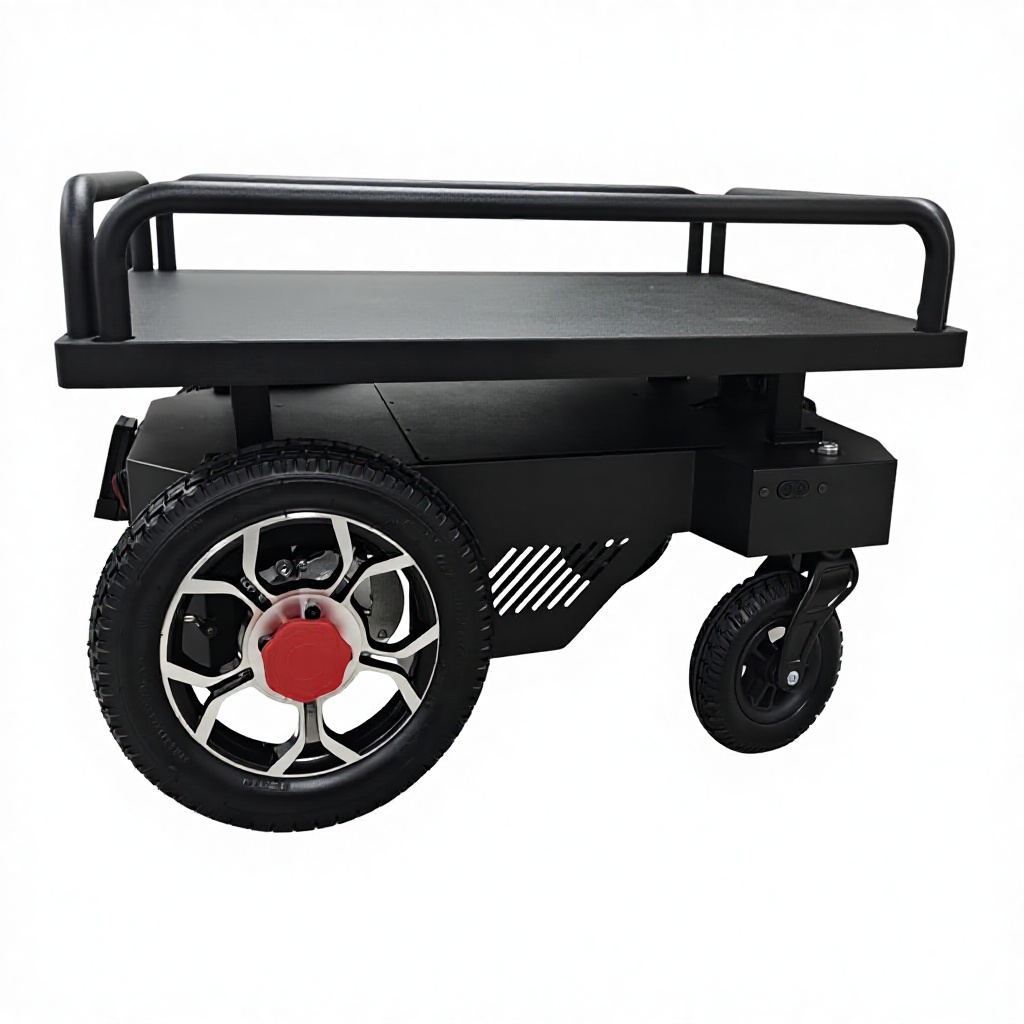

Low Maintenance Cost Efficiency Improvement Electric Multi-Functional Trolley Following Robot for Warehouse Picking

Send Inquiry

Product Description

Parameter	Specification Details
Driving form	Two-wheel drive/four-wheel drive
Body size	750550500 (including fence)
Power and mode	24V250W2 (two-wheel drive) 48V350W2 (two-wheel drive) 24v 250w4 (four-wheel drive) 48V350W4 (four-wheel drive)
UWB tracking accuracy	The distance is ±10cm, and the angle is ±5 (unobstructed)
Detection range	Dual base station omni-directional 360 follow-up
Turning form/turning radius	Differential steering/original steering
Speed	Up to 7.5KM/H (adjustable)
Rated load	100KG(24v)/300KG(48v)
Obstacle avoidance mode	Stop/bypass obstacles
Control mode	Follow/Remote Control/Hand Push

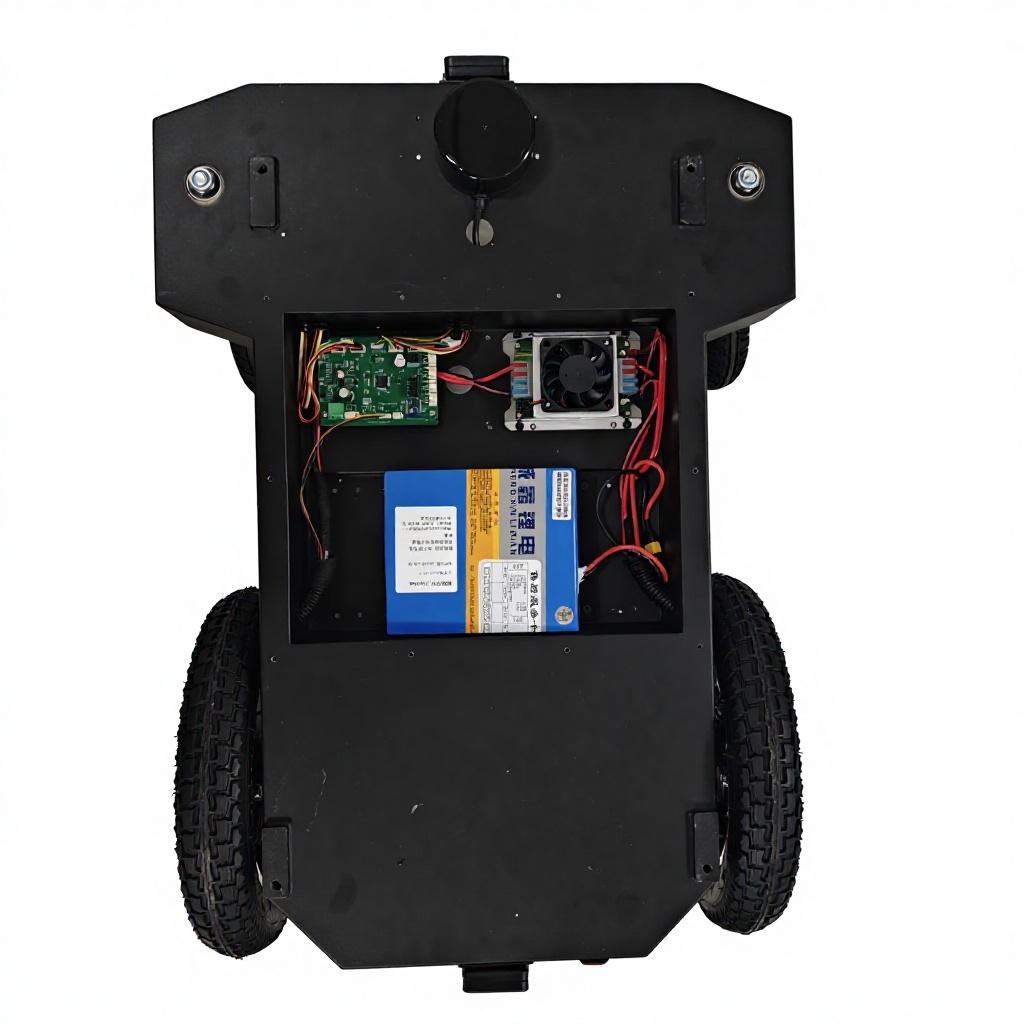

Battery	24V20AH/48V20AH
Charging time	4 hours
Endurance	15KM

1. What is the maximum payload?

We offer 100 kg and 300 kg versions. The 100 kg version uses a 24V motor system, and the 300 kg version uses a 48V motor system.

2. What are the differences between the models?

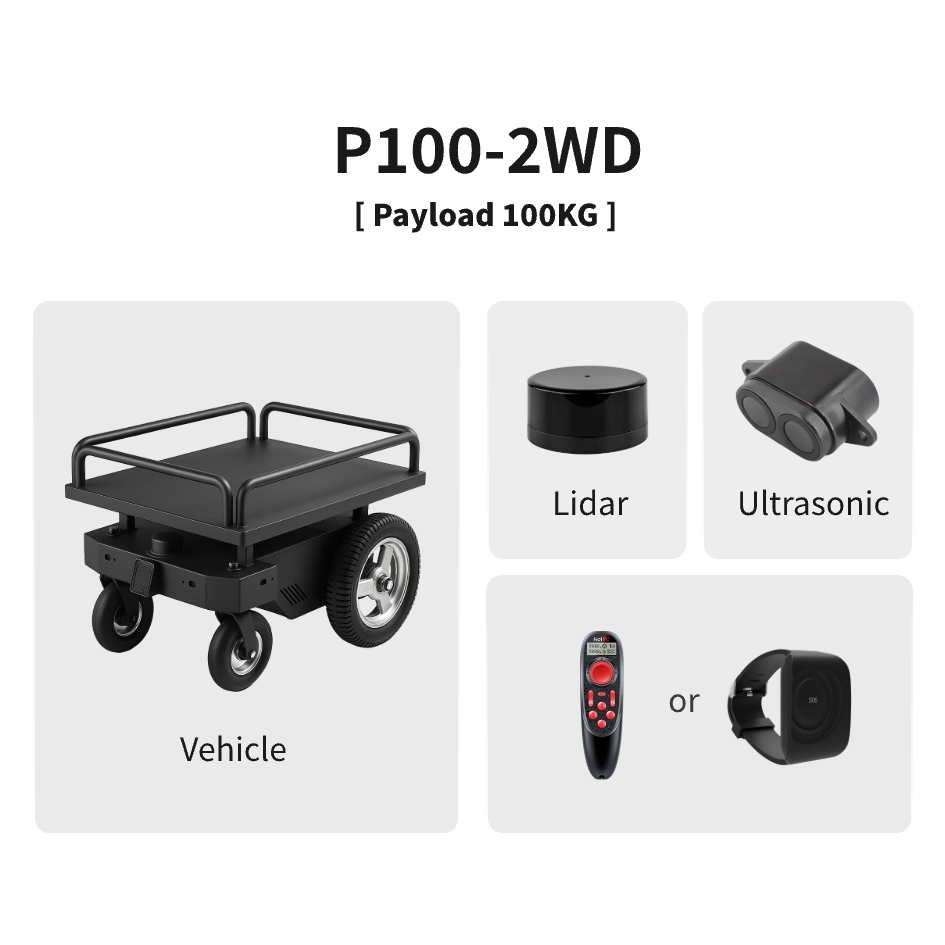

Differences are mainly in payload, drive type, and obstacle avoidance (2WD/4WD; ultrasonic only vs LiDAR + ultrasonic).

3. What is included in the package?

Default package: complete cart + 2-in-1 controller (follow + remote control). Optional: wristband tag + standard remote controller.

4. Can I adjust the follow distance and parameters?

Yes. Follow distance is adjustable from 1-7 m, and we provide an app for parameter settings.

5. What is the range per charge?

About 15 km per charge, depending on payload, speed, and terrain.

6. What is the battery charging time and overall endurance?

The battery requires 4 hours to fully charge, providing an endurance range of approximately 15KM.
