Lush Rack
1 / 5
| Name | Cantilever Racking | Material | Q235B Steel |
| Size | Customized Size | Color | Customized Color |
| Depth | Customized | Weight Capacity | 1000kg/arm |
| Width | Customized | Height | Customized |
| Finish | Powder coating; Hot Dip Galvanized | ||
| Packing | Export Package | ||
| Certification | RMI/CE/ISO/TUV/AS4084-2012 | ||
| MOQ | One 20ft/40ft Container | ||
| Free Sample | Available (Delivery Cost on Buyer) | ||
| OEM | Available | ||
Connect 1 row of MK bracing brackets at the inside of columns positioned at ends, meanwhile connect 2 rows of brackets at both sides of columns in intermediate, as shown.

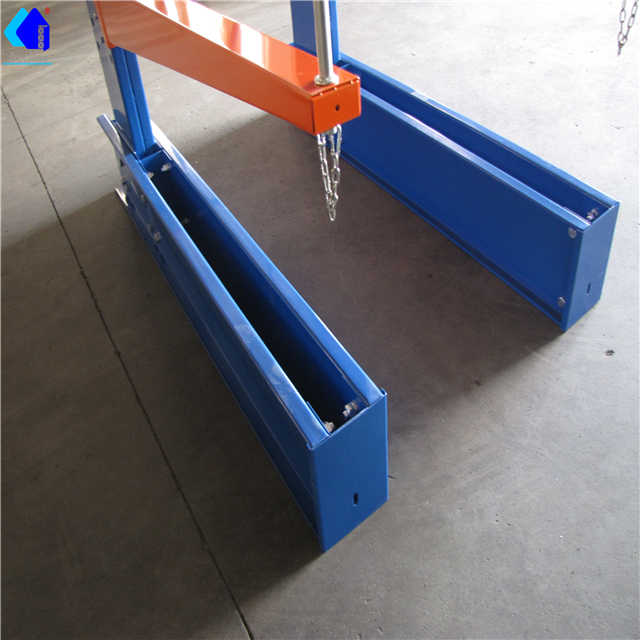

Position the column (1) vertically into the fixing MK base, as shown. Connect the column and the base with M20x40 bolts (7). Fasten the other M20x40 bolts (7) on the base. Recommended torque: 86~103N.M
The standard composition of the vertical bracing, after it has been fastened to the columns, is as shown in the illustration.
The bases must be leveled with metal leveling plates if necessary. Then, fully tighten the M20x40 bolts(7) on the base front as indicated in step 2. Using the drill-holes in the bases for fastening them to the floor, use a 14mm bit and drill a hole with a minimum depth of 100 mm. Remove the drilling remains and carefully hammer in the fastening M10x160 anchors(11). Firmly bolt the fastening plate in place. Recommended torque: 50 NM

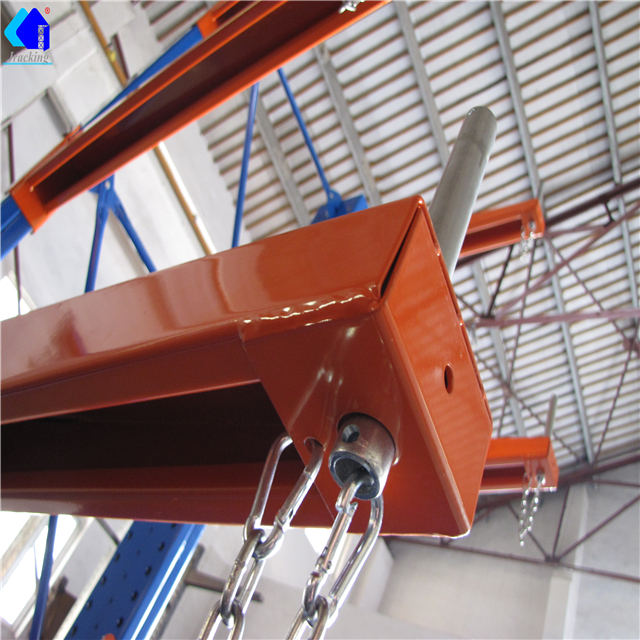

The arm (12) is fastened to the column (1) using safety pins 29x140 (13). Fit the arms according to the heights and distribution shown on the corresponding project drawing, where applicable.

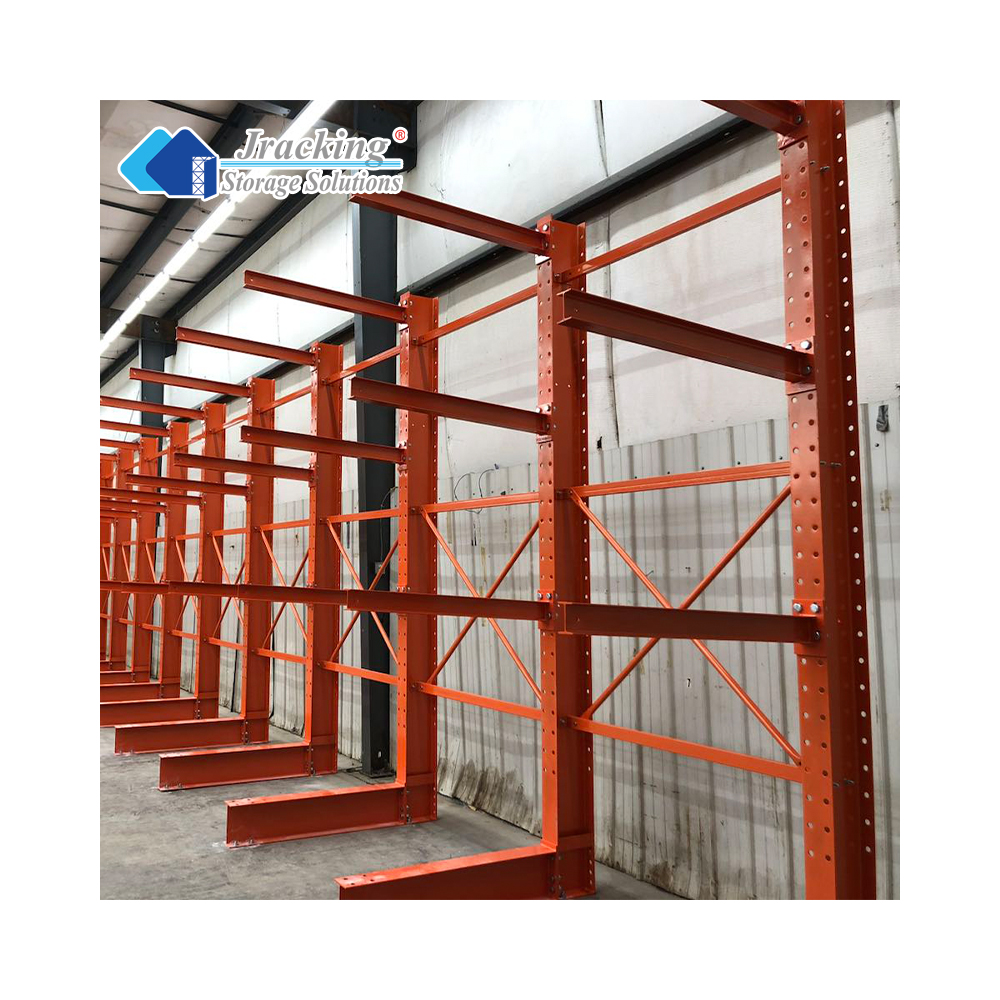

Finally, the completed structure should look like the illustration.
1) Payment terms: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading. L/C and O/A are also available.
2) Lead time: Normally in 20-25 days after deposit received.
3) Sample policy: Samples are always available for each model and can be ready in 7-15 days once payment is received.
4) Shipping port: Shanghai / Nanjing China.
5) Discounts: We offer competitive discounts for large quantity orders.
1) Sea freight: We will update ocean freight estimates once you confirm your designated destination sea port.
2) Client-designated agent: Provide us with the contact details of your shipping agent, and we will coordinate and arrange the delivery process.
1) Inquiries related to our products or pricing will be replied to within 12 hours.
2) Highly-trained and experienced staff will answer all inquiries in fluent English.
3) OEM & ODM customization options to help design bespoke racking solutions.
4) Experienced professional engineers to deliver optimized layout and storage solutions.
Design drawing approval → Confirm drawing → Quotation → Proforma Invoice (PI) → Confirm PI → Arrange 30% deposit → Manufacture → Quality Control (QC) inspection → Pay balance → Shipping.
1) Payment flexibility: We can support O/A payment terms of 40-60 days.
2) Speed: Expedited shipping options available for rush orders.
3) Price: Factory-direct competitive sales pricing.
4) Warranty: Two years warranty coverage, with replacement parts dispatched directly to you.
No strict MOQ limit exists, but larger volumes yield better pricing. We recommend an order size of at least one 20ft container (approximately 15 tons) to optimize shipping efficiency and value.
For custom specifications requiring new production tooling, the cost of opening the mold is charged prior to the first order. This fee is partially or fully refunded once orders reach a designated volume threshold.
