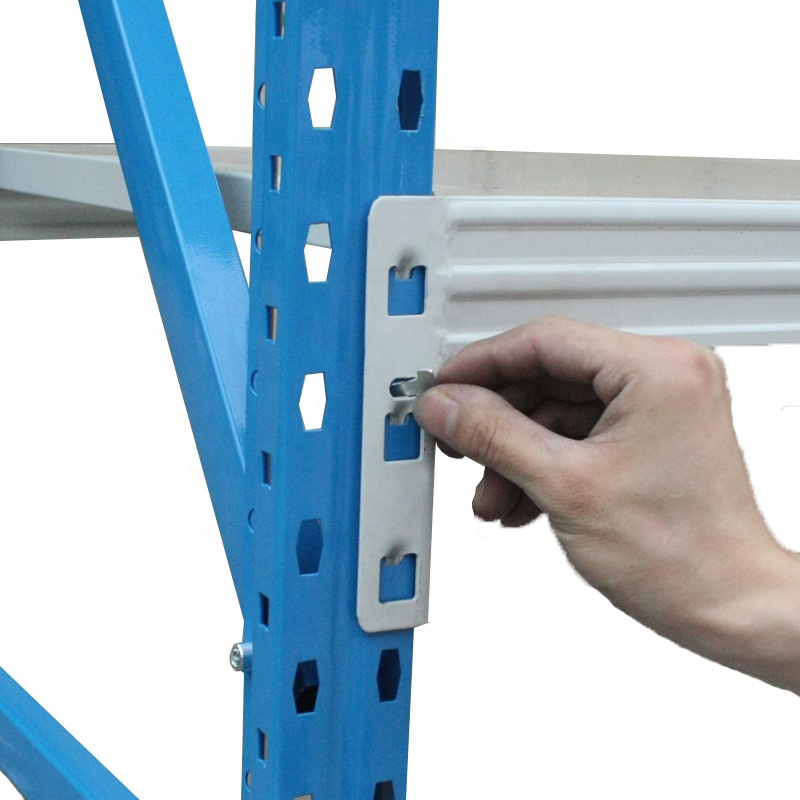

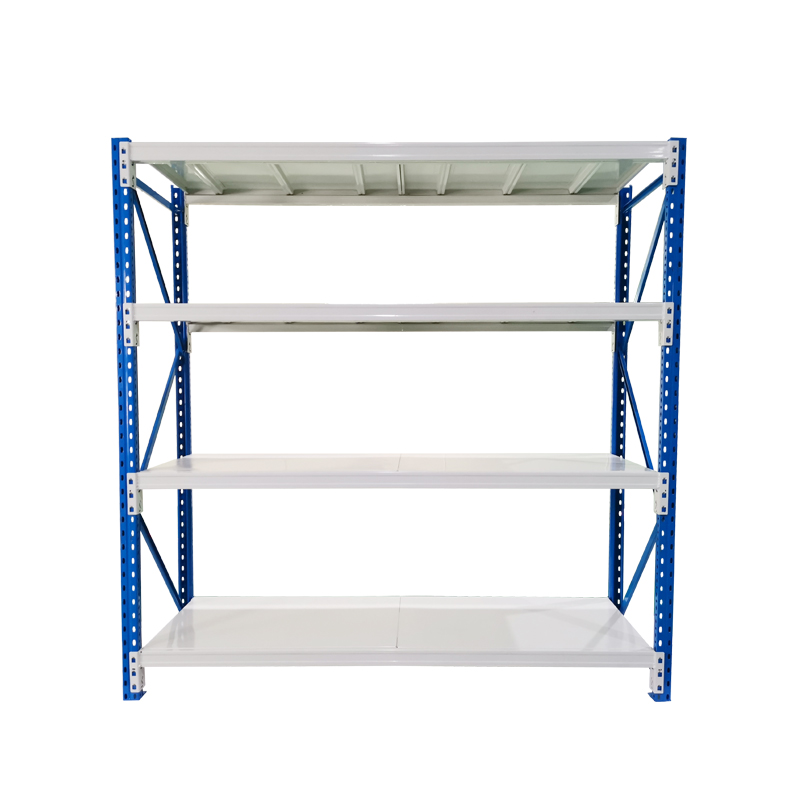

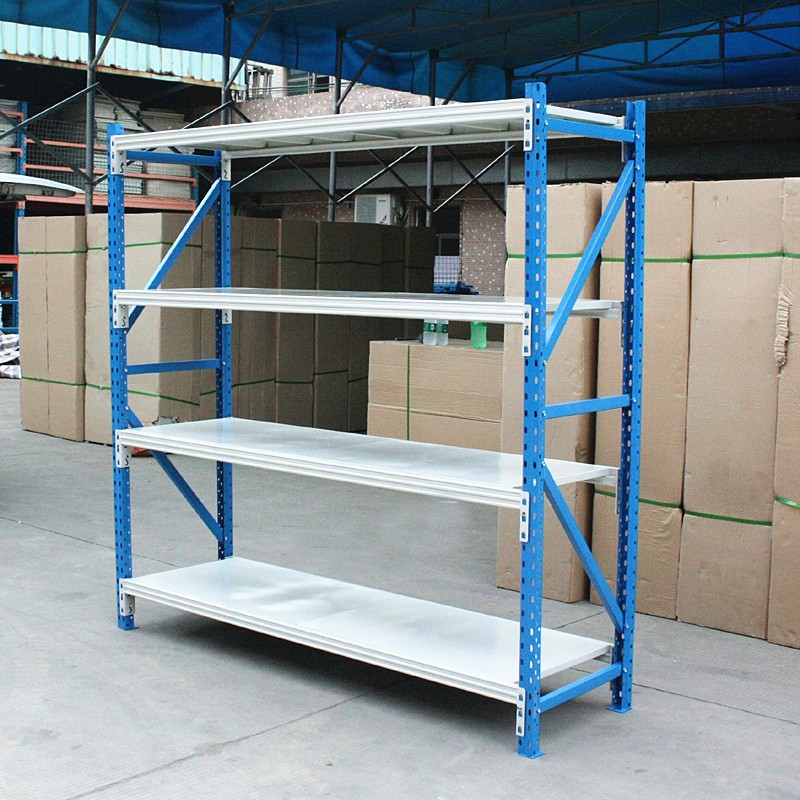

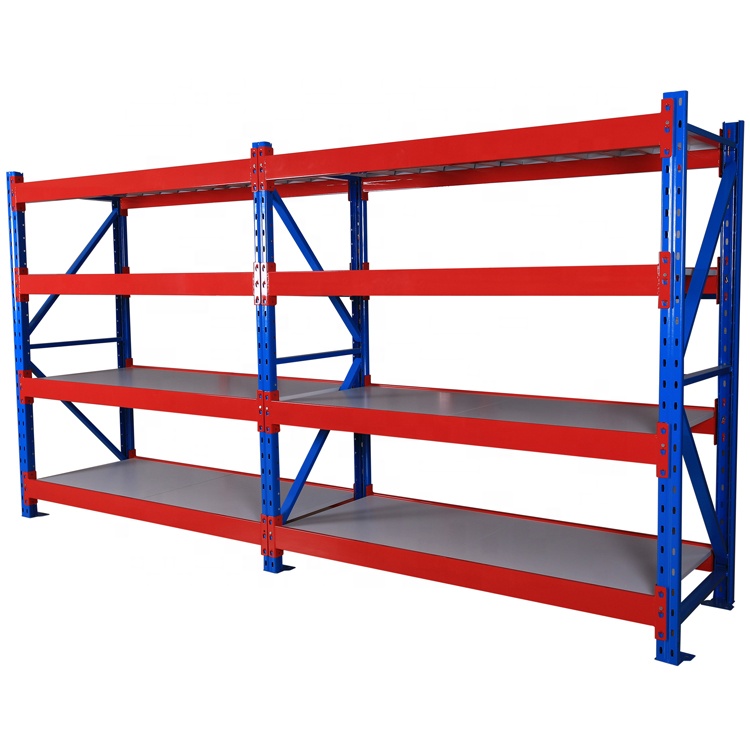

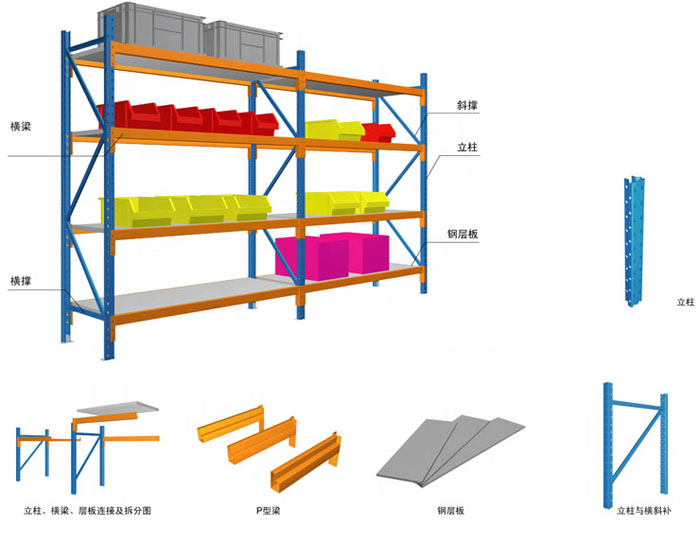

Medium duty rack belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is "P" type beam, whose height matches with that of the layer board.
| Standards Size (mm) | Layer | Loading Weight | Beam (mm) | Upright (mm) | Thickness of Board (mm) |
|---|---|---|---|---|---|
| L2000*D600*H2000 | 4 | 200~300kg/layer | 60*40*1.2 | 60*50*1.2 | 0.5 |
| L2000*D600*H2000 | 4 | 400~500kg/layer | 60*40*1.5 | 60*50*1.5 | 0.7 |
| Product Name | Medium Duty Rack/Shelf |
| Material | High-Quality Q235 Cold-Rolled Steel |
| Loading Capacity | 200~500kgs/level |
| Thickness | Upright: 60*40*1.0, 1.2, 1.5mm; Beam: 60*40/80*40*1.0, 1.2, 1.5mm; Steel: 0.5, 0.6, 0.7mm |
| Color | Upright: Blue, Beam: Orange, Steel: Gray white (Customizable) |
| Surface Treatment | Electrostatic Spray Surface |
| Packing Term | Air bubble, Carton, Wooden Case |
| Warranty | 10 Years |
| Certification | SGS |
| System Parameters | |
|---|---|

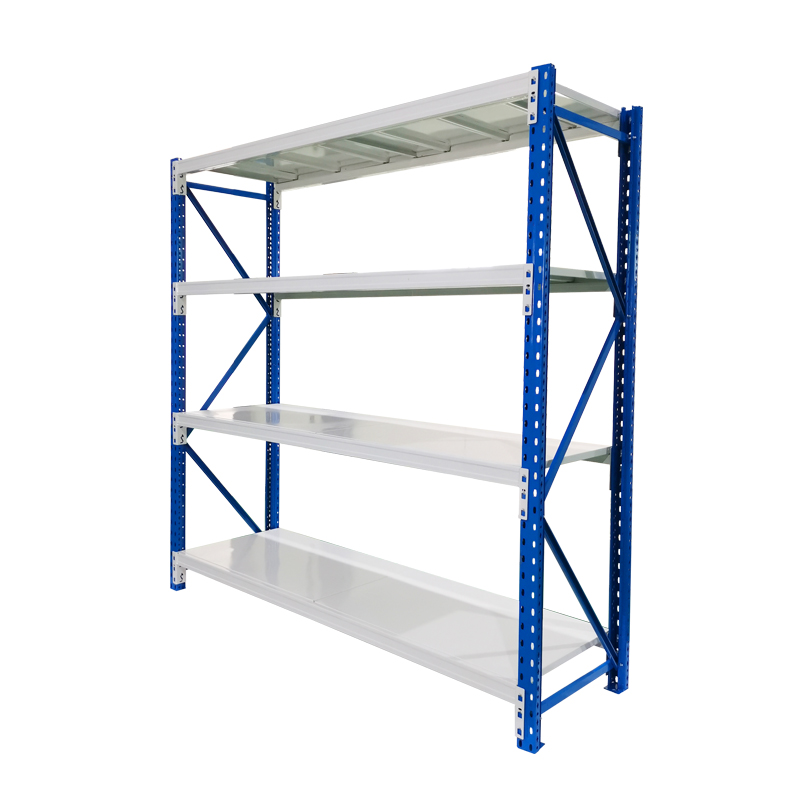

| Size | L2000*D600*H2000mm (4 levels, 300kg/layer capacity) |
| Material Specs | Upright: 60*50*1.0, Beam: 60*40*1.2, Steel: 0.5mm |
| Color Theme | Blue uprights, Gray-white beams and steel panels |
| Packaging | Standard Air bubble protective packaging |
| Surface Finish | Durable Powder Coating |
