Product Description

Basic Info

Model NO.
WD_VNAR_001
Usage
Tool Rack, Tools, Supermarket, Industrial, Warehouse Rack
Material
Steel
Structure
Rack
Type
Vna Rack
Mobility
Fixed
Height
5-15m
Weight
1000-6000kgs
Closed
Open
Development
Conventional
Serviceability
Common Use
Design Service
Free CAD Service Available
Back-up Service
Installation Drawing/on-Site Instruction
Container Load
15-18tons/1*20' Container, 20-25tons/1*40' Contain
Certification
ISO9001/CE
Lead Time
Within 15 Work Days
Transport Package
Air Bag; Air Bubble; Wooden Pallet, etc.
Specification
Customizable
Trademark
As requested
Origin
Nanjing
HS Code
73089000
Production Capacity
20000tons/Month

Product Description

ISO9001/CE Conventional Very Narrow Pallet Aisle Racking Vna Rack
ISO9001/CE Conventional Very Narrow Pallet Aisle Racking Vna Rack with Good Price

What Is Very Narrow Aisle Pallet Racking (VNA)?

Very narrow aisle pallet racking condenses standard pallet racking into a smaller area which is conspired to generate a high-density storage system from the vertical level.

Key Features

  • Direct access to all the unit loads
  • Save up to 40% of space by reducing the work aisles
  • Simple assembly, disassembly, and re-adaptation of load levels
  • Compatible with any type of goods, by weight or volume
  • Allows pallet storage at floor level on the lowest level of the racking.
  • Flexible enough to install stacker cranes.

Specification

Standard Size L2300*D1000*H4500; can be customized as your request
Height 1500-8000mm or Customized;
Width/Depth 400-1500mm or Customized;
Length 1500-3200mm or Customized;
Color In default, the Upright frame is blue, and the Beam is orange, which can be customized.
Raw Material High-quality Q235 cold-rolled steel
Upright-Section 80*60*1.5/1.8/2.0mm, 90*65*1.5/1.8/2.0mm, 100*70*2.0/2.5mm, 120*95*2.0/2.5mm, etc.
Beam-Section 80*45mm, 100*45mm, 120*45mm, 140*45mm, 160*45mm, 180*45mm etc.
Layers Customizable
Pitch Holes 75mm
Loading Capacity 1000~6000kgs or 2200~13200lbs
Surface Treatment Powder coated
Packaging Air bubble, Wooden Case, etc.

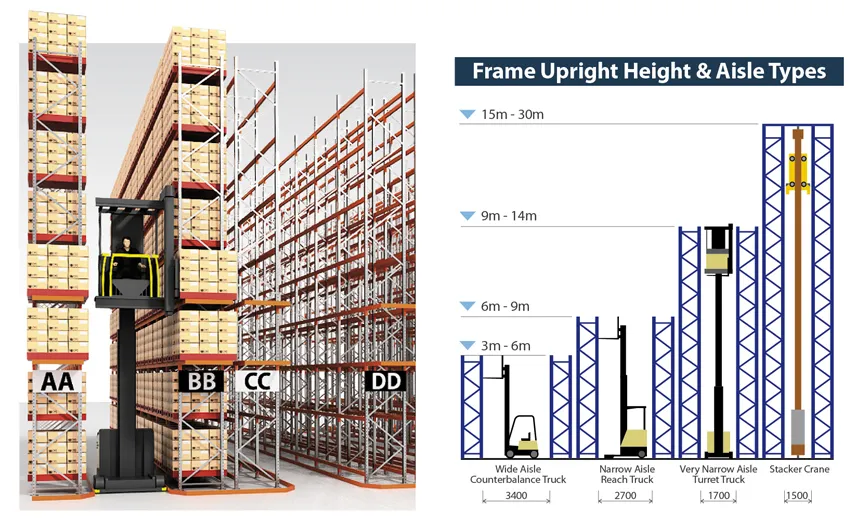

VNA Rack Overview Diagram

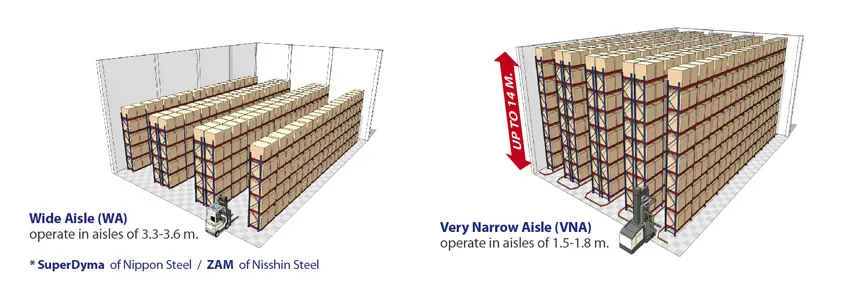

VNA Rack Structural details

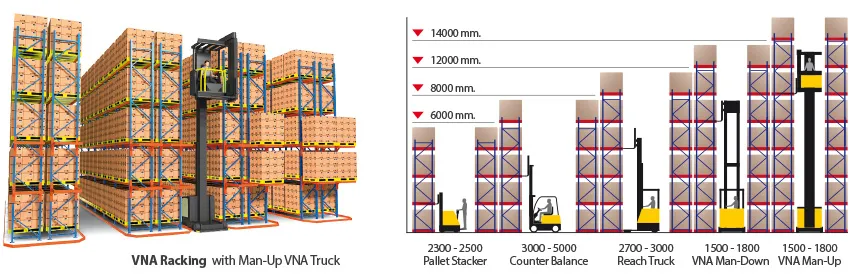

VNA Rack Installation Scheme

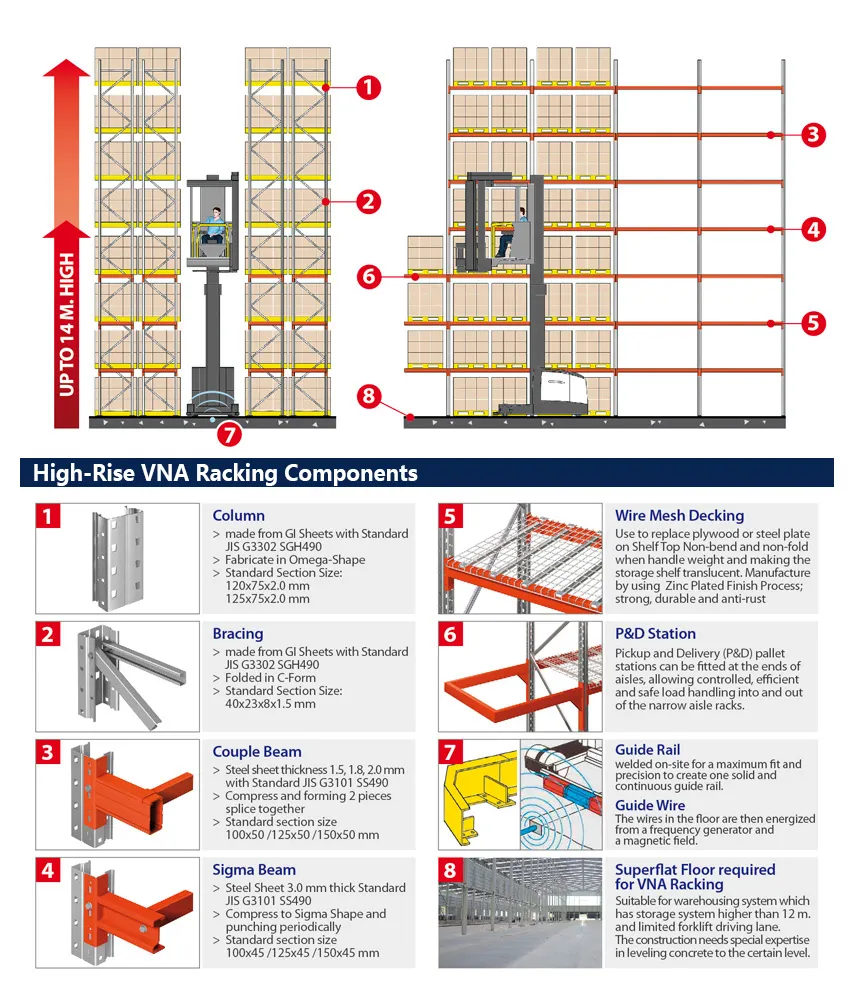

VNA Pallet Aisle Racking Specifications Details
Detailed components list of VNA Racking

Frequently Asked Questions

Are you a manufacturer or a trading company?
We are a manufacturer in warehouse storage rack.
How about the sample?
We could provide the paid sample for customer if you need.
Do you accept the private label?
Yes, we support the ODM/OEM service.
How about the shipping time of large quantities production?
As for large quantities production you ordered, we will arrange it in 30-50 days.
How long will I get my quotation?
Usually within 12 hours, we will reply you as soon as possible.
Which kind of payment terms do you need?
We accept T/T, L/C, and so on.
