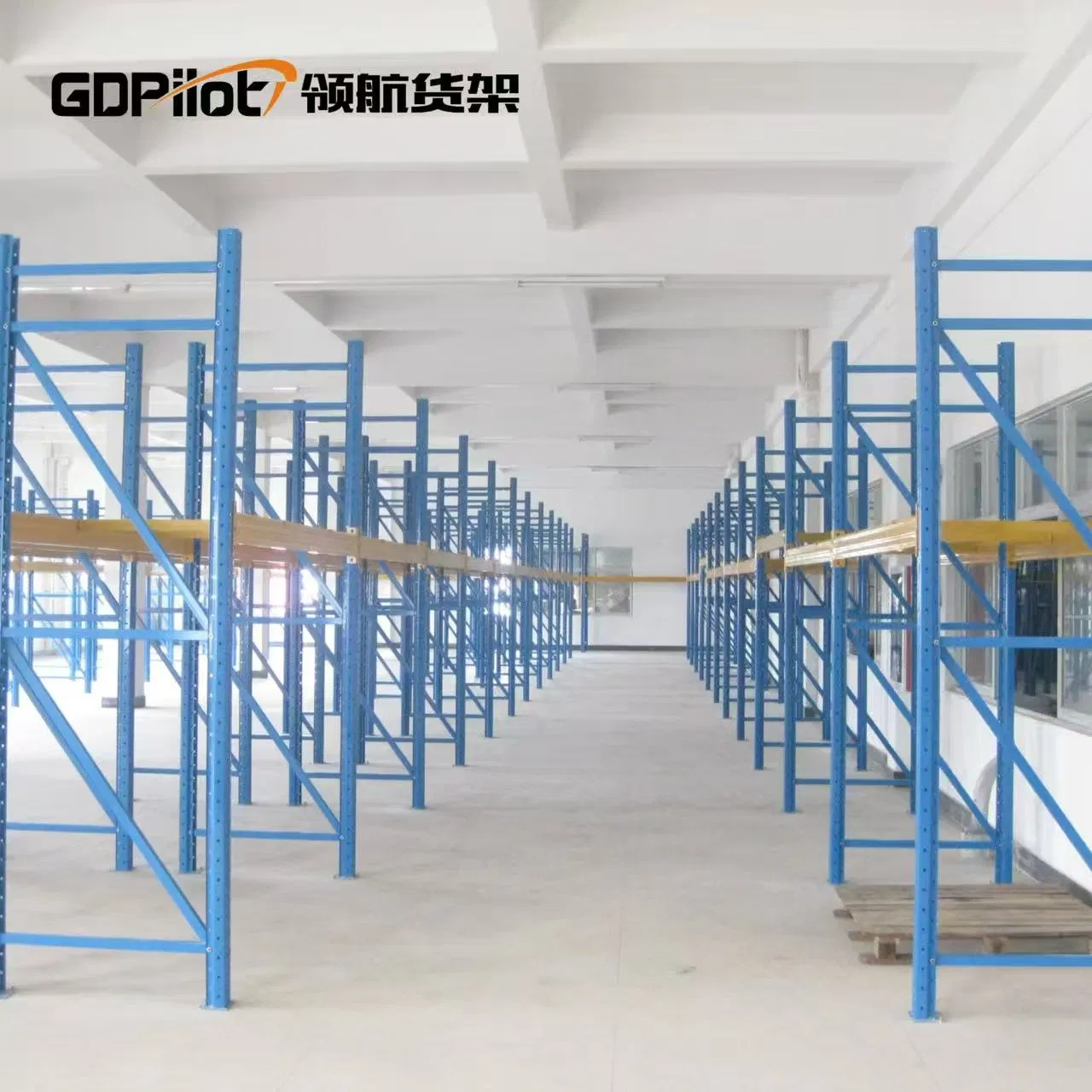

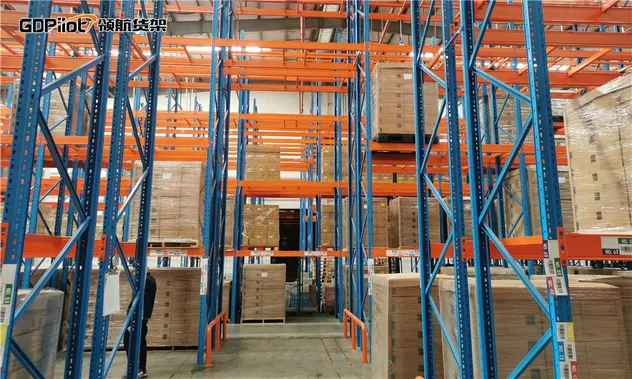

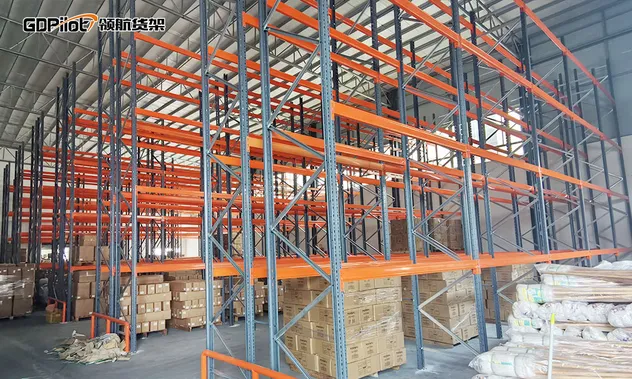

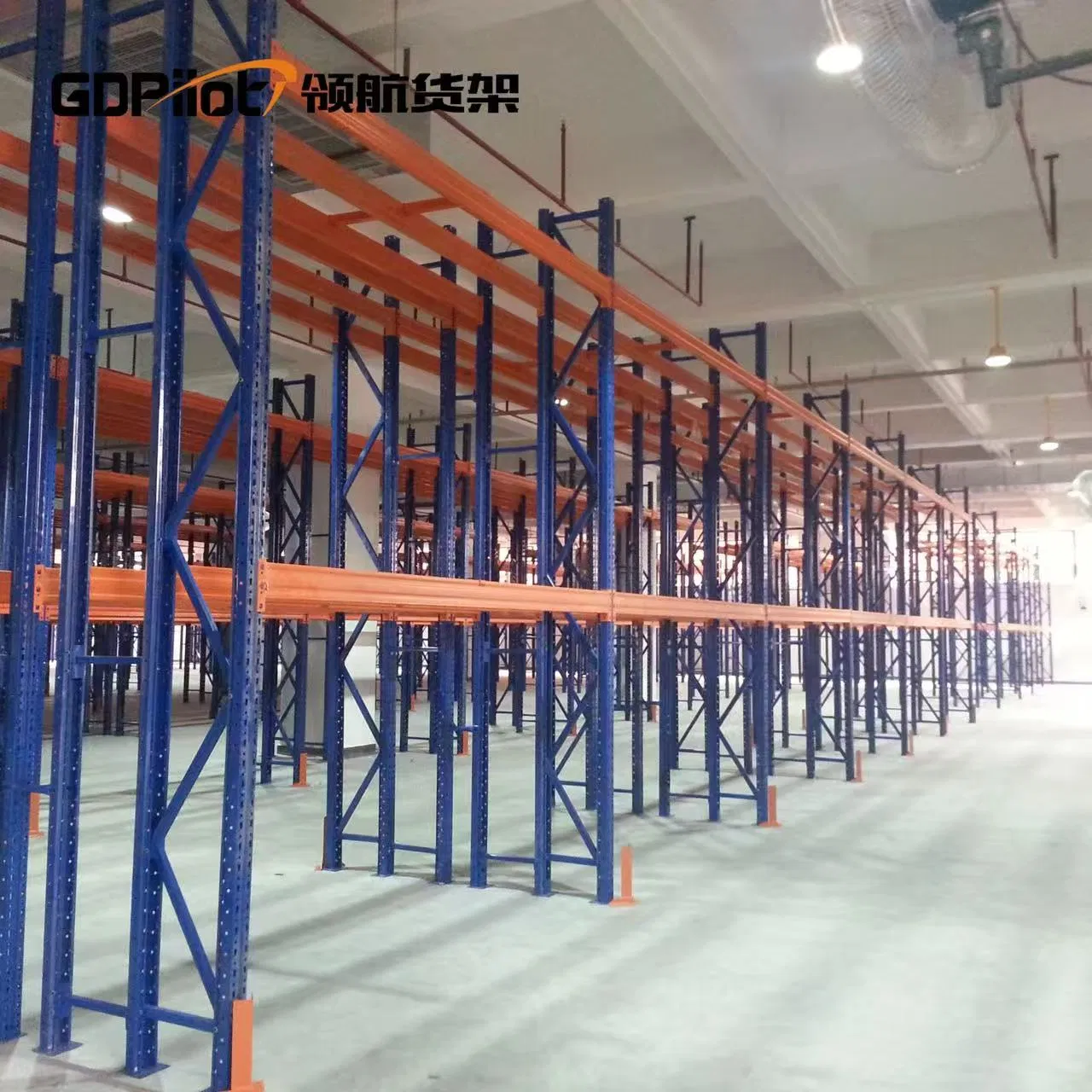

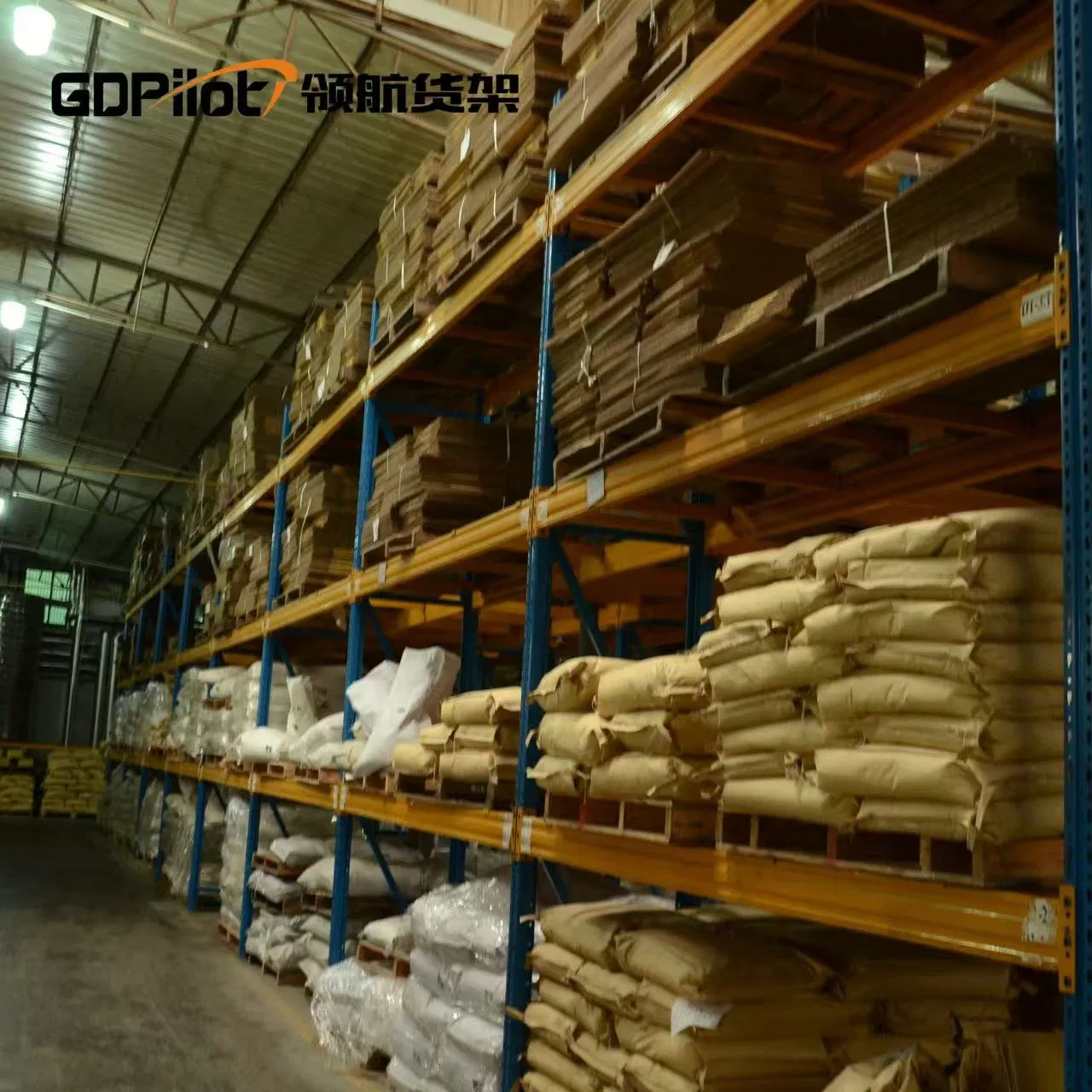

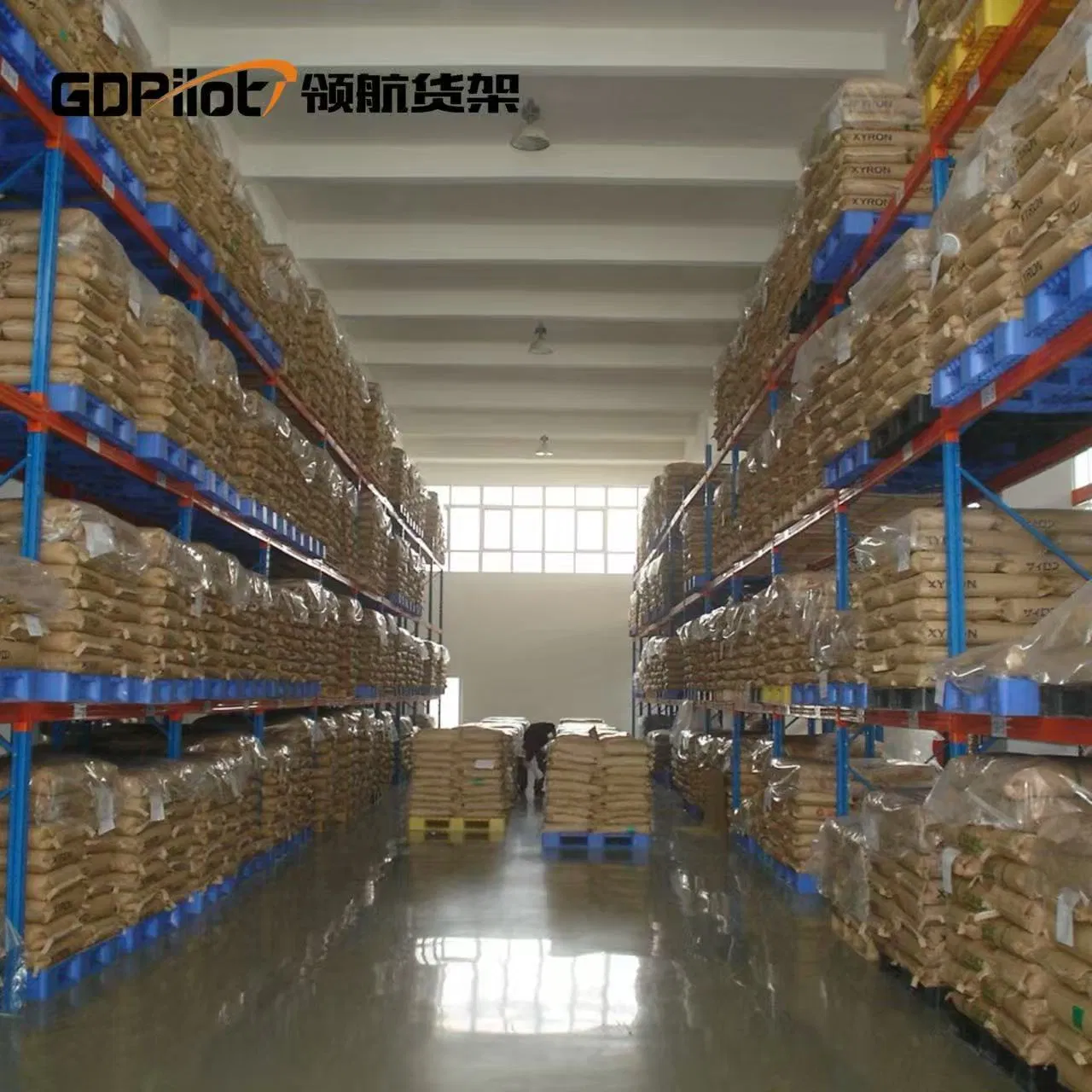

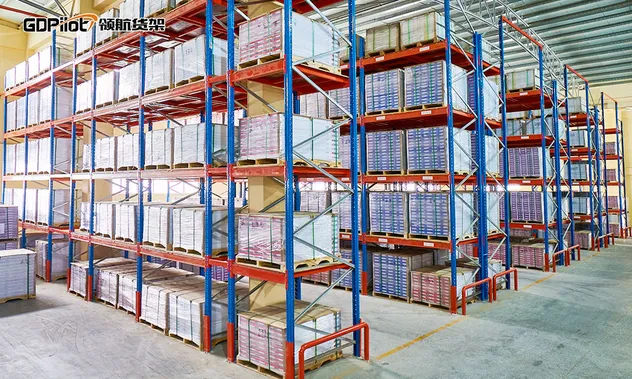

Pallet Rack, a kind of heavy duty rack, also called beam rack, suitable for storage all kinds of goods, can operate with forklift and stacker, widely used in manufacturing, logistics and distribution center and other fields, including electronics, home appliances, communications, computers, instruments, clothing, cars, tires, supermarket stores, etc.

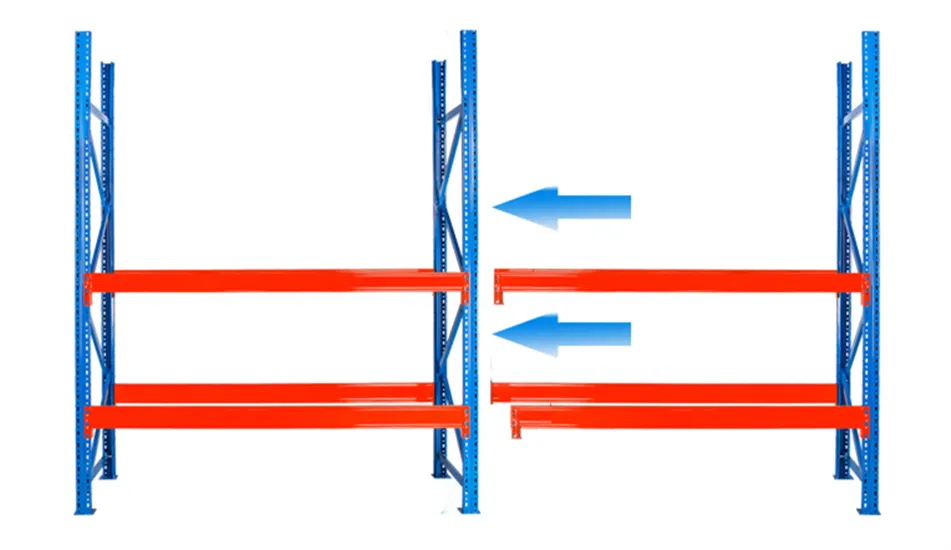

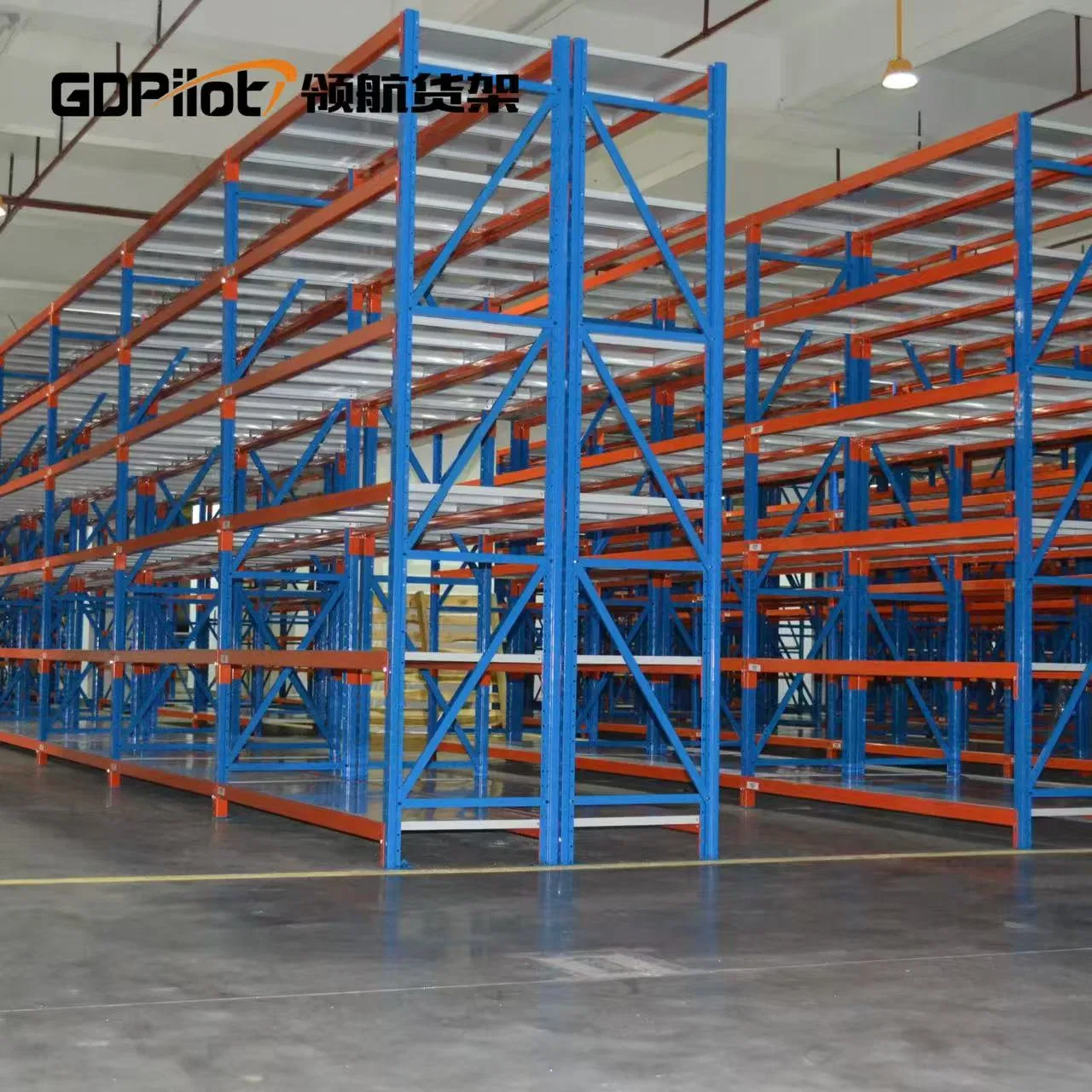

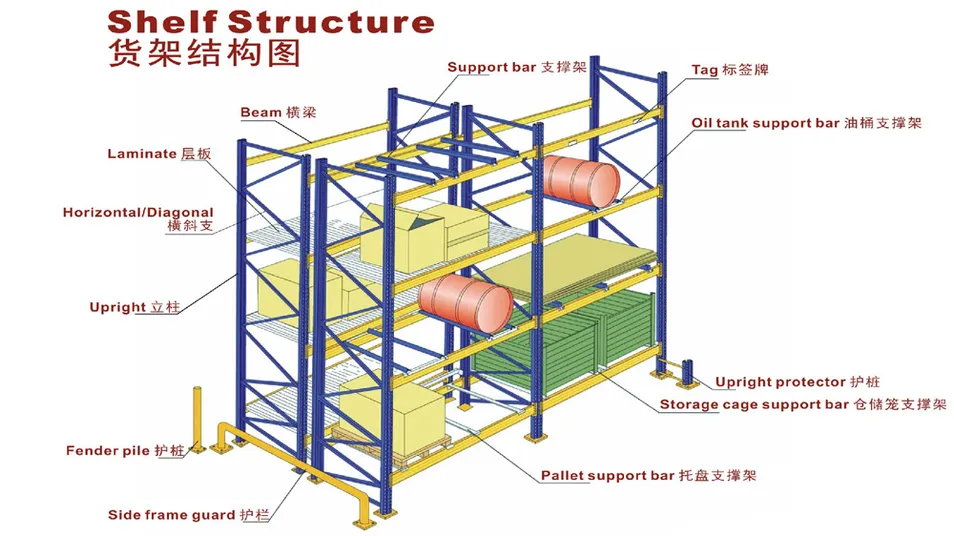

The starting rack has 2 sets of upright, and shares 1 set of columns with the additional rack, which can be combined infinitely according to the size of the storage space.

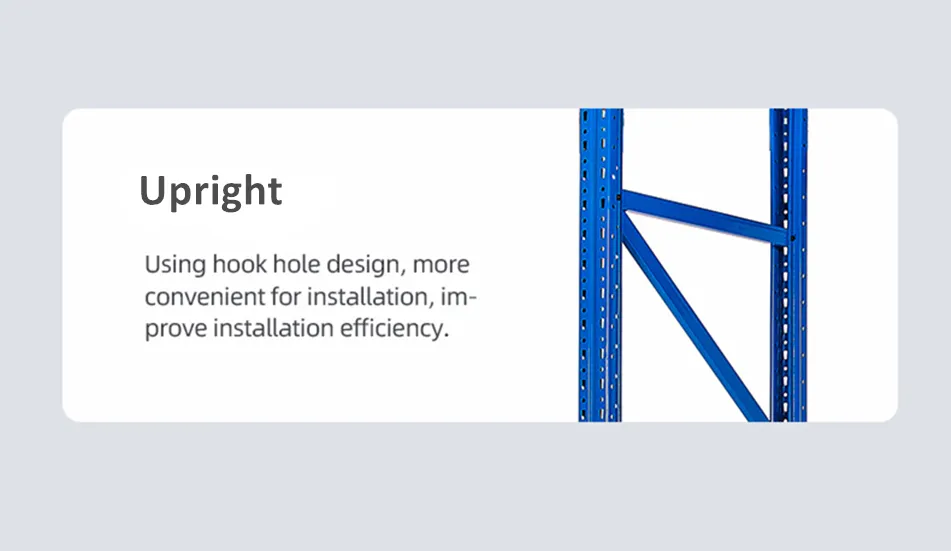

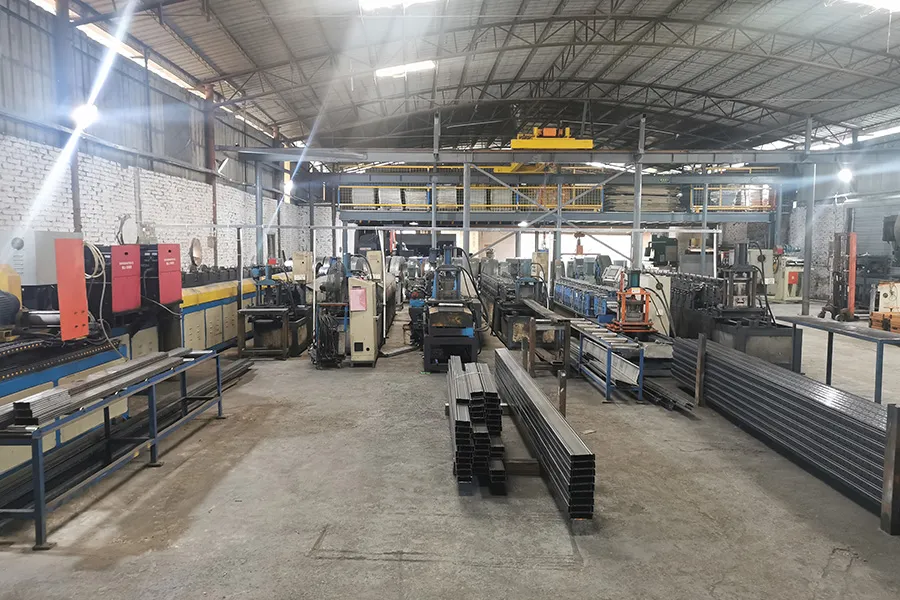

High quality steel strip, automatic rolling mill in 12 bend angle, punching, and cut the height according to customers' requirements. This structure features strong bearing capacity and a high safety factor.

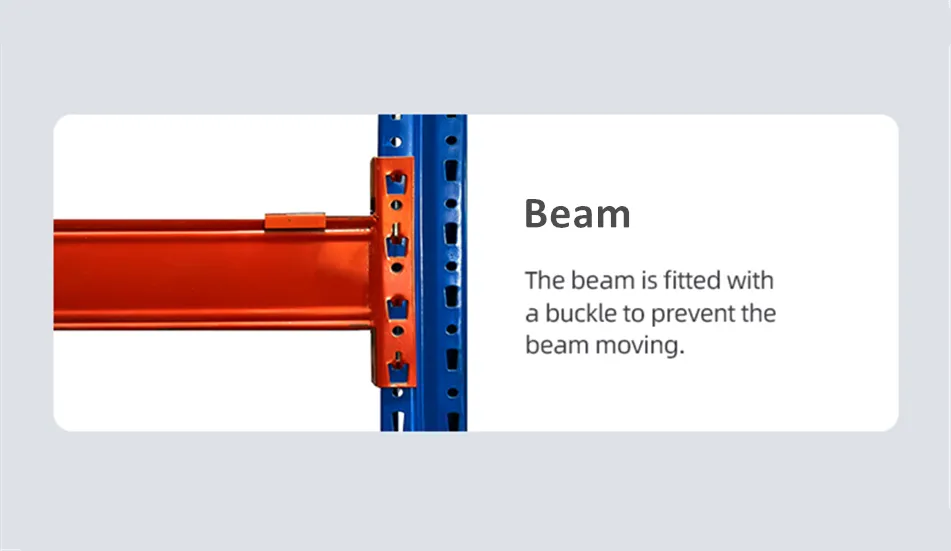

Using a roll formed section beam, which essentially is 2 sections of coil steel rolled into 'double C-sections'. Also called a box beam, it disperses the weight evenly through the beam to improve load capacity and ensure safety.

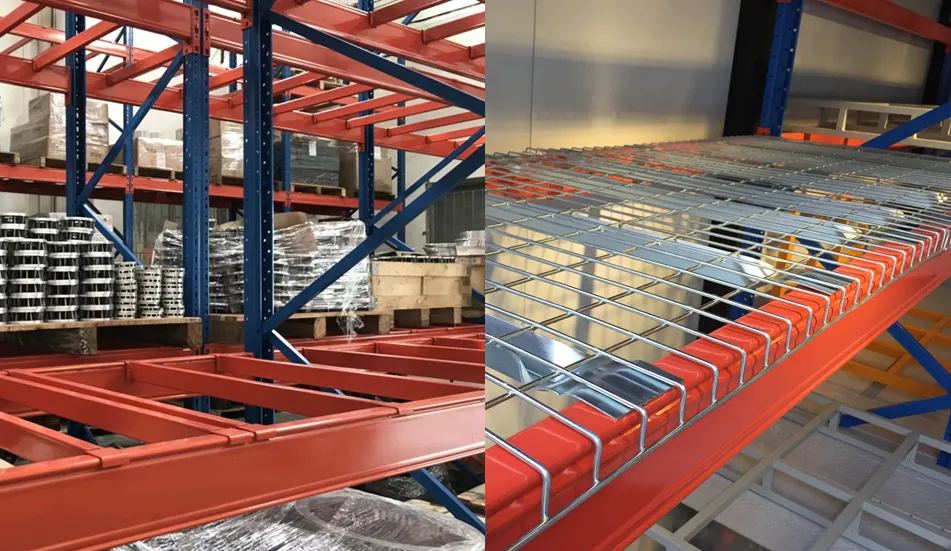

There are accessories like pallet support bars and wire mesh, which match the box beam perfectly to improve safety of operations and storage.

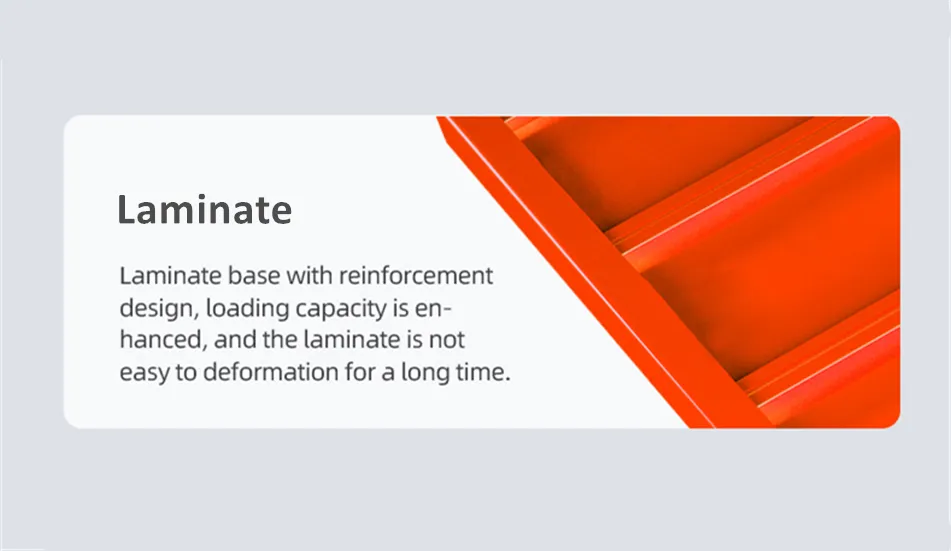

Steel laminate base with reinforcement design which enhances the load capacity, preventing deformation under heavy loads.
| Parameter | Standard Value / Dimensions |
|---|---|
| Length | 1000-3600mm |
| Width | 800-1200mm |

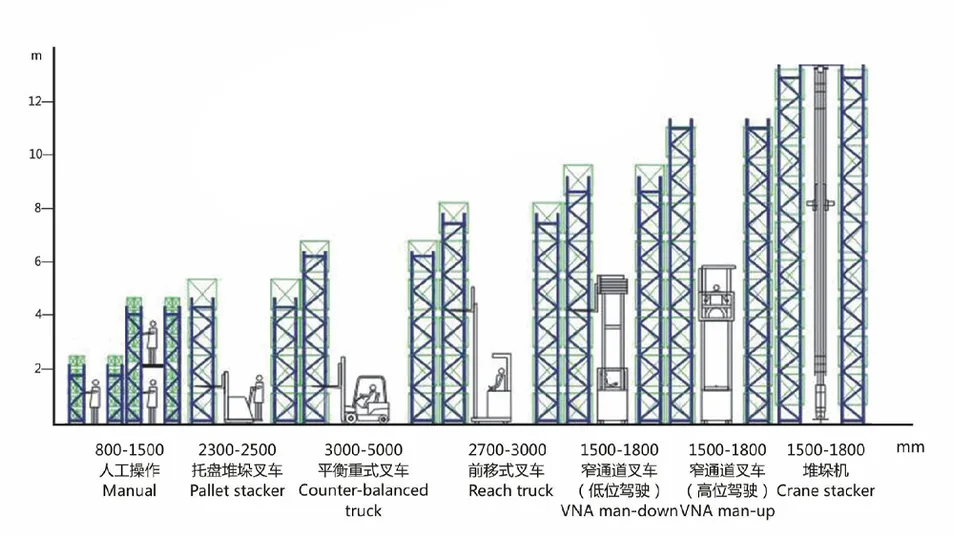

| Height | 2000-11000mm |
| Load Capacity | 500-6000kg per layer |
| Customization | Special size or loading capacity are available for customized requests. |
| Upright specification | 70*50*1.5, 70*50*2.0, 95*70*1.5, 95*70*2.0, 120*70*1.5, 120*70*2.0 |
| Box beam specification | 85*45*1.5, 100*45*1.5, 100*45*2.0, 120*45*1.5, 120*45*2.0, 140*45*1.5, 140*45*2.0, 170*48*1.5, 170*48*2.0, 200*48*1.5, 200*48*2.0 |
| Accessory Compatibility | Plywood laminate, steel laminate, wire mesh decking |
| Surface treatment | Powder coated |
Our main business is to develop and manufacture storage racking, providing one-stop storage solutions to customers.
Our core product line includes: pallet racks, mezzanine racks, mezzanine platforms, mezzanine floors, light/medium duty racks, drive-in racking, cantilever racks, very narrow aisle racks, longspan shelves, shuttle racks, and stacking racks. These solutions are widely applied across various industries such as logistics, e-commerce, garment industry, food industry, cold storage facilities, and automotive tire centers.
Supported by a professional technician team and skilled workforce, we design and build over 100,000 square meters of storage systems for clients globally each year.
