Protection Narrow Aisle Shelf Warehouse Storage Iron Heavy Duty Pallet Rack

Basic Info

Model NO.	VNA-003
Usage	Tool Rack, Beverage, Clothing, Tools, Supermarket, Food, Industrial, Warehouse Rack
Material	Steel
Structure	Push Back Racking
Type	Pallet Racking
Mobility	Adjustable
Height	4.6/5.2/6.9metre
Weight Capacity	1.2/1.5/2.0tons
Closed	Open
Development	New Type
Serviceability	Common Use
Color	Blue and Orange, Customized
Customize	Based on The Measurement of Your Warehouse
CE Certification	CE Certificate Available
ISO Certification	ISO Certificate Available
Installation	Installation Guide, Free Installation Drawing
Drawing	Free, Whole, Detailed From Our Technician
Visiting	Warmly Welcome
Feature	Corrosion Protection
Use	Industrial
Frame Structure	90702.0
Beam Structure	100502.0
Surface Finish	Powder Coating & Galvanized
Free Sample	Available (Delivery Cost on Buyer)
Transport Package	Rubble, Carton
Specification	L2400D1100H5600m/aisle
Origin	Jiangsu, China
HS Code	73012000
Production Capacity	100000tons/Year

Product Description

Protection Narrow Aisle Shelf Warehouse Storage Iron Heavy Duty Pallet Rack

🛠️ Description & Advantages of Very Narrow Aisle Rack

The aisles of this rack are very narrow, reducing the aisle space to build more racks and maximize the use of warehouse space.
The narrow aisle racks have become smaller because of the smaller aisles, and the increased density of racks increases the storage capacity by 30%-80% than the normal pallet racking.
The amount of stored goods is large, the goods are in and out more frequently, and there are higher picking requirements for the goods.
It is about 1600mm-2000mm, which greatly improves the space utilization rate of the warehouse.
The operation mode is flexible, and the storage and retrieval mode of the shelf can be first-in-first-out or first-in-last-out to meet different usage requirements.

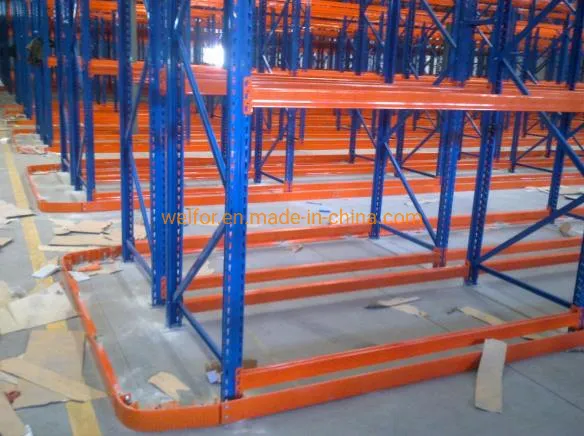

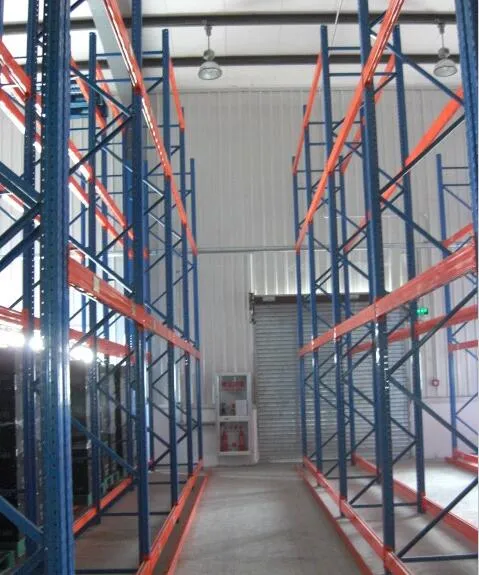

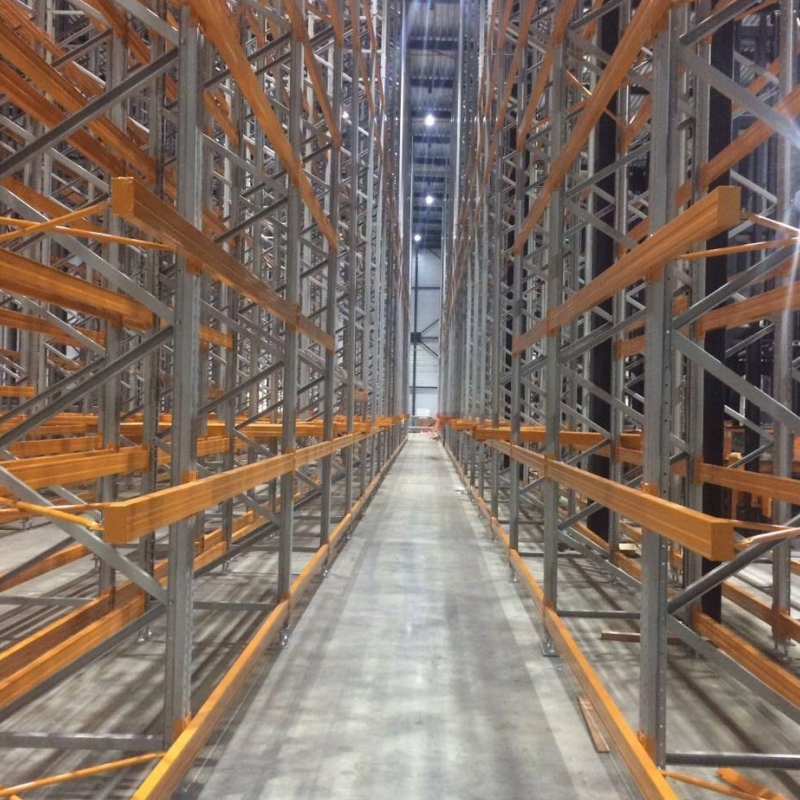

📦 Product Details Show: Guide rails, frame, beams

Very Narrow Aisle Rack Features

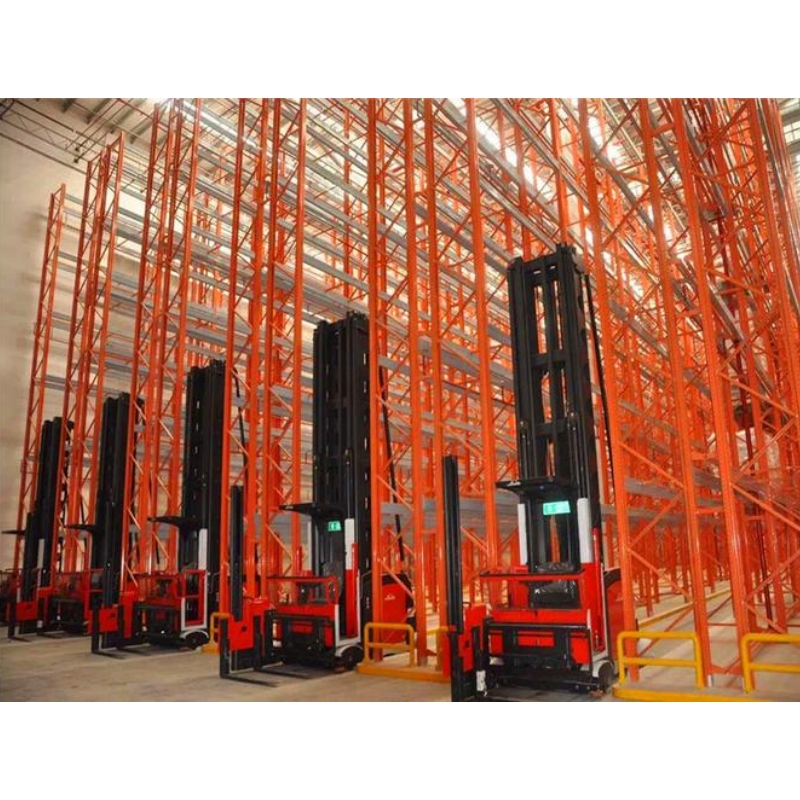

Very narrow aisle pallet rack is mainly used with three-way forklifts, occupying small aisle, saving warehouse space, storing and picking up products quickly, and cutting down operating costs.

This layout is particularly suitable for logistic centers less than 15 meters high. Compared with conventional pallet racks, its aisle is much narrower (ordinarily 1600-2000 mm), increasing space utilization rate by approximately 20%.

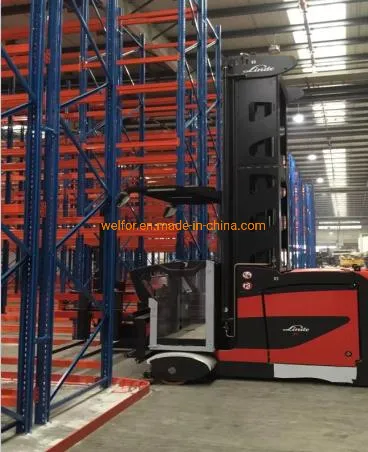

Guide rails are installed on both sides of the aisle for the three-way forklift to run smoothly.

Product Specifications

Item	VNA pallet racking
Place of Origin	Hebei, China
Type	Vna Pallet Rack
Material	Steel
Feature	Corrosion Protection
Use	Warehouse Rack
Depth	Customized
Weight Capacity	500-2000kg per level
Width	Customized
Height	Customized
Usage	Supermarkets, Warehouse
Product name	Narrow Aisle Racking
Color	Customized
Surface treatment	Epoxy Electrostatic Powder Coating
Application	Goods Storage
Structure	Easy Assemble
Layer	2~10 Layers
Packing	Carton Packing

3D Layout & Loading

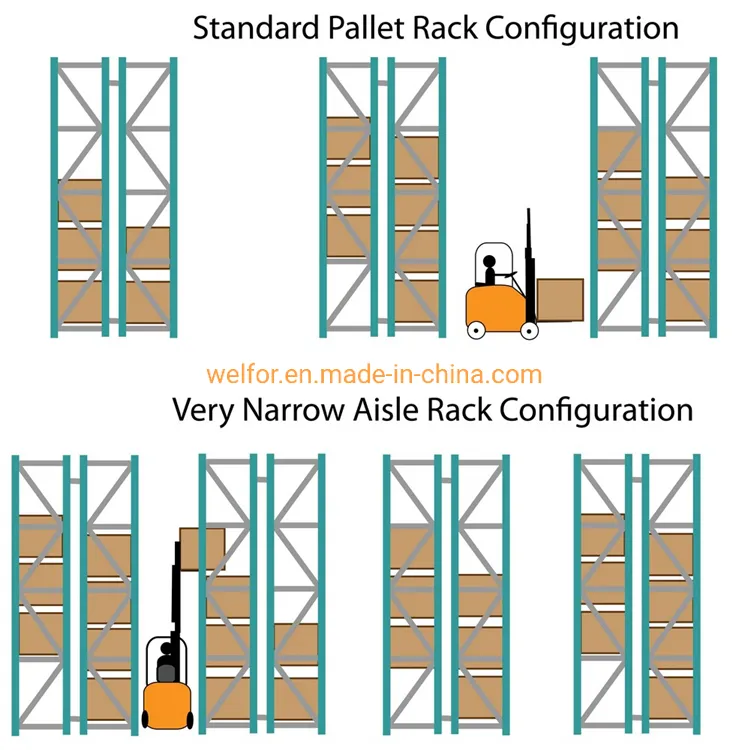

3D Design layout

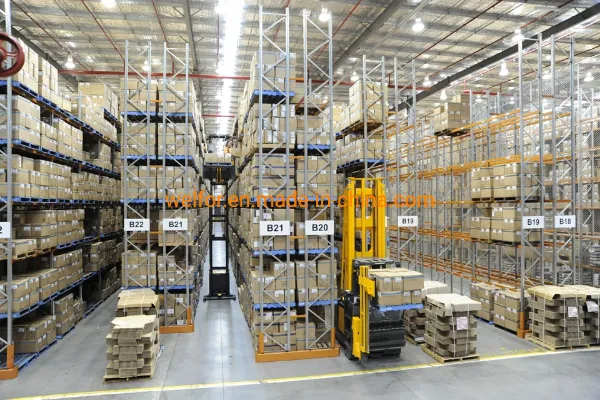

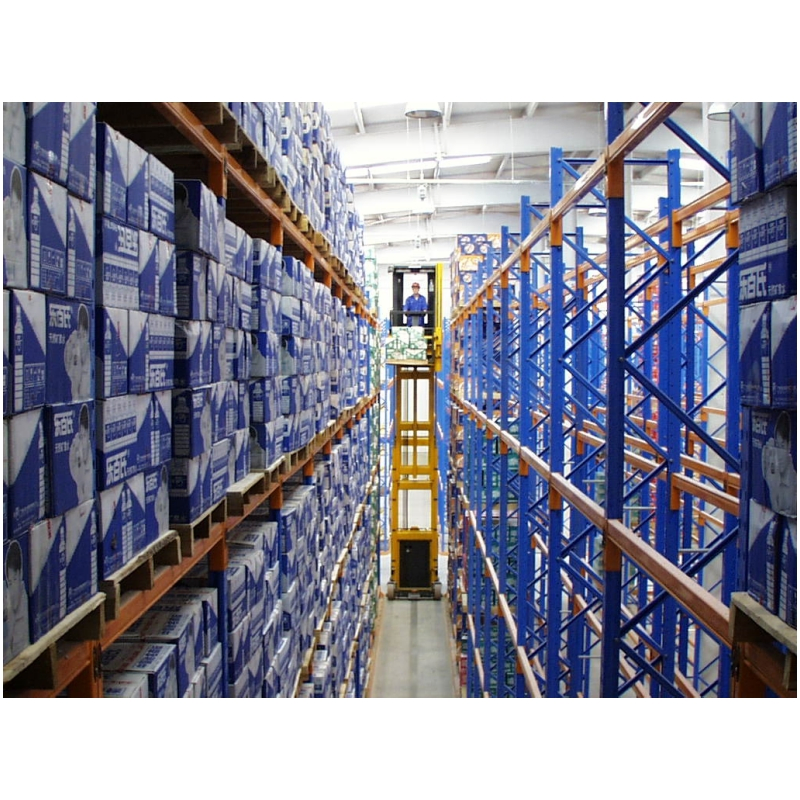

Loading Pictures
