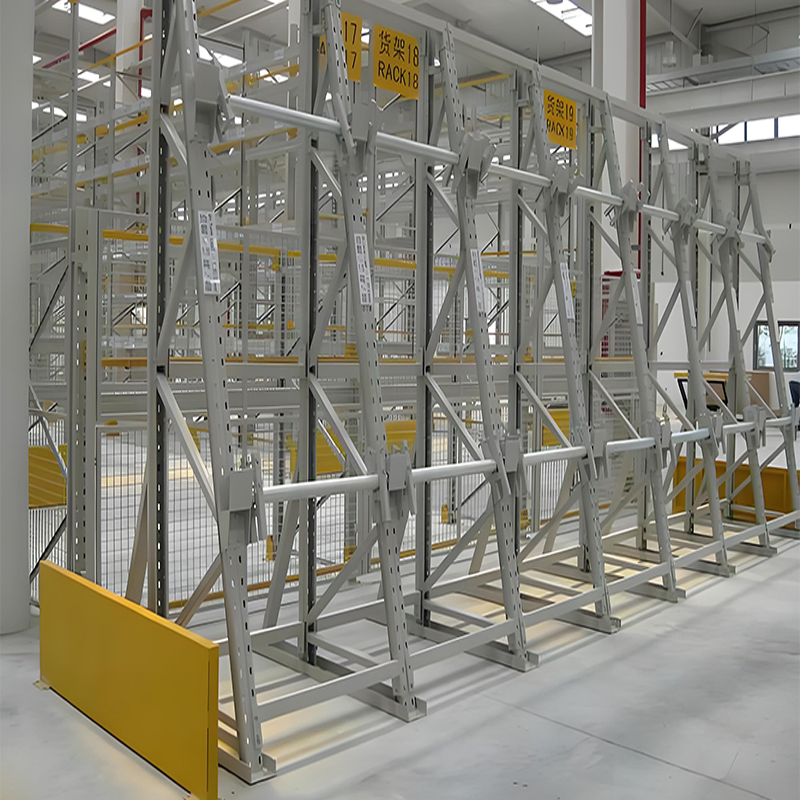

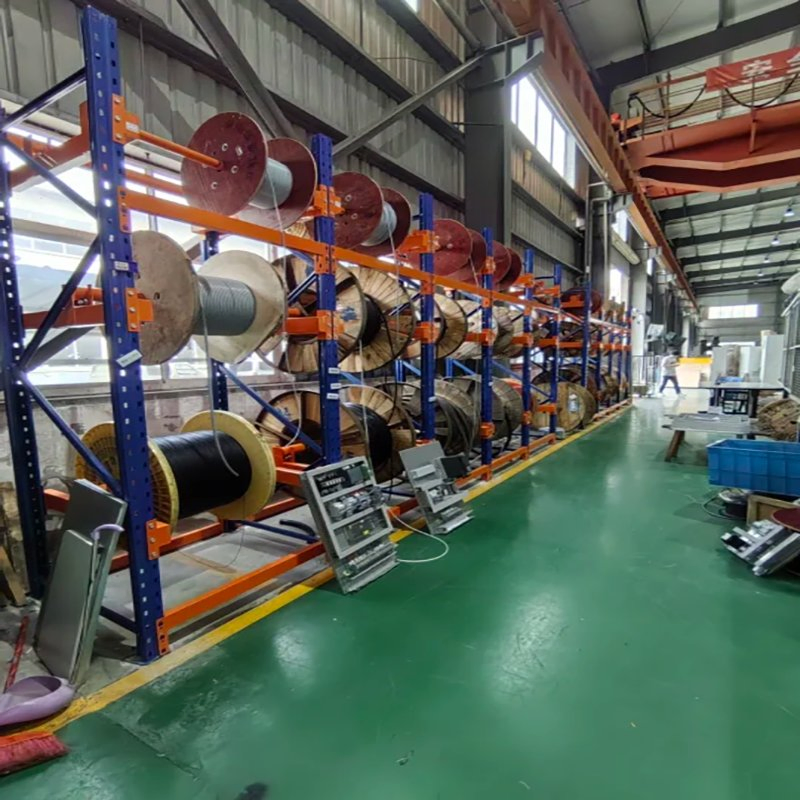

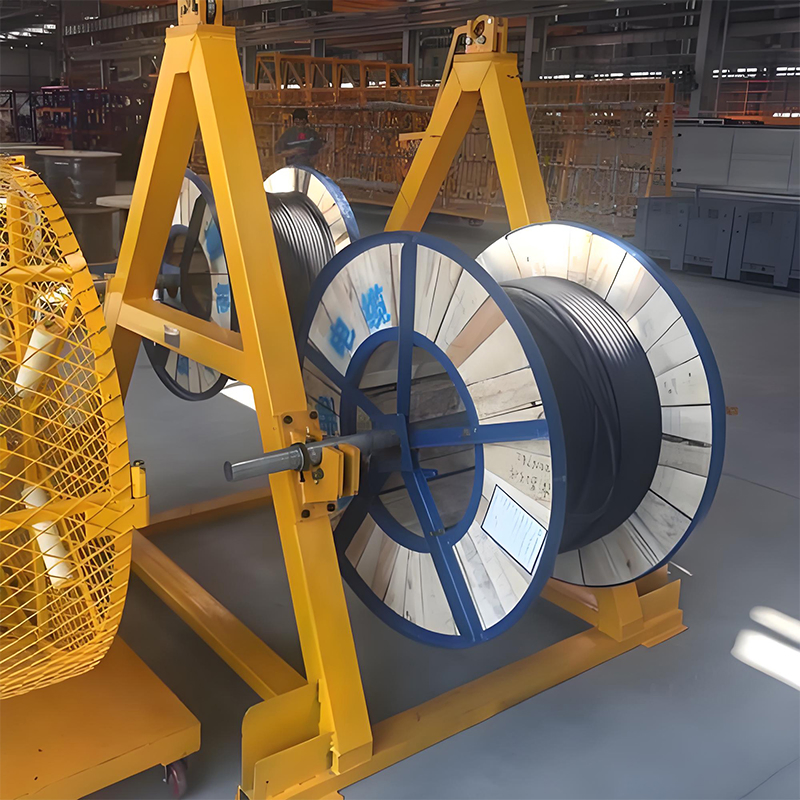

Heavy Duty Braked 3000kg/Bay Cable Reel Payoff Rack for Cable-Laying Truck

1 / 5

Heavy Duty Braked 3000kg/Bay Cable Reel Payoff Rack for Cable-Laying Truck

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview

Model NO.HJ-XL01

MaterialSteel

StructureRack

TypePallet Racking

MobilityAdjustable

Height0-11m

Weight Capacity150kg-3000kg

Closed/OpenOpen

Surface TreatmentElectrostatic Powder Spraying

DesignModular and Customized

Operation ToolForklift

Hole PatternGourd Hole / Round Hole / Teardrop

Production Capacity6,000 Tons/Month

UsageTool Rack, Beverage, Clothing, Supermarket, Food, Industrial, Warehouse Rack

Packaging & Delivery

Package Size1800.00cm * 800.00cm * 1200.00cm

Package Gross Weight500.000kg

Transport PackageWooden Case Packing

SpecificationCustom Size Accepted

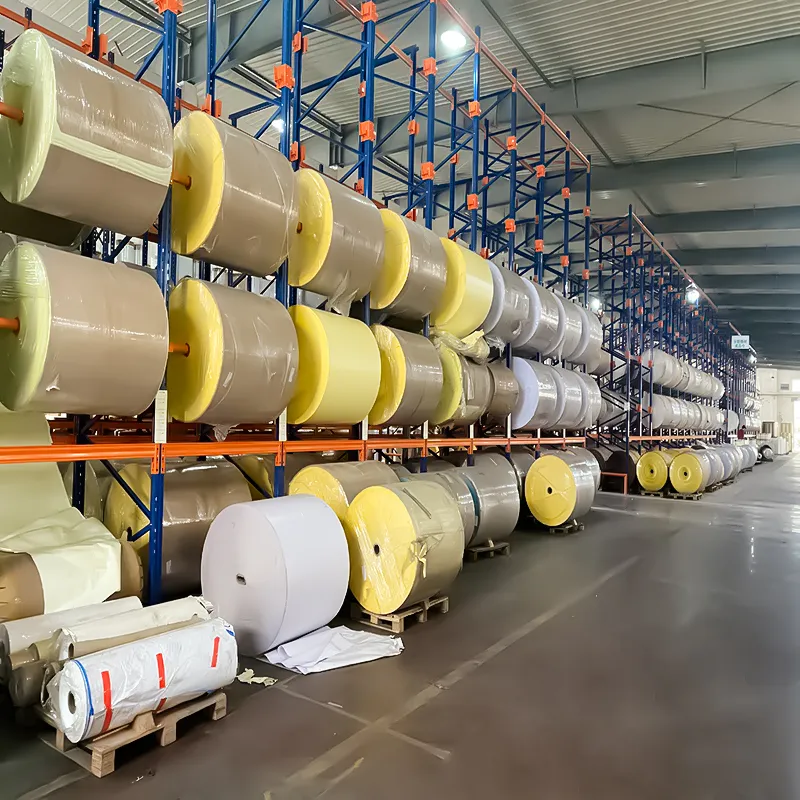

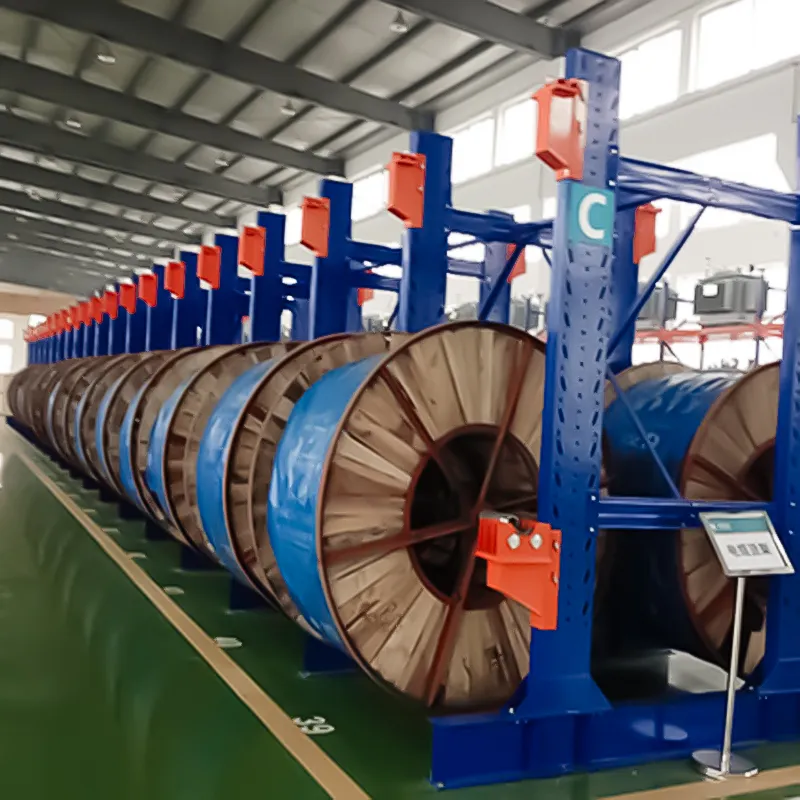

Projects

Product Description

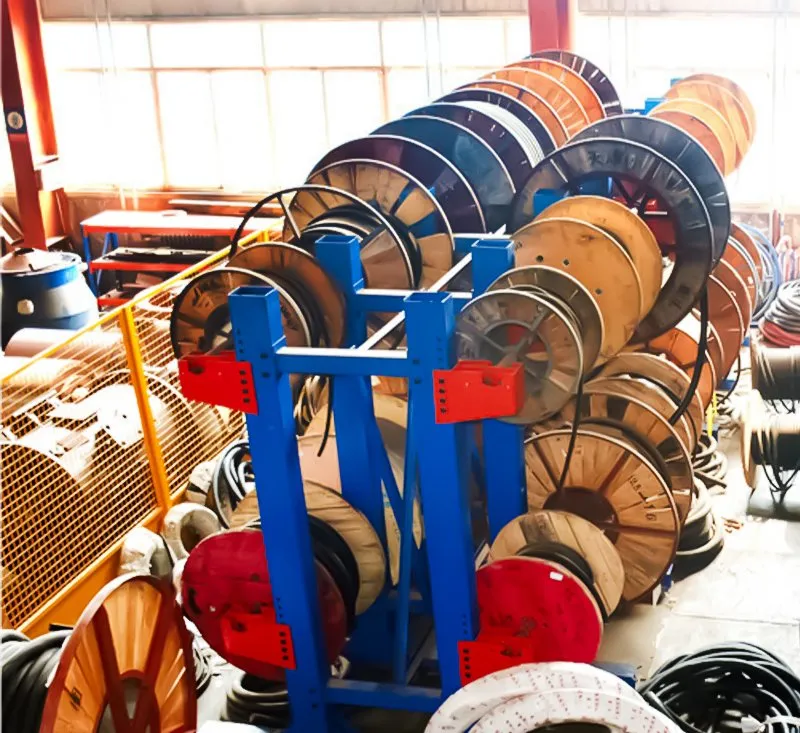

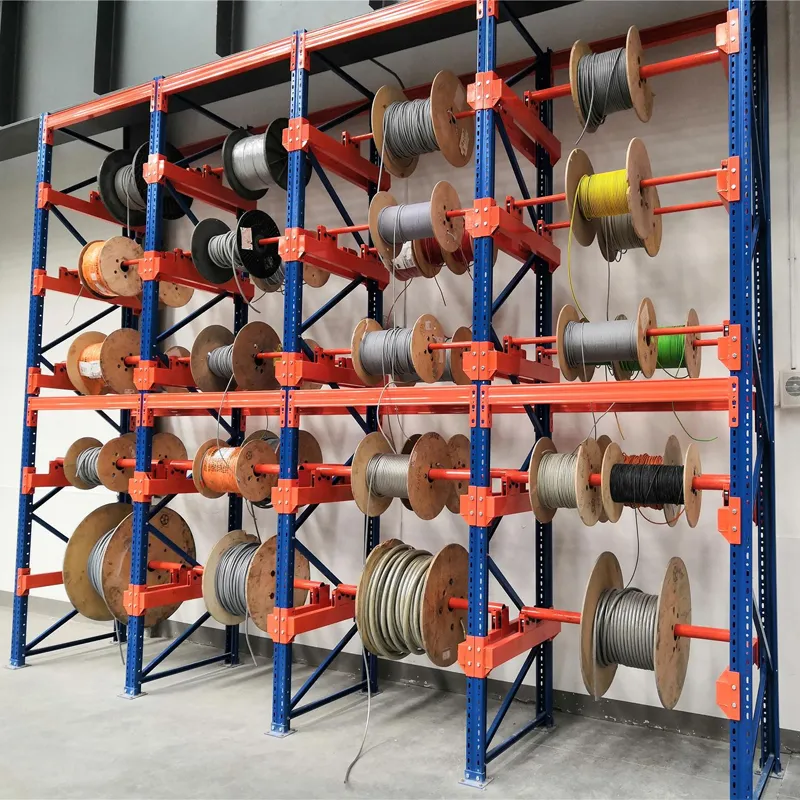

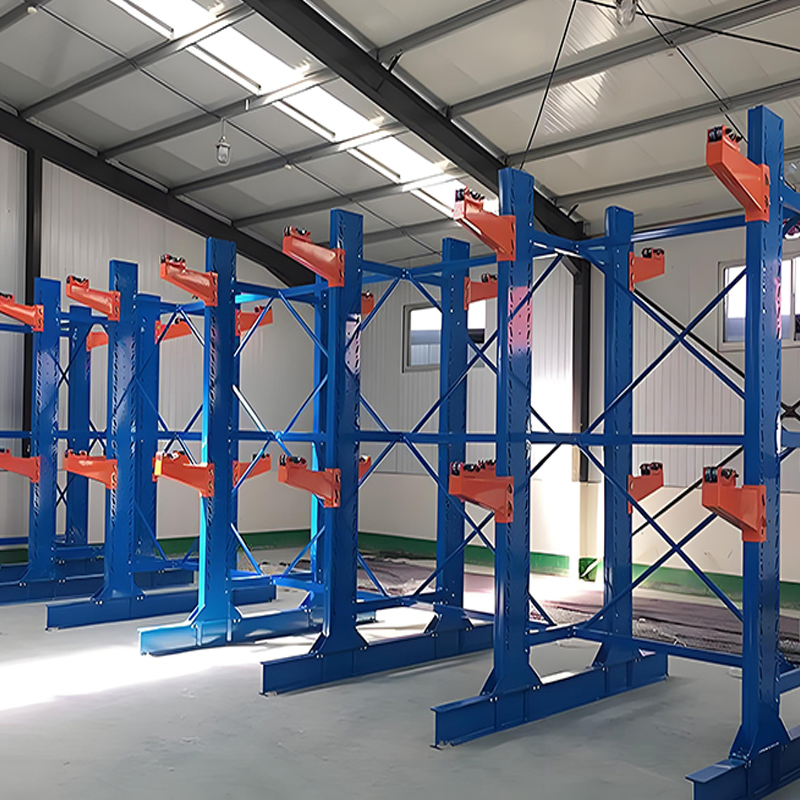

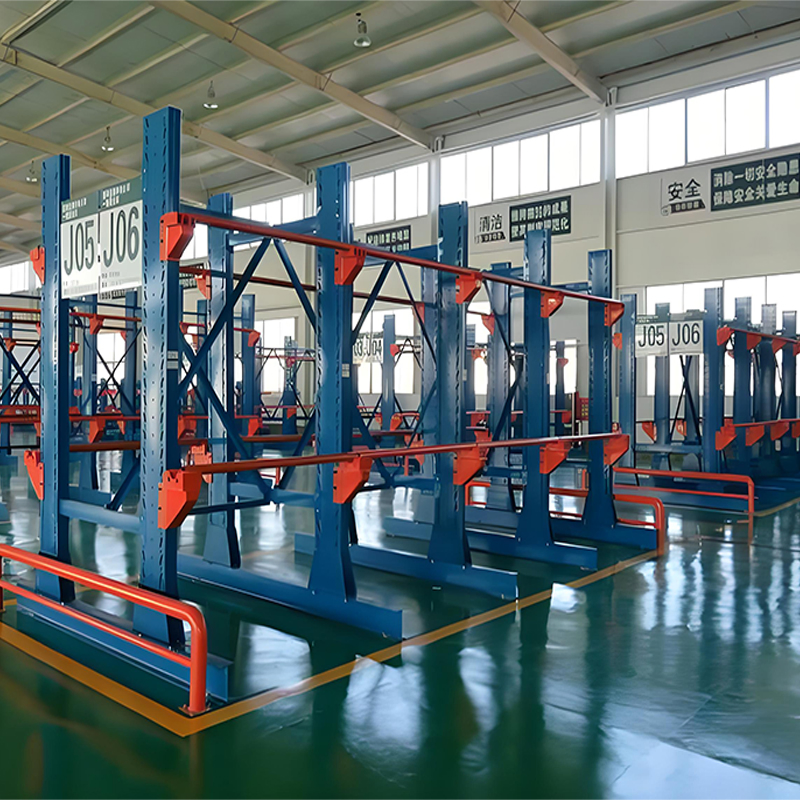

Cable Drum Rack

Cable Drum Rack — cantilever system for cable reels and wire spools. Single or double sided, 1000-3000kg per arm. Q235 steel bolted frame with safety stop plates. Adjustable arm spacing for different drum sizes. Powder coated or galvanized finish. Ideal for power plants, telecom, and electrical warehouses. Free CAD design.

Different accessories can be matched according to the use scenario of the shelf: steel pallets, stacking racks, workshop guardrails, plastic boxes, workbenches, tool cabinets, etc.

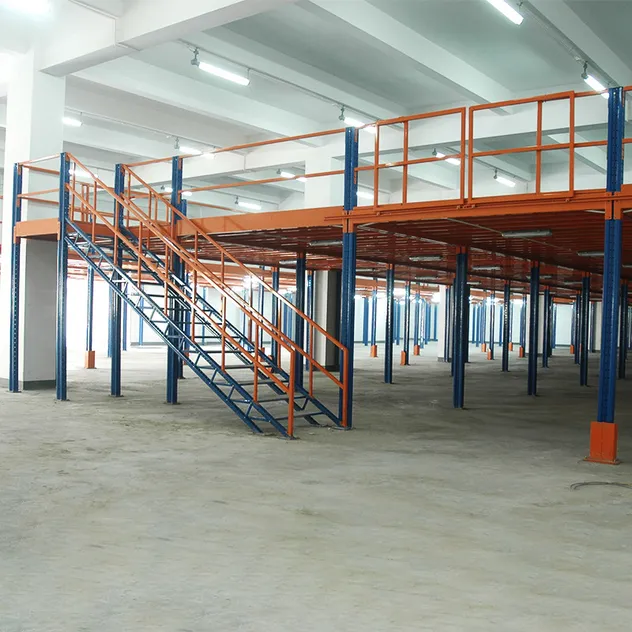

The factory can produce various racks and shelving, including Selective Pallet Racking, Drive-In Rack, Cantilever Rack, VNA Rack, Gravity Flow Rack, Mold Storage Rack, Mezzanine Floor, Steel Platform, AGV Compatible Rack, CTU Rack, Cable Drum Rack, Sheet Metal Drawer Rack, Warehouse Shelving, and more.
Material	Steel Q235 (Q345 for Cold Room Application)
Loading Capacity	Customized and up to 4,000 Kg UDL/level
Racking Height	Customized and up to 7000mm
Racking Depth	700-1,200 mm
Beam Length	Customized and up to 3,600 mm
Racking Finish	Frames (Powder Coated or Pre-galvanized) + Bracings (Powder Coated or Pre-galvanized) + Beams (Powder coated)

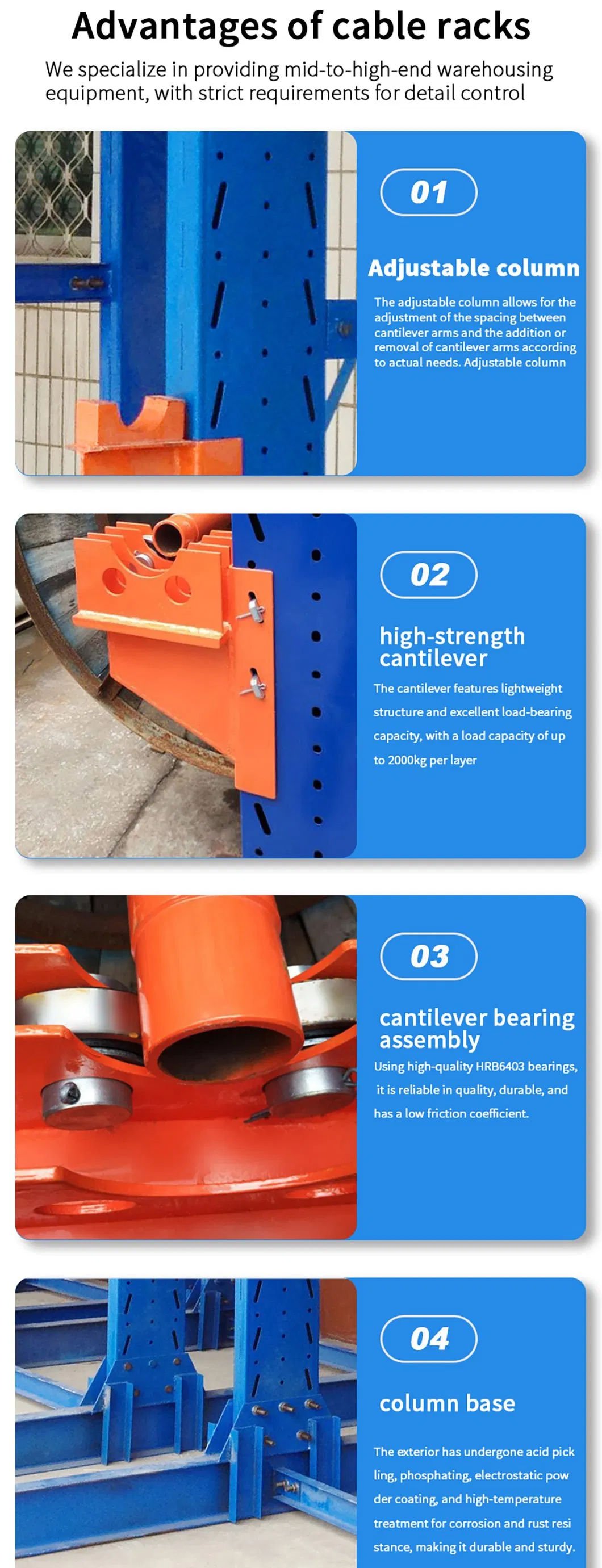

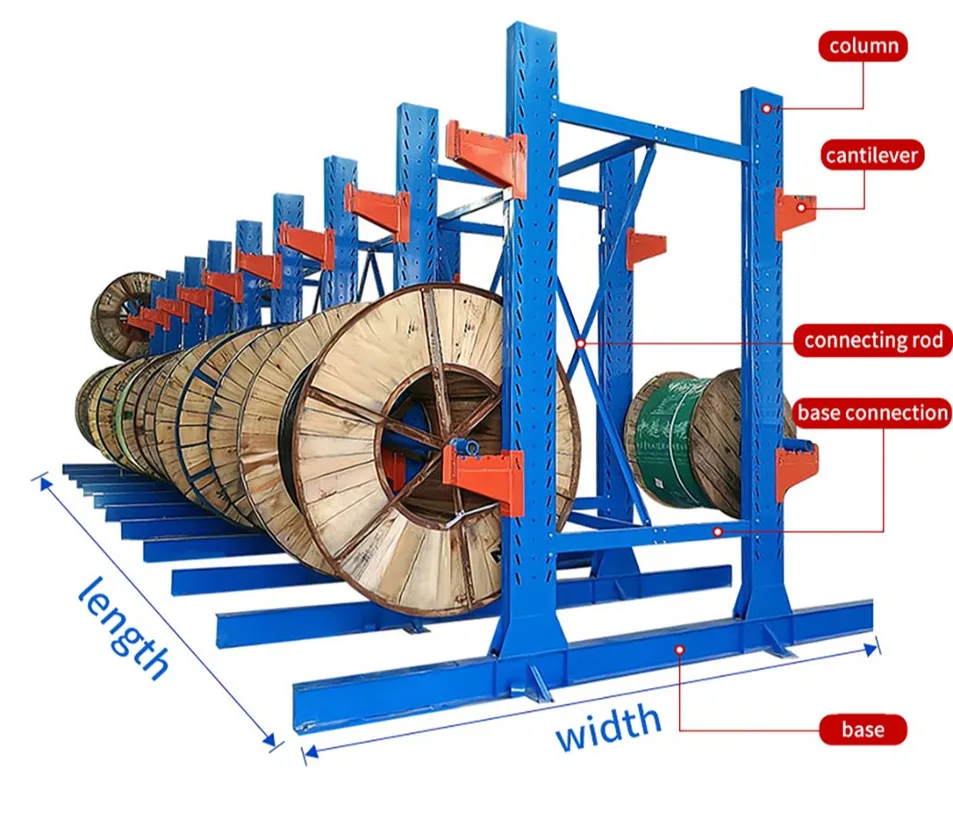

Detailed Technical Drawing of Cable Drum Racking Structure

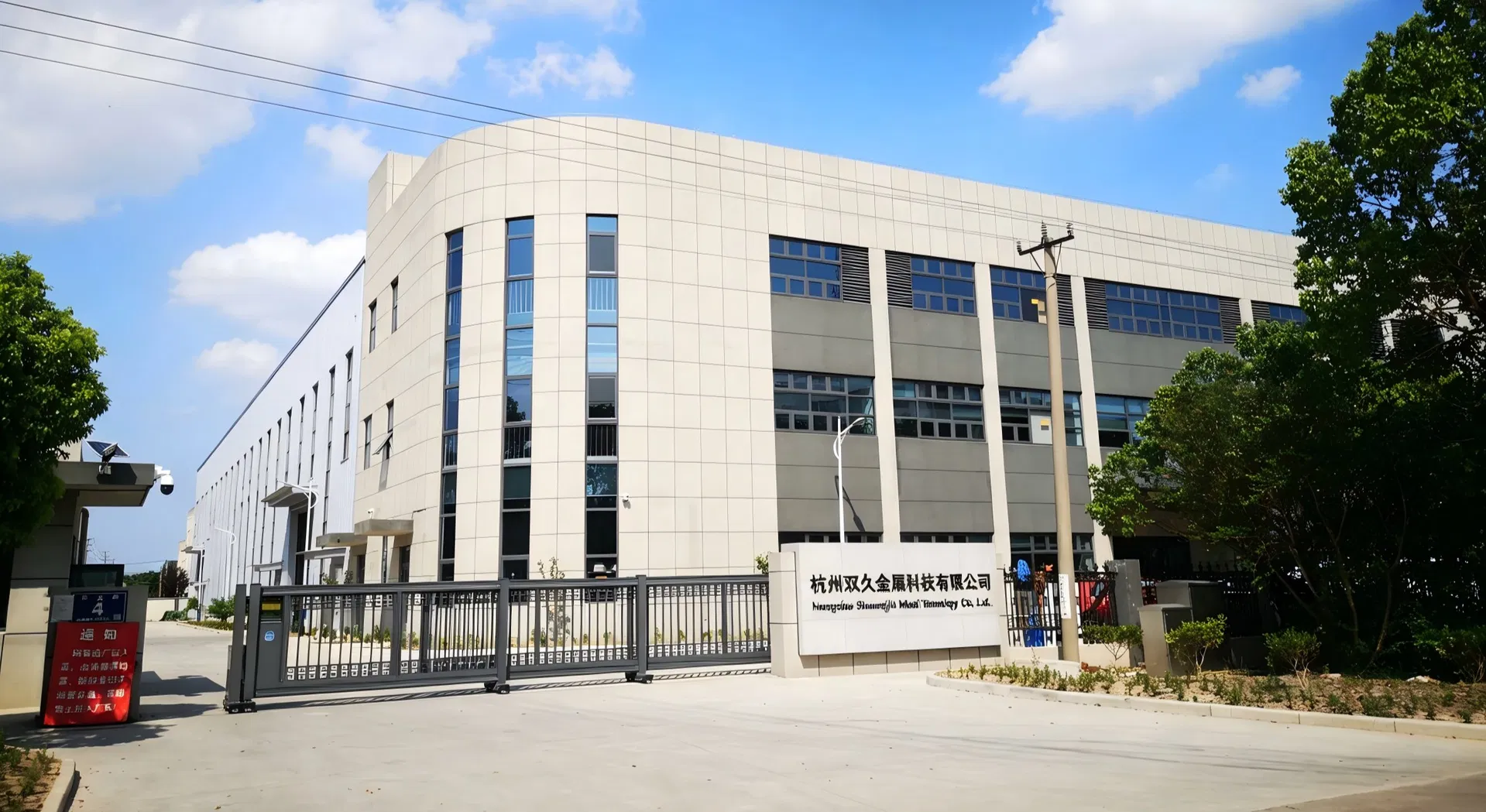

Company Profile

We are not a trading company. We are a real factory with our own production base and an experienced design and manufacturing team.

As one of the earliest companies in China engaged in logistics equipment R&D and manufacturing, we have focused on one thing for over a decade: building durable, reliable steel storage equipment and workshop furniture for factories and warehouses across all industries.

What We Can Do

Planning and design for factory logistics projects
Manufacturing and supply of all types of storage equipment and workshop furniture
Customized products and non-standard design and manufacturing
Precision sheet metal fabrication

Product Range

Storage Equipment: Selective Pallet Racking, Drive-In Rack, VNA Rack, Gravity Flow Rack, Cantilever Rack, Mold Storage Rack, Mezzanine Floor, Steel Platform, AGV Compatible Rack, CTU Rack, Sheet Metal Drawer Rack, Cable Drum Rack
Workshop Furniture: Tool Cabinet, Workbench, Fitter Bench, Material Rack

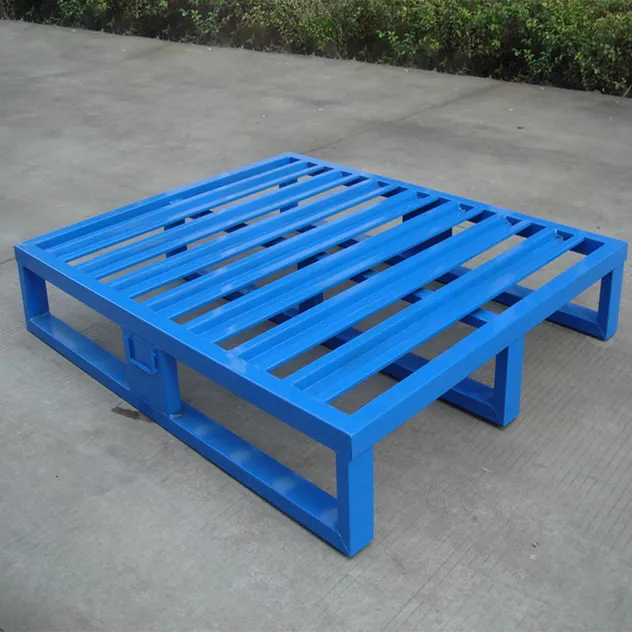

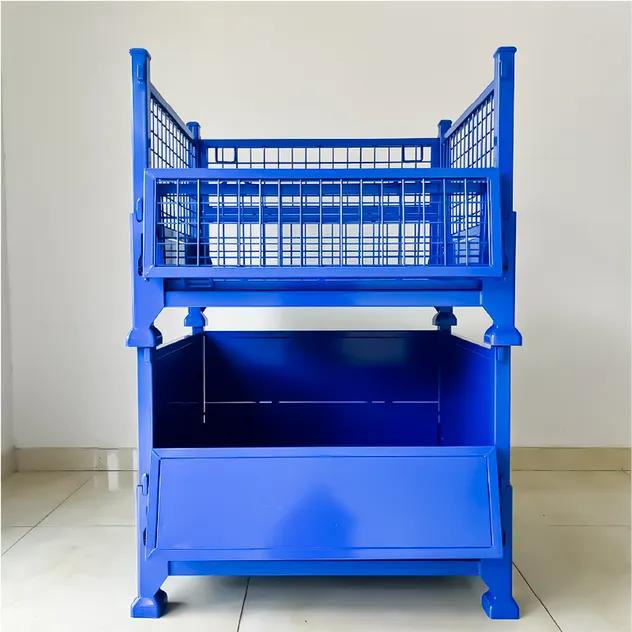

Unitized Storage & Handling Equipment: Steel Pallet, Stacking Rack, Wire Mesh Container
Workshop Safety & Cleaning Equipment: Guardrail, Safety Barrier

Industries We Serve

Automotive and auto parts manufacturing
Electronics, electrical, optoelectronic and semiconductor manufacturing
Machinery and engineering manufacturing
Biomedical and pharmaceutical manufacturing
Schools, research institutes, and training centers

Certifications

Exhibition

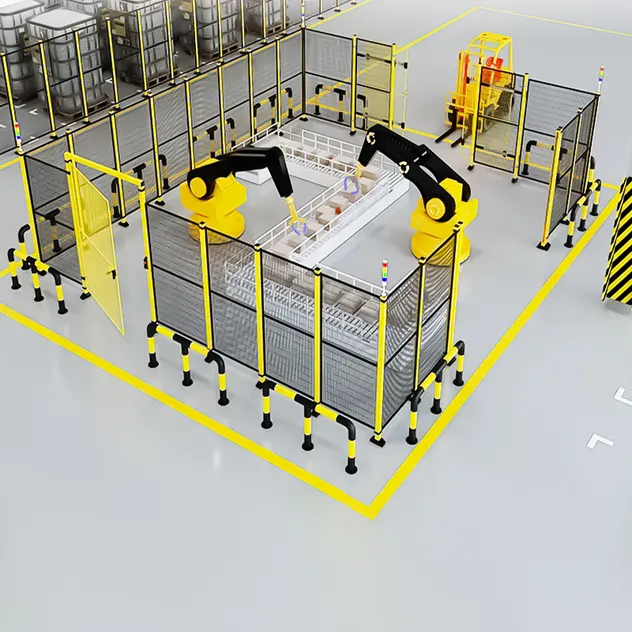

Complementary Products

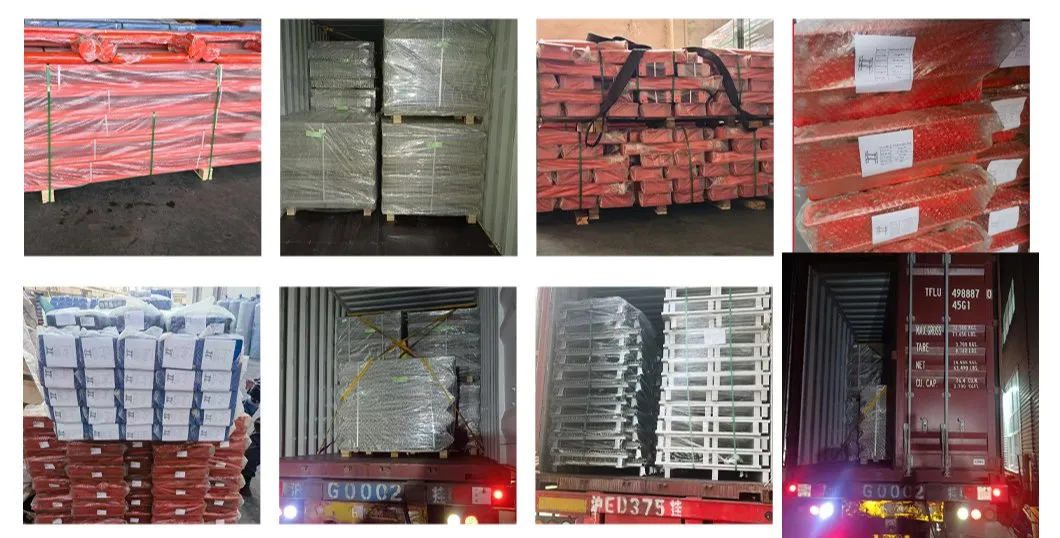

Packaging & Shipping

Packaging and Container Shipping Preparation

Frequently Asked Questions

Q1 Are you a factory or trading company?

We are a manufacturer with our own production factory.

Q2 What are your payment terms?

We accept T/T (50% deposit, 50% before shipment) and L/C at sight.

Q3 What material do you use for your products?

Our standard material is Q235 steel. Q355 and other steel grades are also available upon request.

Q4 Which port do you usually use for shipment?

We usually ship from Shanghai Port. Ningbo Port is also available as an alternative.

Q5 What is your delivery lead time?

For standard products, our delivery time is 15-20 days. For customized orders, lead times depend on the specific quantity and requirements.

Q6 Do you accept non-standard custom orders?

Absolutely. Customization is our key expertise. Simply send us your layout drawings or design specifications, and we will custom-manufacture it for you. Free CAD design service is included.
