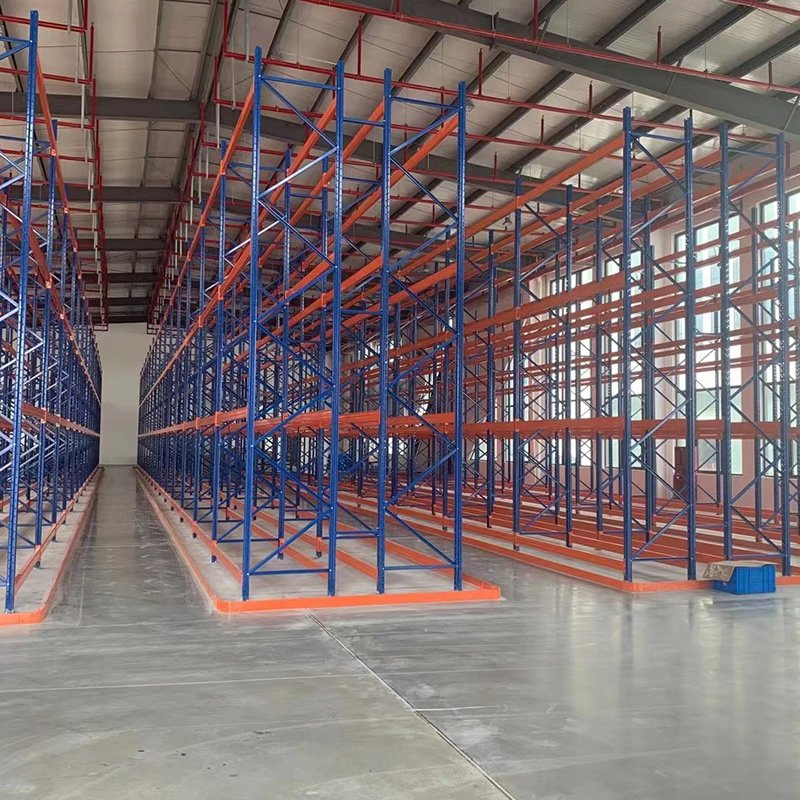

Stable Structure Flexible Heavy Duty Adjustable Rack Very Narrow Aisle Pallet Racking

Customization:	Available
After-sales Service:	Avaliable
Warranty:	One Year

Overview

Basic Info

Usage

Industrial, Warehouse Rack

Material

Q235B

Structure

Steel Structure

Type

Pallet Racking

Mobility

Adjustable

Height

>15m

Weight

500kg

Development

Conventional

Serviceability

Warehouse

Color

Blue and Orange, or as Request

Size

Customized Size

Surface Treatment

Powder Coated

Main Markets

Asia, America, Europe, Africa, Oceania

Application

Any Area Where Goods Need to Be Stored

Certification

CE

Customized

Other Special Size

Transport Package

Standard Export Package

Specification

Customized

Production Capacity

10000t/Year

HS Code

730890

Packaging & Delivery

Package Size

10.00cm * 10.00cm * 10.00cm

Package Gross Weight

1.000kg

Product Introduction

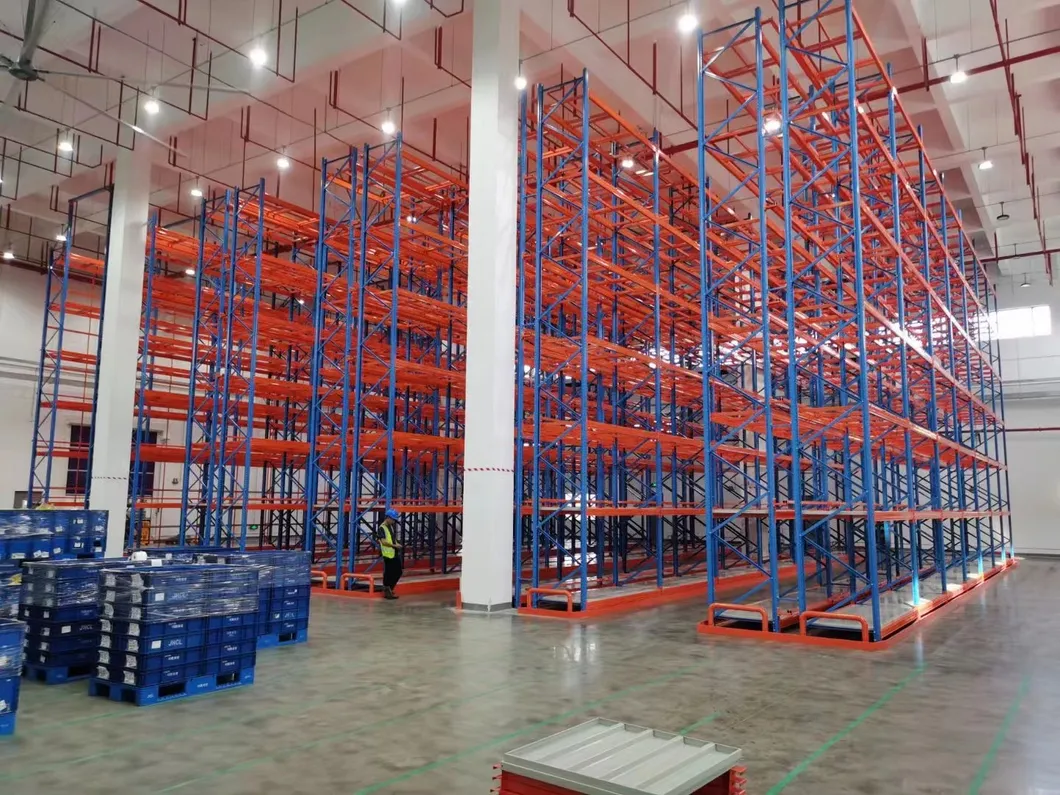

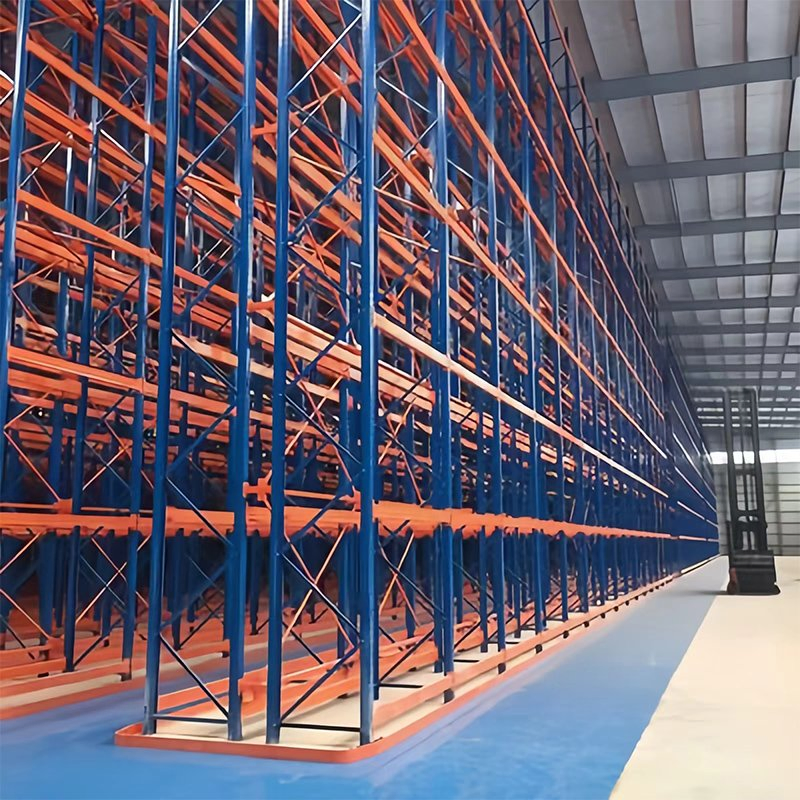

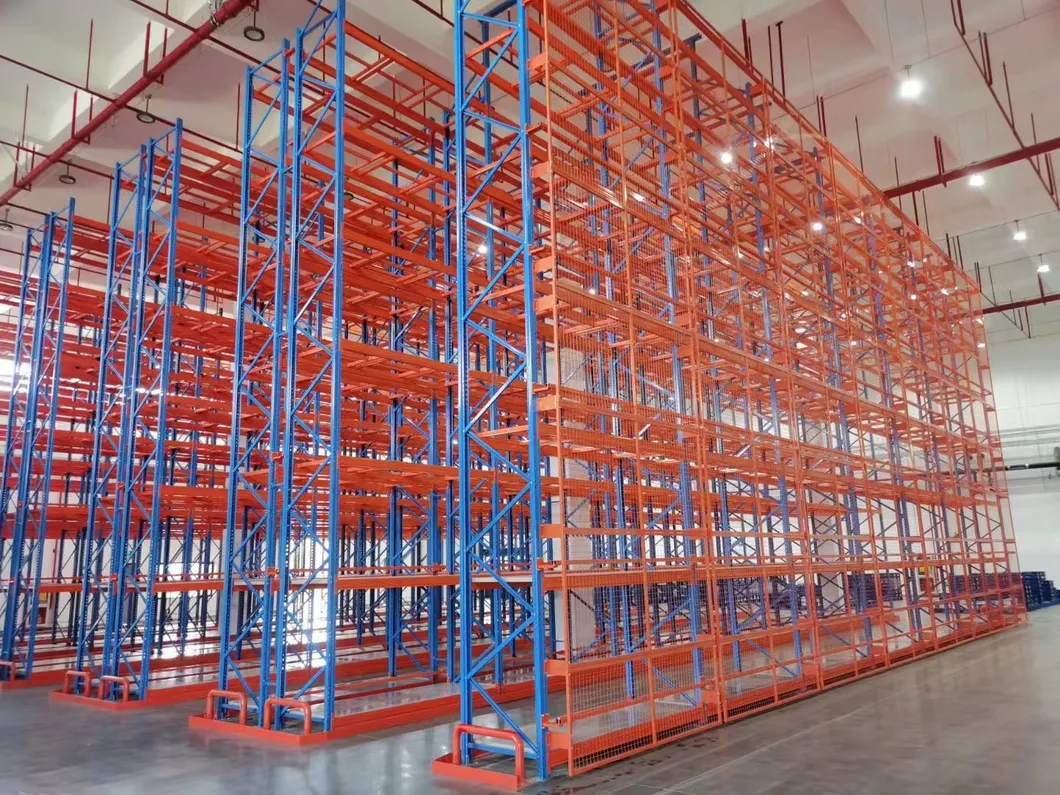

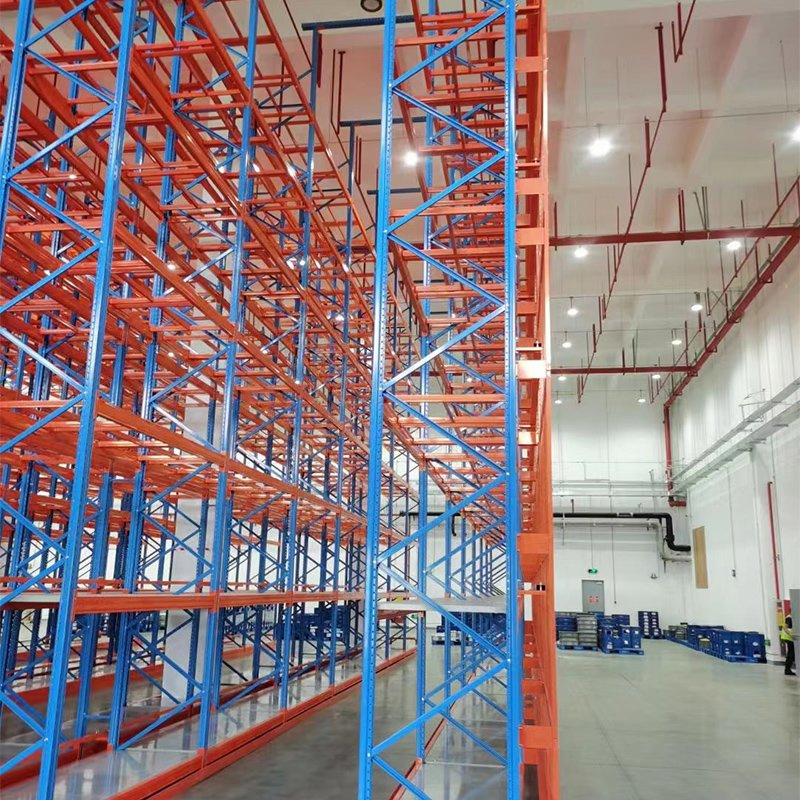

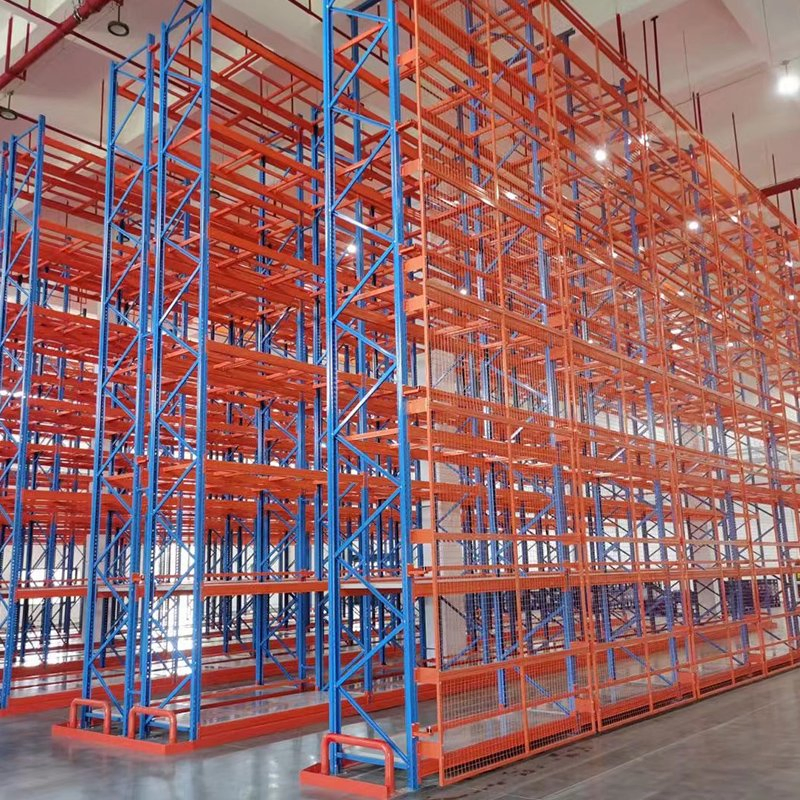

VNA (Very Narrow Aisle) Racking commonly referred to as VNA is an effective method of increasing pallet storage within a given area with the advantages of selective racking. This system requires a special forklift which reduces the aisle space by a minimum of 40% compared to traditional forklifts. This system still provides 100% product selectivity and utilizes the vertical space for pallet storage.

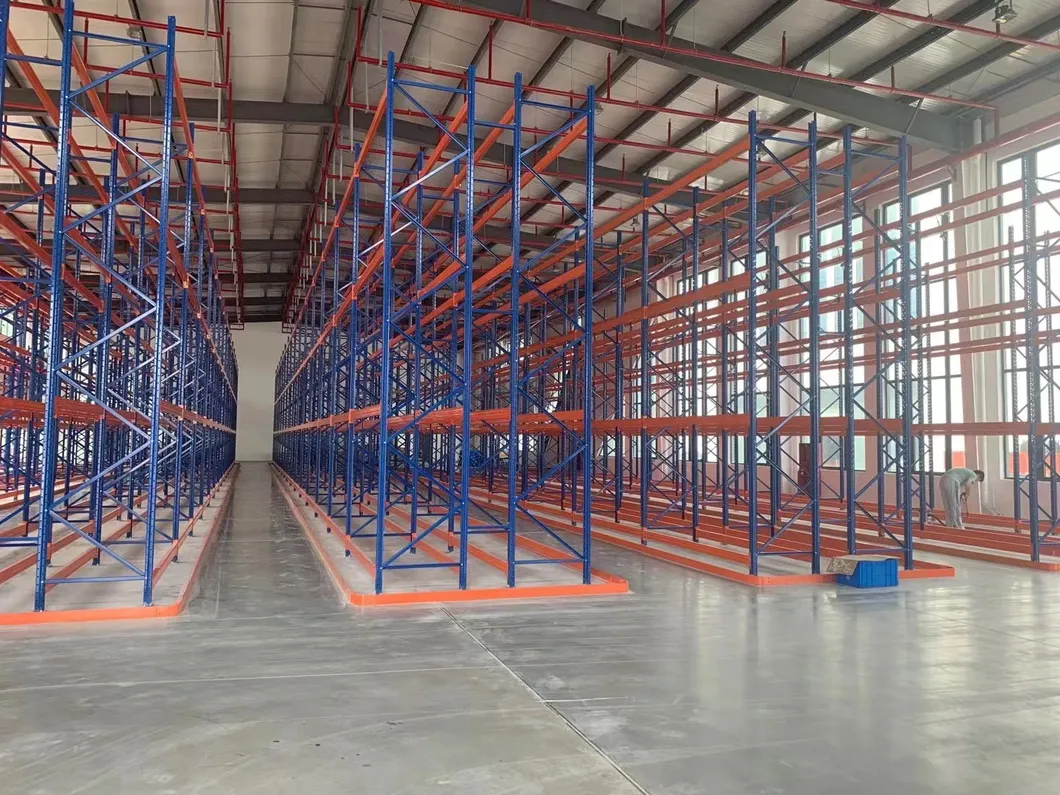

Extremely Narrow Aisles High Space Efficiency

Aisle width is only 1.6-2.2 meters (vs. 3+ meters for traditional racking), reducing aisle space by 30-50% and significantly improving floor utilization. Ideal for warehouses with high land costs or limited space. Racking height can reach 15-30 meters, leveraging vertical space for high-rise storage.

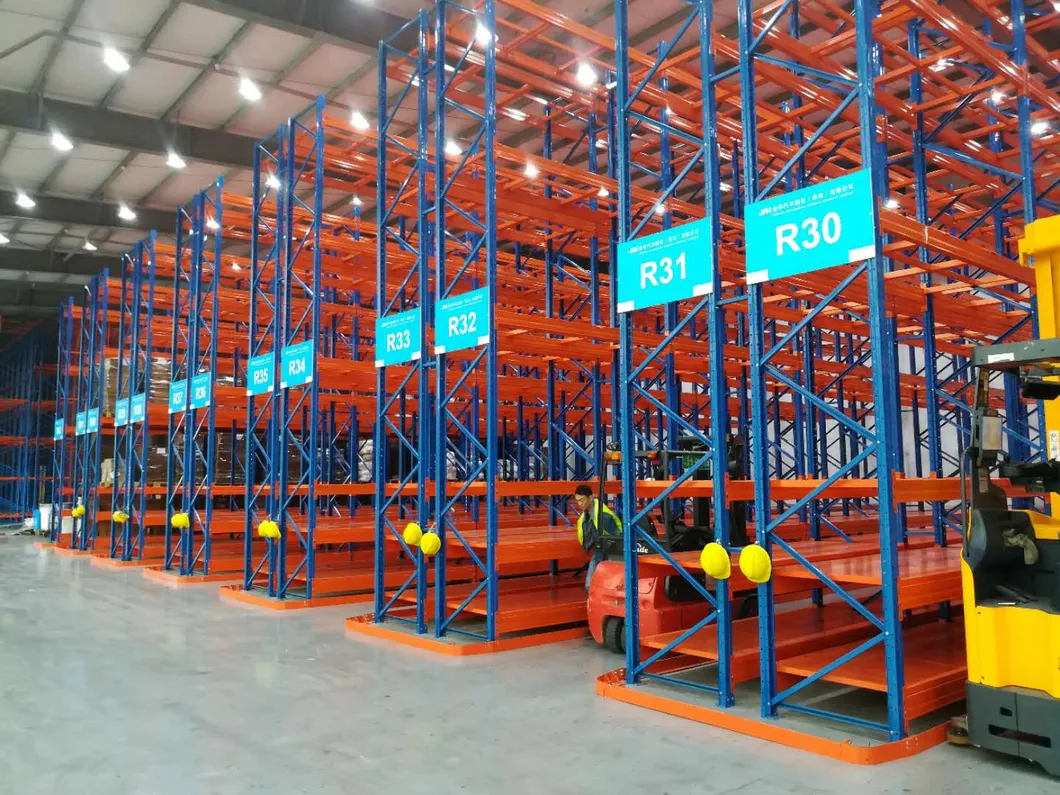

Balanced Density and Throughput

Combined with the precision of narrow-aisle forklifts, it achieves both high storage density and moderate-to-high inventory turnover, suitable for warehouses with medium-frequency access (e.g., e-commerce, manufacturing, cold chain).

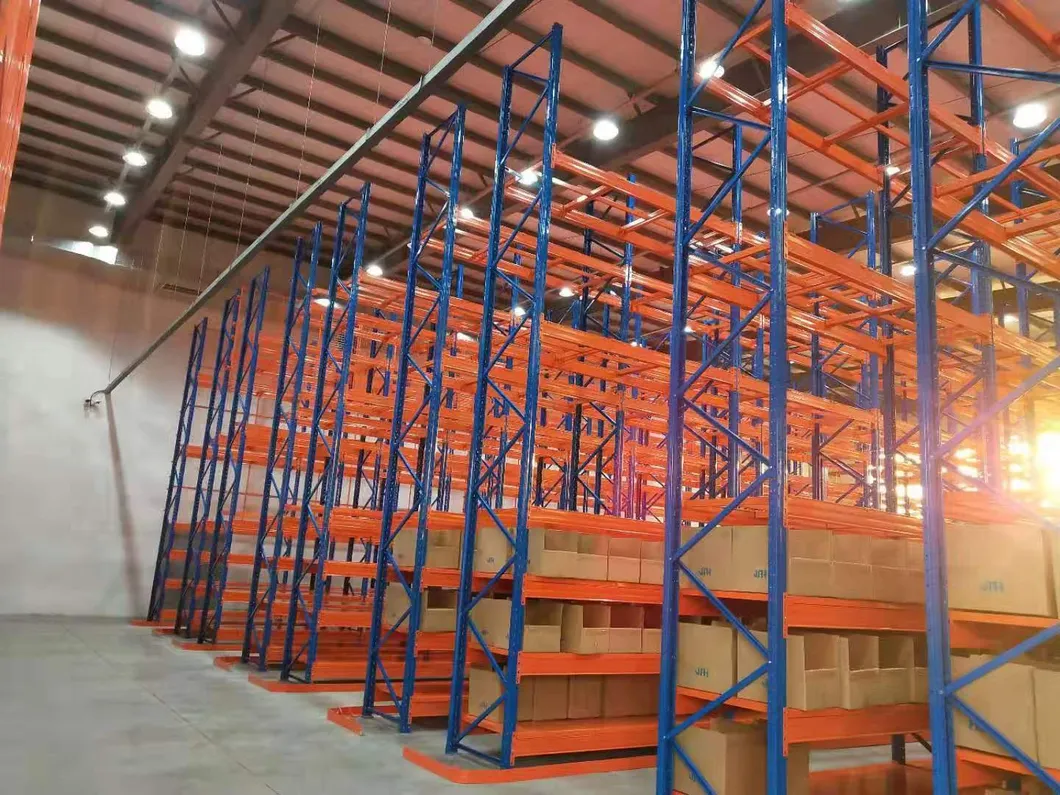

High Load-Bearing Capacity

Designed to handle heavy loads. Each beam can typically support several tons of weight, making it suitable for storing large and heavy pallets filled with goods. This high load-bearing capacity ensures the safety and stability of the stored items.

Product Parameters

Parameter	Details
Size	Size can be customized as your request
Layers	Customizable
Loading Capacity	1000~6000kgs or 2200~13200lbs
Surface Treatment	Powder coated
Packaging	Air bubble, Wooden Case, etc.
Color	Blue and Orange or Customized

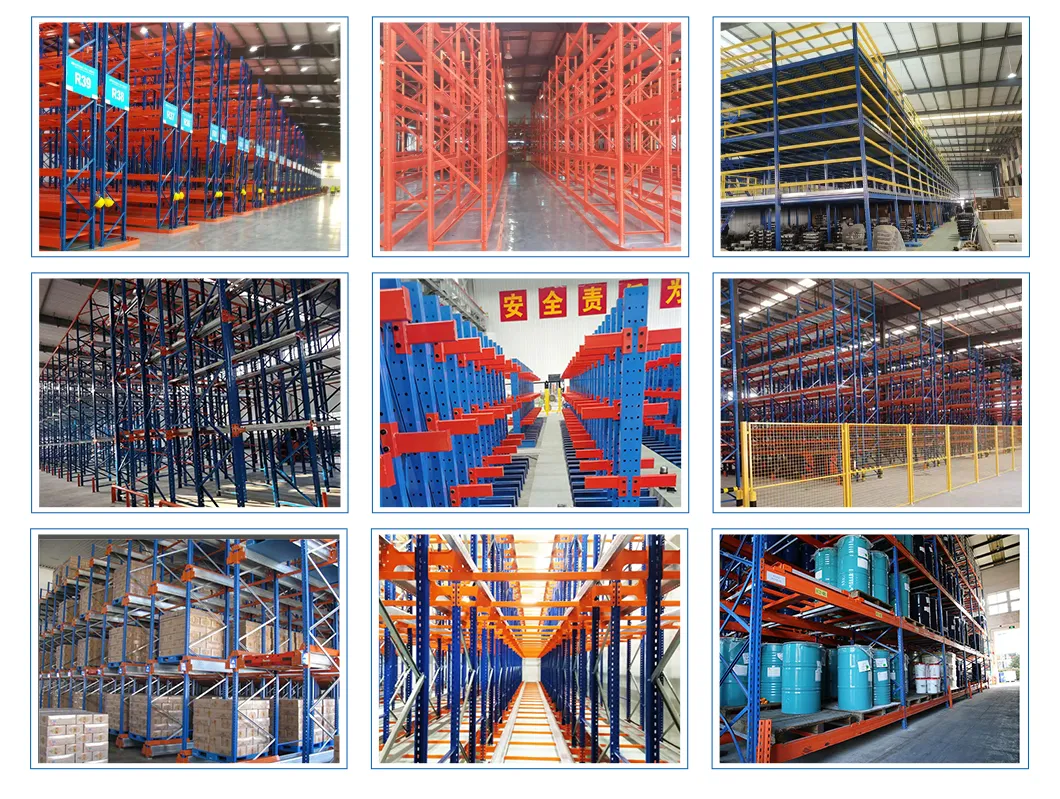

Main Product

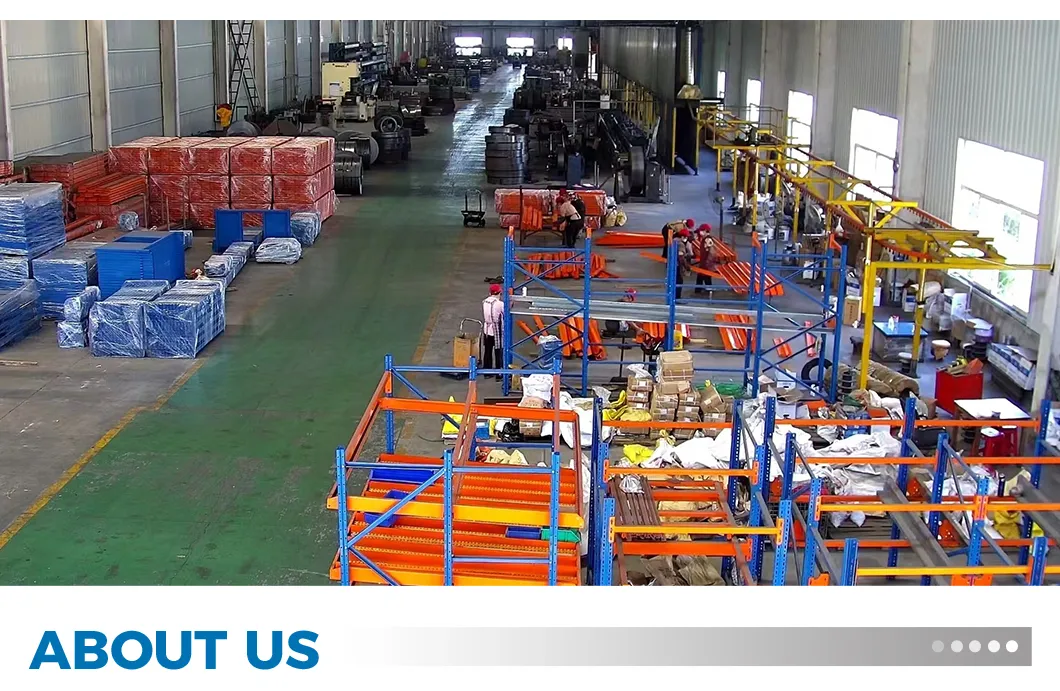

Company Profile

We are a large-scale manufacturer specializing in the research, development, design, manufacturing and installation of modern logistics equipment. The company is able to independently design and produce a variety of logistics equipment, such as storage racks (pallet racks, movable pallet racks, mobile racks, multi-layer racks, cantilever racks, drive-in racks), pallets (flat pallets, box pallets, foldable pallets), mountain bikes and storage boxes, etc. With high-quality products, reasonable prices and attentive services, we have established a reliable reputation among our customers.

Company Advantage

Our Certificate

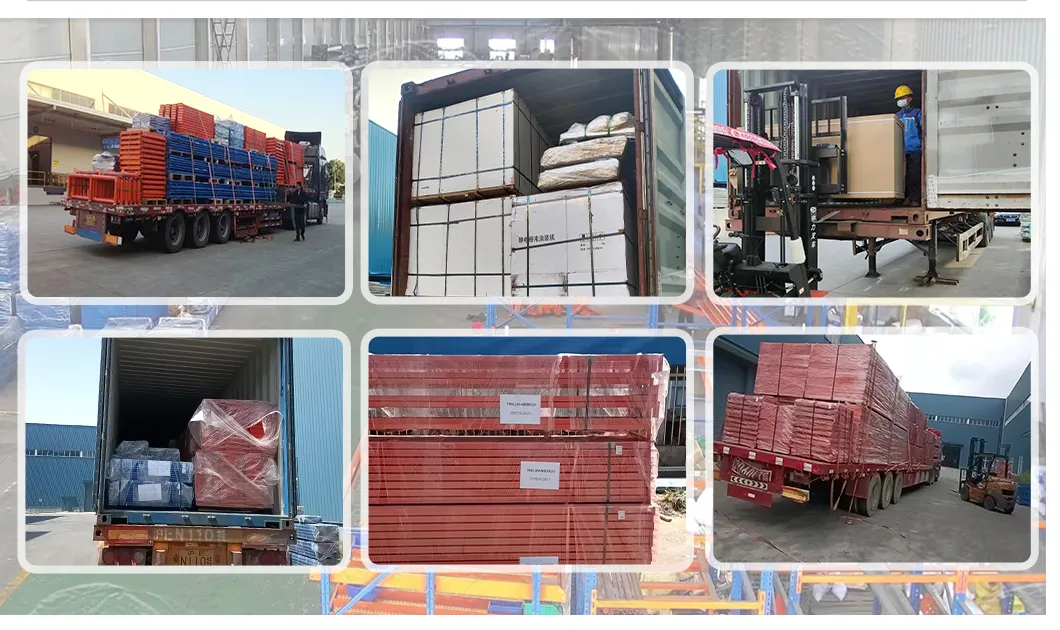

Packaging & Shipping

FAQ

How long is your delivery time?

The delivery time depends on your package. Generally, it takes 25 - 45 days. Based on the quantity, we will calculate the most reasonable and fastest production and delivery time. Please contact our sales for the most accurate advice.

What do you need to provide for a product quotation?

For a product quotation, we need the length, width, height, number of layers, and load capacity of the product.

What products do you export?

Our main export product lines include heavy-duty pallet racking, narrow aisle racking, cantilever racking, double-deep racking, drive-through racking, shuttle racking, steel structure platform racking, push-back racking, and gravity racking.

What are the product advantages?

1. The raw material of the square tube products is made of galvanized base material and then coated with plastic to provide double protection against rust and surface peeling. Internal galvanization eliminates the possibility of internal rust.
2. Additional backup screw holes are added at the connection between the column and the claw to increase the load-bearing capacity and enhance safety.
3. The column claws are made of extra-thick Sphc material to increase load-bearing capacity and safety.

Can you produce according to the customer's design?

Of course, we have extensive experience in customizing shelves according to specific layouts and specifications.

What is the packaging method?

Generally, the shelves are flat-packed in standard export cartons with bubble wrap/film. Other packaging such as wooden crates can be provided upon customer request.
